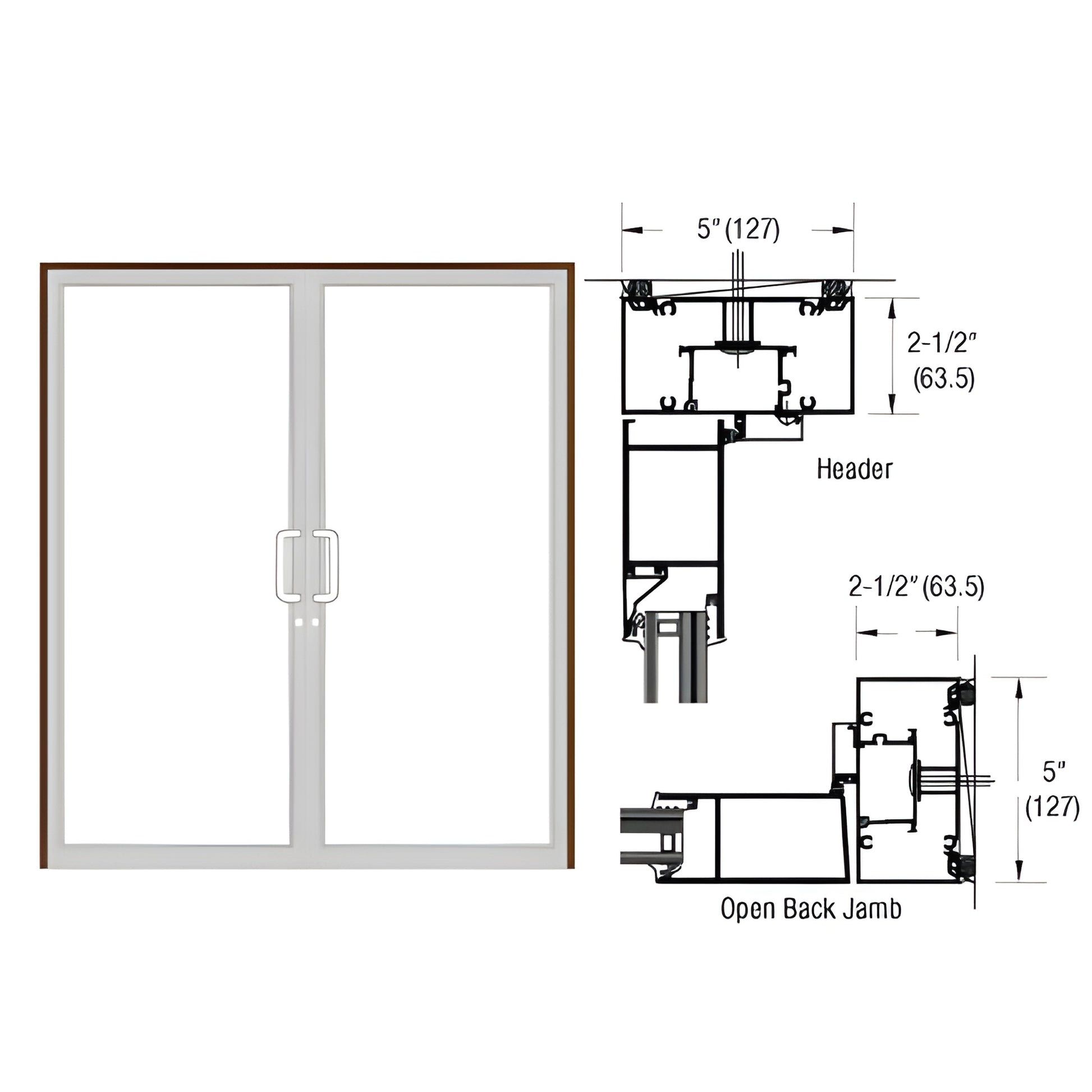

CRL-U.S. Aluminum Dark Bronze/Black Anodized Class 1 IG600 Series Custom Up/Over Butt Hinge Two Door Frames

Product Details

• 2-1/2" x 5" (63.5 x 127 mm) Butt Hinged Impact Door Frame
• Prepped for Standard Flush-bolt Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold
• Prepped for 1-1/2 Pair of Butt Hinges (Not Included)

This Custom Double Up/Over Door Frame is built to accommodate a pair butt hinged hurricane impact doors for using 1-5/16" (33 mm) laminated impact glazing, surface mount closer, constructed using IG626/IG146/IG147 door jambs, IG668 with weal IG146/IG147 header, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, standard flushbolt strike.

When installing hurricane impact product always refer to FPA Guidelines.
