CRL-U.S. Aluminum DF800 39.5x126 Clear Anodized Gear Hinge Transom
CRL-U.S. Aluminum DF800 39.5x126 Clear Anodized Gear Hinge Transom
Regular price
$1,371.31 CAD
Regular price
Sale price
$1,371.31 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD31811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

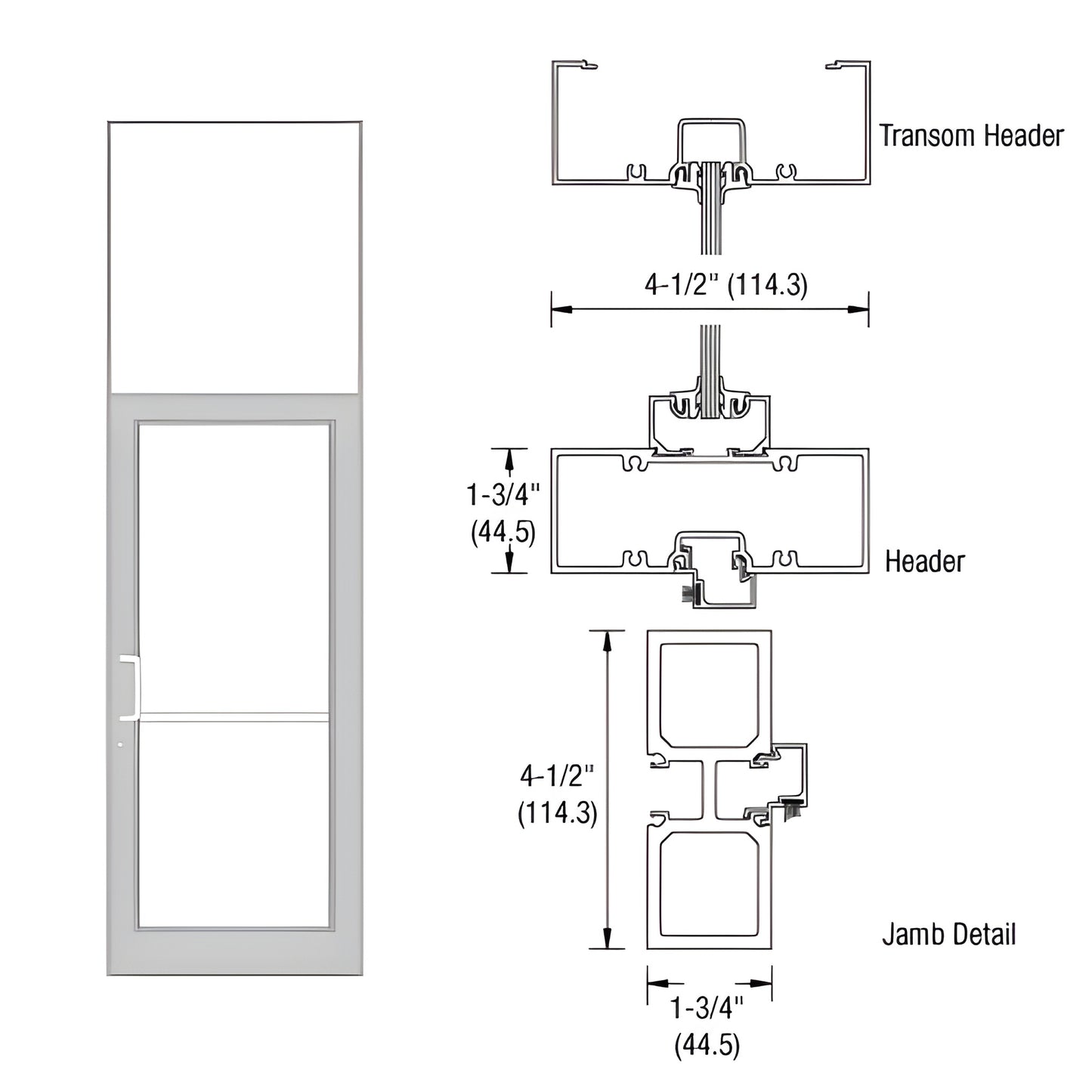

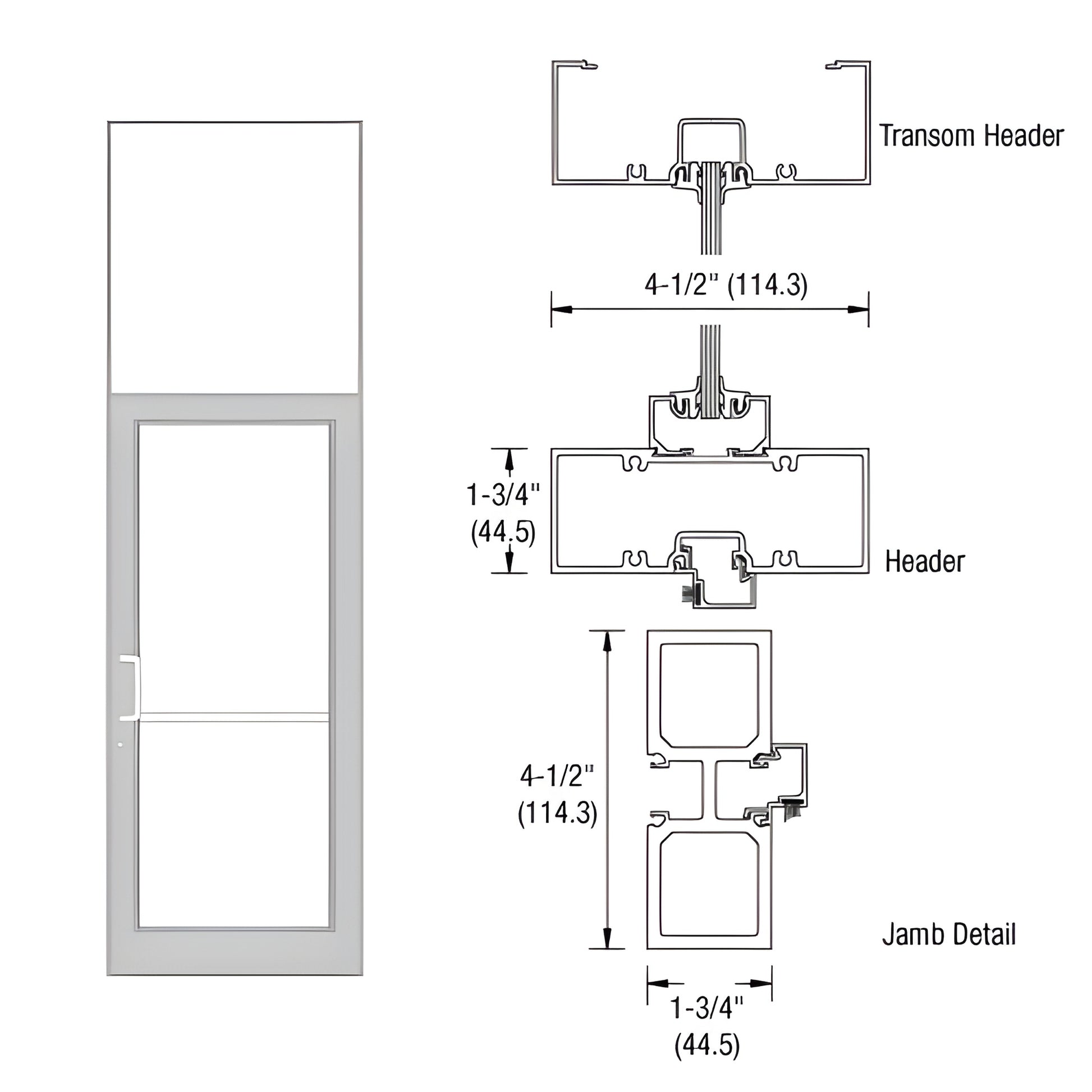

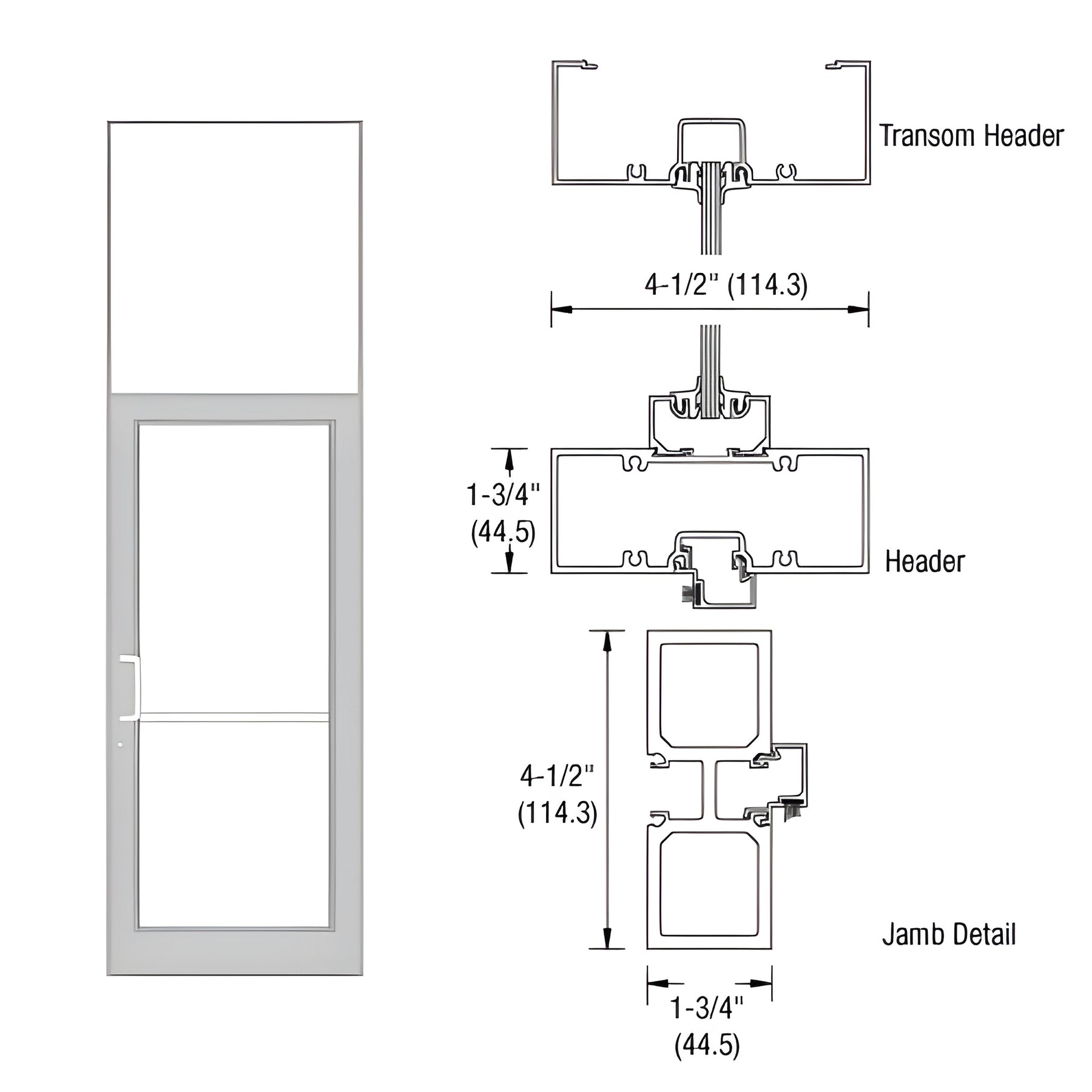

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) transom frame with JS455 tubular jambs
- 39-1/2" x 126" (1.0 x 3.2 m) base frame outside dimensions
- 36" x 84" (0.9 x 2.1 m) door opening for a 36" x 84" gear hinge door
- Aluminum threshold included
Complete Frame built to accept a 36" x 84" gear hinge door for a surface-mount closer, constructed with JS455 tubular jambs and JS467 header. Includes door stops, weatherstrip, standard hardware, and hardware preparation for quick installation.
All fasteners for frame assembly, standard hardware, and hardware fabrication are included; customer supplies fasteners to anchor the frame to the opening. Note: frame widths under 39-1/2" (1.0 m) may not pass A.D.A. inspection.
SKU: FD31811
Designed for commercial entrances: aluminum transom frame with tubular jambs, prepped for hardware and a surface-mount closer. Order FD31811 or contact us for a quote.
