CRL-U.S. Aluminum DF800 40x86 Clear Anodized Tubular Gear Hinge Kit
CRL-U.S. Aluminum DF800 40x86 Clear Anodized Tubular Gear Hinge Kit
Regular price
$1,344.08 CAD
Regular price
Sale price
$1,344.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD41811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

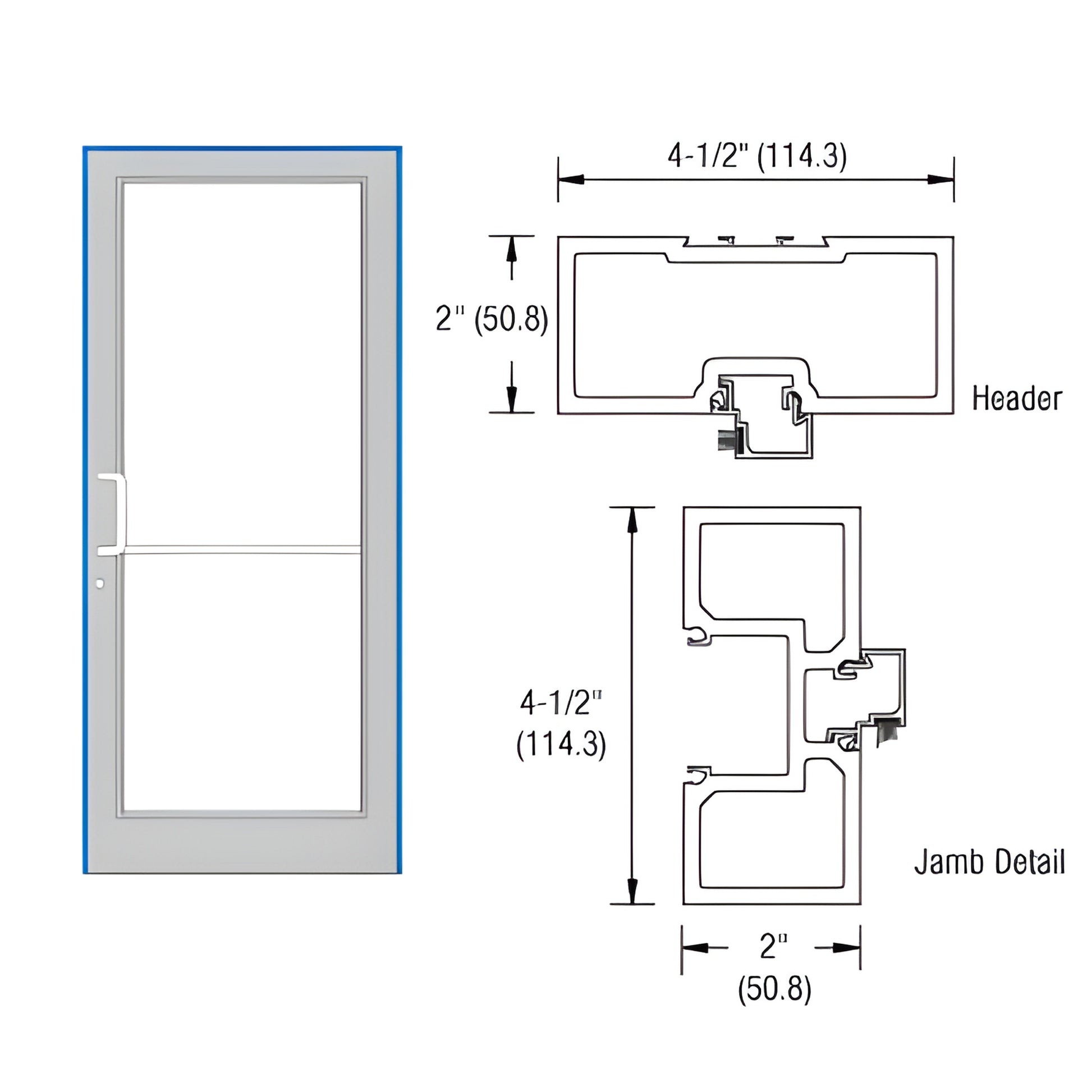

- 2" x 4-1/2" (50.8 x 114.3 mm) Up-and-Over Frame with Tubular Jambs
- 36" x 84" (0.9 x 2.1 m) door opening
- Aluminum threshold is included
- 40" x 86" (1.0 x 2.2 m) base frame size (outside dimensions)
Complete Frame (SKU: FD41811) is built to accommodate a base 36" x 84" Gear Hinge Door for a surface-mount closer. Constructed using 1H476 tubular jambs with a 1H457 header, the frame includes door stops, weatherstrip, standard hardware, and hardware preparations — a ready-to-install aluminum storefront frame solution with prepped hardware for faster jobsite installation.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection. Highlight: tubular jamb construction and included aluminum threshold improve durability and weather resistance for commercial entrance applications.
Order FD41811 today to get a prepped, durable aluminum frame ready for commercial installation.
