CRL-U.S. Aluminum DF800 40x86 Gear Hinge Up-and-Over Frame KYNAR®
CRL-U.S. Aluminum DF800 40x86 Gear Hinge Up-and-Over Frame KYNAR®
Regular price
$1,481.51 CAD
Regular price
Sale price
$1,481.51 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD41871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

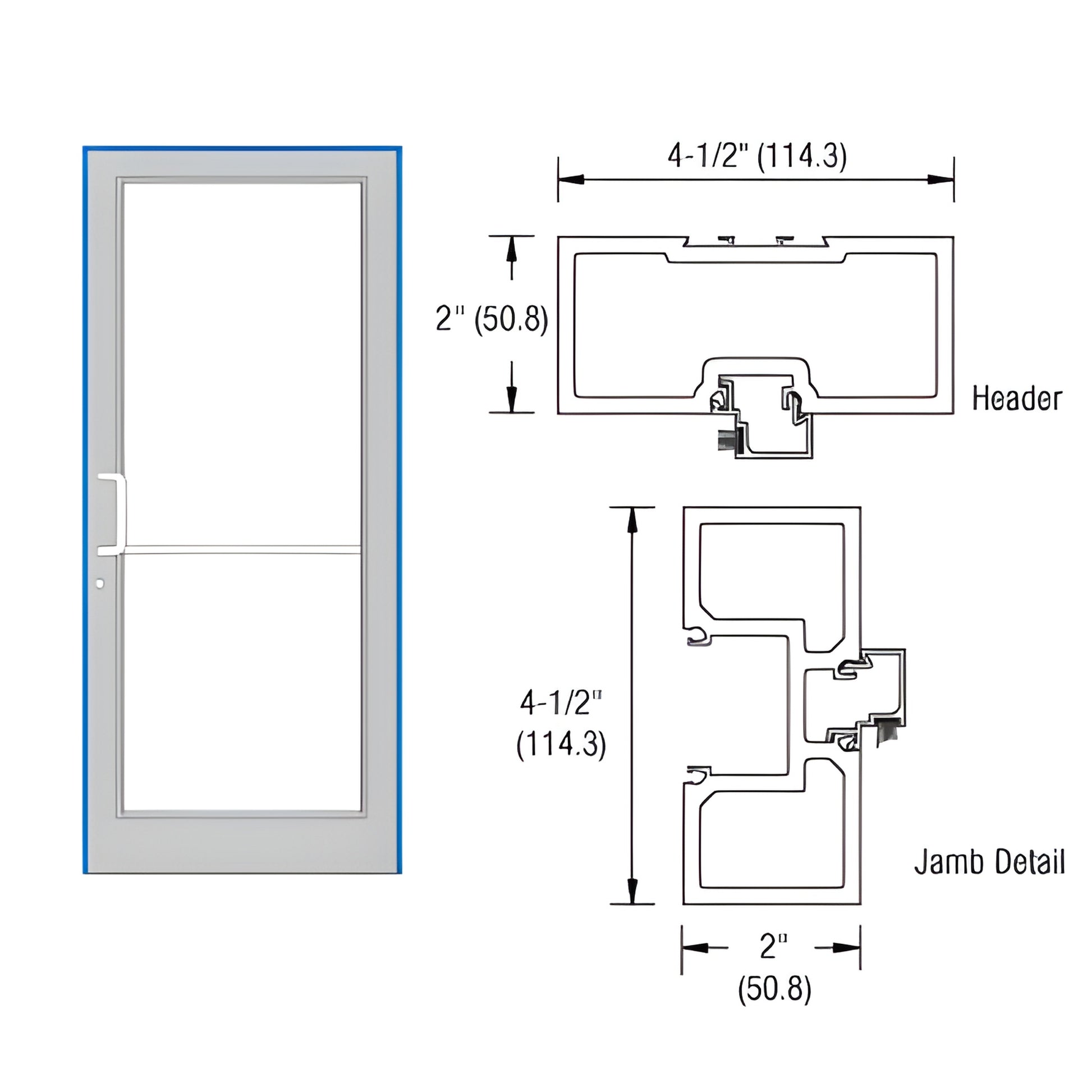

- 2" x 4-1/2" (50.8 x 114.3 mm) Up and Over Frame with Tubular Jambs
- 40" x 86" (1.0 x 2.2 m) base frame (outside dimensions)
- 36" x 84" (0.9 x 2.1 m) door opening
- Aluminum threshold included
Complete Frame (SKU: FD41871) is built to accommodate a base 36" x 84" Gear Hinge Door for a Surface Mount Closer. Constructed with 1H476 tubular jambs and a 1H457 header, the frame includes door stops, weatherstrip, standard hardware, and hardware preparations—ideal for commercial up-and-over door installations and retrofit projects.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection. Highlighted features: tubular jamb construction, aluminum threshold, and prepped hardware locations for faster on-site installation.
Order SKU FD41871 or contact us for a quote and installation guidance.
