CRL-U.S. Aluminum DF800 40x86 Up-Over Gear Hinge Dark Bronze/Black
CRL-U.S. Aluminum DF800 40x86 Up-Over Gear Hinge Dark Bronze/Black
Regular price
$1,410.91 CAD
Regular price
Sale price
$1,410.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD41822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

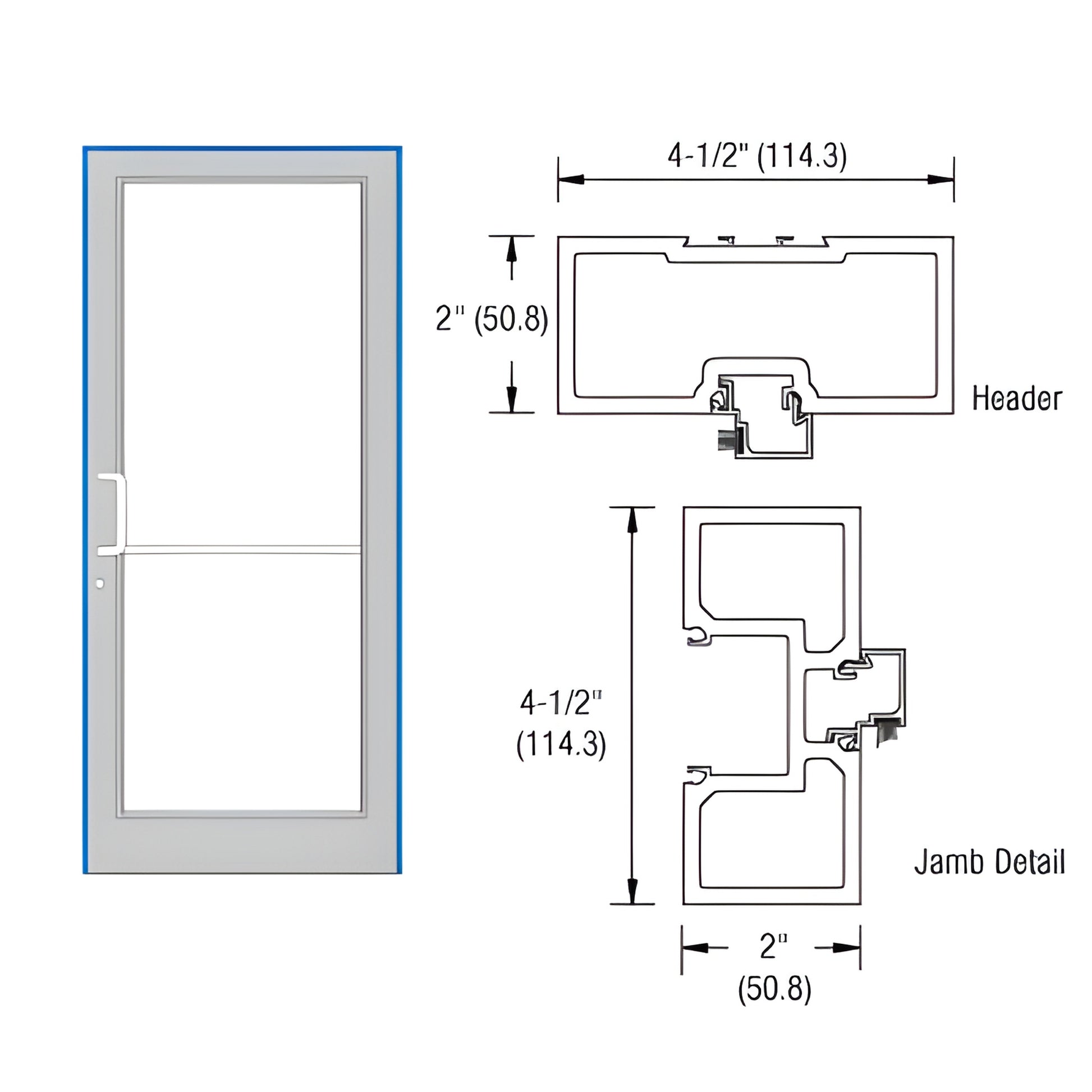

- 2" x 4-1/2" (50.8 x 114.3 mm) up-and-over frame with tubular jambs — durable aluminum construction for commercial openings
- 40" x 86" (outside dimensions) base frame size (1.0 x 2.2 m)
- 36" x 84" (0.9 x 2.1 m) door opening
- Aluminum threshold included
Complete Frame built to accommodate a base 36" x 84" gear hinge door for a surface-mount closer. Constructed with 1H476 tubular jambs and 1H457 header. Includes door stops, weatherstrip, standard hardware, and hardware preparations. All fasteners, standard hardware, and hardware fabrication for frame assembly are supplied; customer provides fasteners to attach frame to opening.
Note: Frame widths under 40" (1.0 m) may not pass A.D.A. inspection.
SKU: FD41822
Durable aluminum up-and-over frame with tubular jambs—ideal for commercial door openings requiring a ready-to-install frame. Order SKU FD41822 now to secure fast fulfillment.
