CRL-U.S. Aluminum White KYNAR® Paint 74" x 86" Series DF800 Open Back Gear Hinge Up and Over Frame Complete (2F)

Product Details

• 4" x 86" (1.9 x 2.2 m) Base Frame Size (Outside Dimensions)

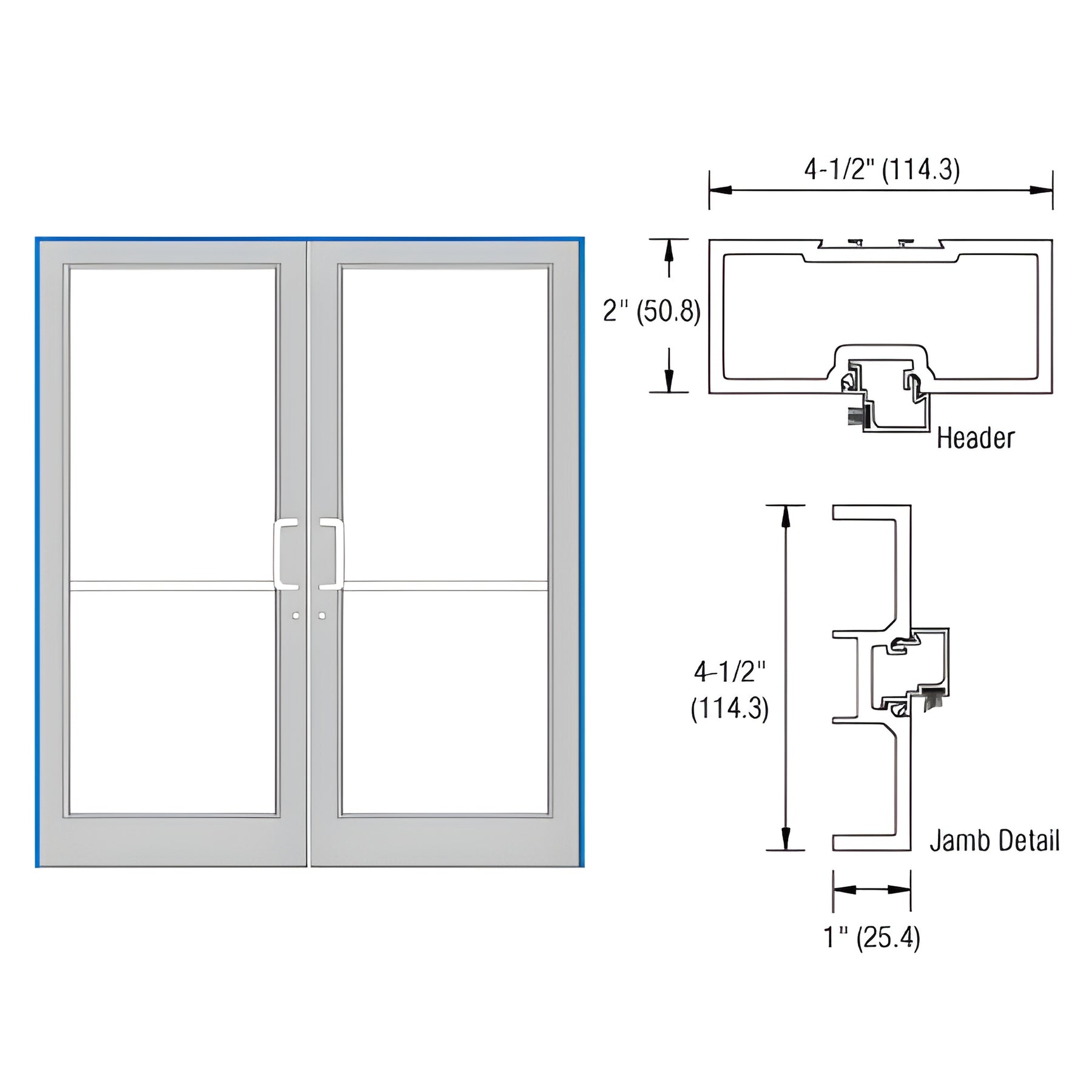

• 1" x 4-1/2" (25.4 x 114.3 mm) Up and Over Frame with Open Back Jambs
• 72" x 84" (1.8 x 2.1 m) Door Opening
• Aluminum Threshold is Included

Complete Frame is built to accommodate a base 72" x 84" Gear Hinge Door for a Surface Mount Closer, constructed using TJ455 Open Back Jambs with 1H457 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening.
