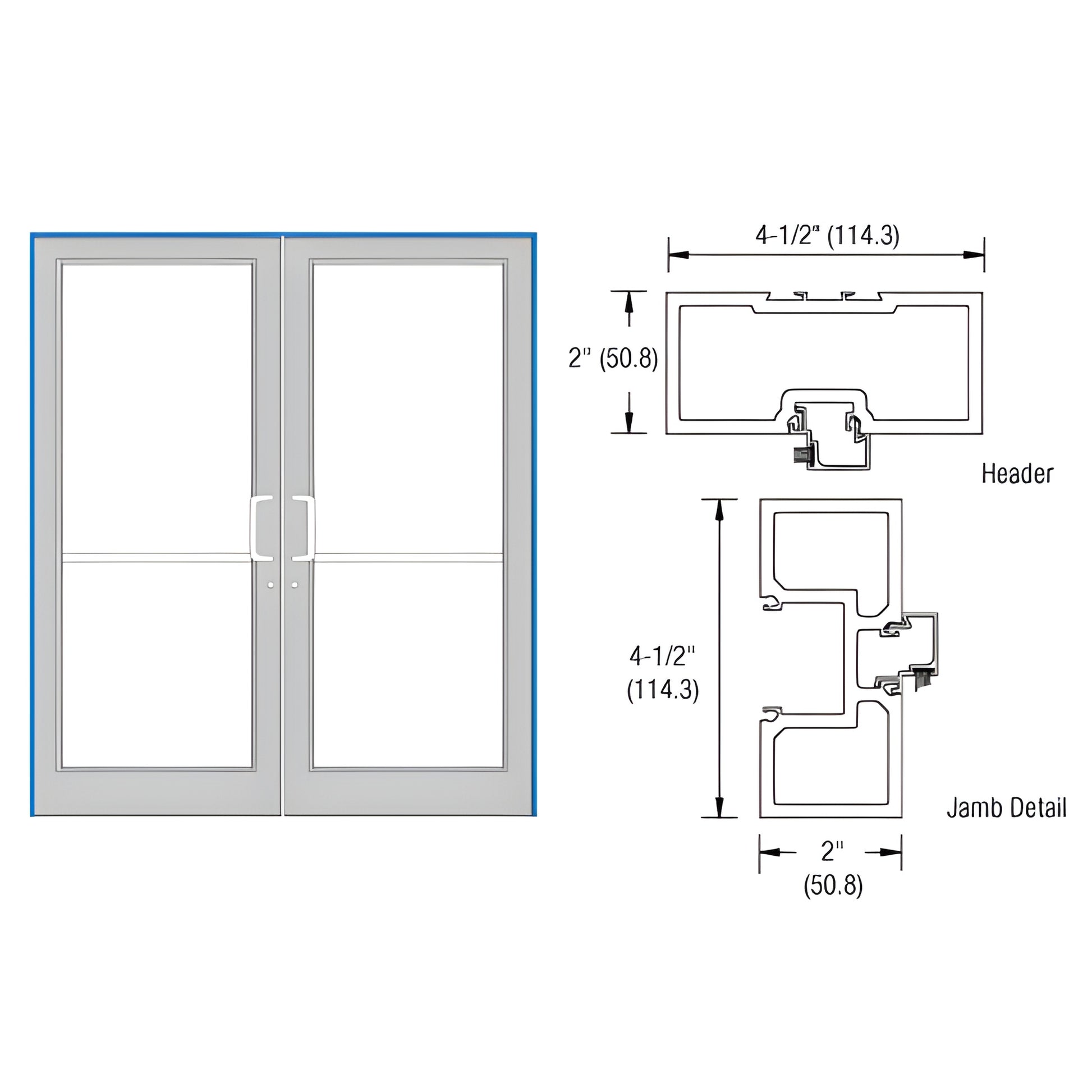

• FD42552 white Kynar aluminum double door frame, tubular jambs and header/jamb profile diagram for 72x84 opening
1 1

CRL

CRL-U.S. Aluminum DF800 76x86 White Kynar Up&Over Tubular Hinge Frame

CRL-U.S. Aluminum DF800 76x86 White Kynar Up&Over Tubular Hinge Frame

$1,678.34 CAD
$1,678.34 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FD42552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • 2" x 4-1/2" (50.8 x 114.3 mm) up-and-over frame with tubular jambs
  • 76" x 86" (1.9 x 2.2 m) base frame size (outside dimensions)
  • 72" x 84" (1.8 x 2.1 m) door opening for 72" x 84" butt hinge door
  • Aluminum threshold included

Complete Frame (SKU: FD42552) is engineered for a 72" x 84" butt hinge door with provisions for a surface mount closer. Constructed with 1H476 tubular jambs and 1H457 header, this aluminum up-and-over frame includes door stops, weatherstrip, standard hardware, and hardware preparation to simplify installation.

All fasteners for frame assembly, standard hardware, and hardware fabrication are included; the customer supplies fasteners to attach the frame to the opening. This product is ideal when you need a prepped aluminum frame for surface-mounted closers or retrofit applications.

Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to calculate costs, contact CRL Customer Service before placing your order. Product images are of the actual product or a close representation; colors may vary with monitor settings.


Order SKU FD42552 today for a ready-to-install aluminum up-and-over frame with tubular jambs.
