CRL-U.S. Aluminum DF800 Clear Anodized Tubular Gear Hinge 40x126
CRL-U.S. Aluminum DF800 Clear Anodized Tubular Gear Hinge 40x126
Regular price
$1,556.78 CAD
Regular price
Sale price
$1,556.78 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD61811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

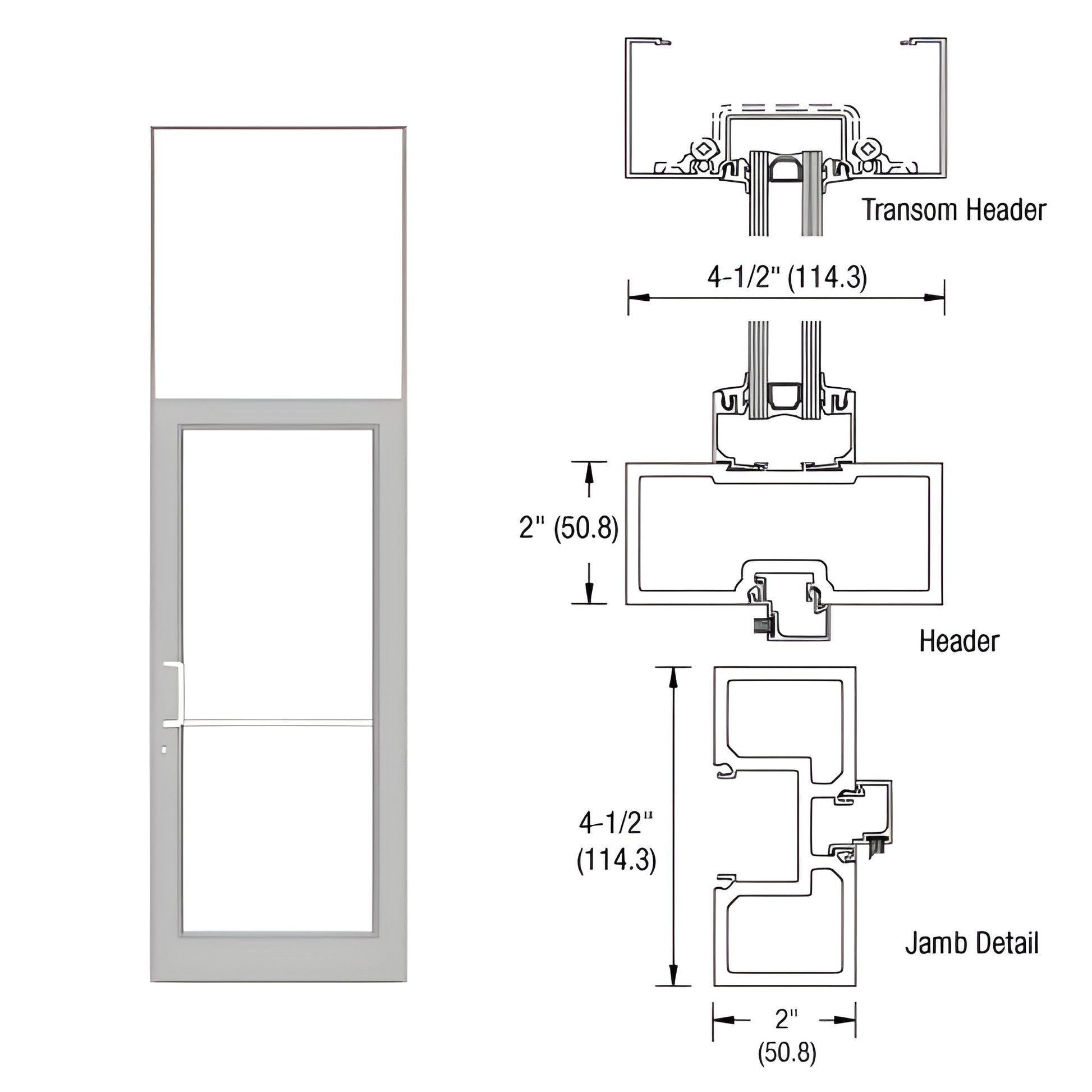

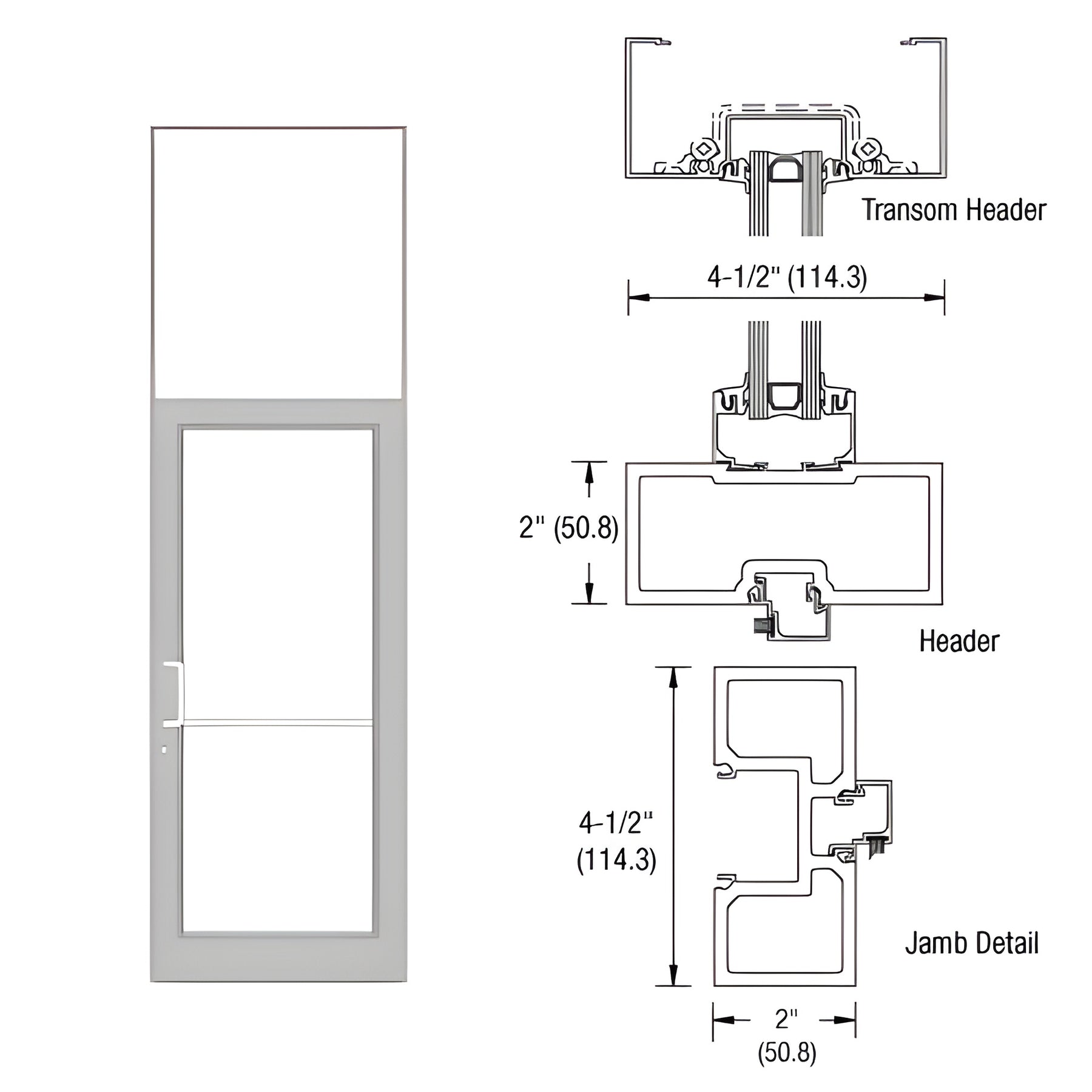

- 40" x 126" (1.0 x 3.2 m) base frame outside dimensions
- 36" x 84" (0.9 x 2.1 m) door opening for standard commercial door
- Aluminum threshold included
- 2" x 4-1/2" (50.8 x 114.3 mm) transom frame with 1H476 tubular jambs
- 1H457 header; constructed for a 36" x 84" gear hinge door with surface-mount closer
Complete aluminum storefront frame (SKU: FD61811) is prepped with door stops, weatherstrip, standard hardware and hardware preparations. All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Note: frame widths under 40" (1.0 m) may not meet A.D.A. inspection requirements.
Ideal for commercial entries requiring a prepped aluminum frame with threshold, tubular jambs, and hardware prep—order FD61811 or contact us to confirm fit and shipping.
