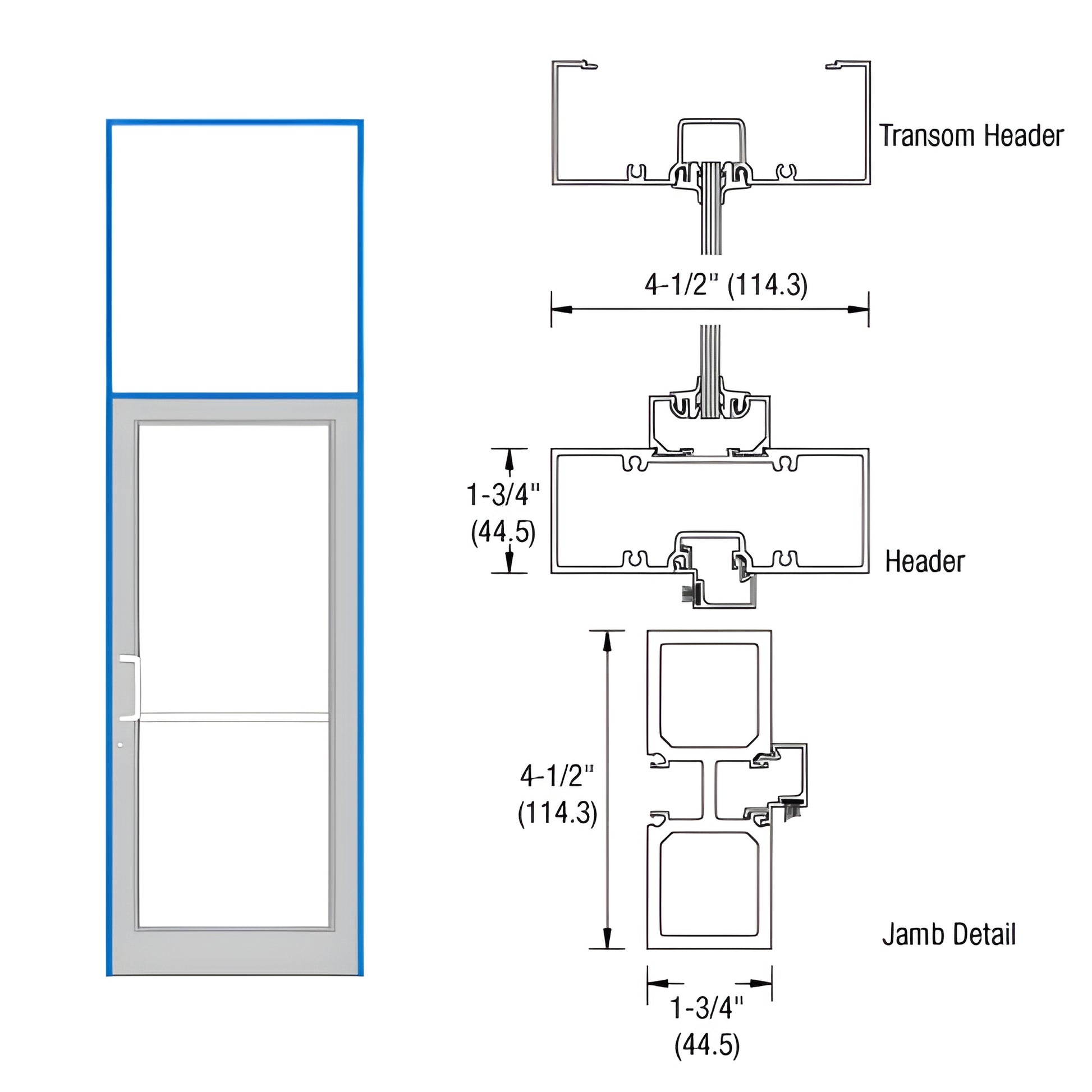

• FD31571 aluminum transom door frame with transom, 36 84 door opening, 391 2 126 base, 1-3/4" 4-1/2" jamb profile.
1 1

CRL

CRL-U.S. Aluminum DF800 Transom Frame 39-1/2" x 126" - Butt Hinge

CRL-U.S. Aluminum DF800 Transom Frame 39-1/2" x 126" - Butt Hinge

$1,557.82 CAD
$1,557.82 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FD31571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 1-3/4" x 4-1/2" (44.5 x 114.3 mm) transom frame with tubular jambs — corrosion‑resistant aluminum construction
  • 39-1/2" x 126" (1.0 x 3.2 m) base frame size (outside dimensions)
  • 36" x 84" (0.9 x 2.1 m) door opening — fits standard 36" x 84" butt hinge door
  • Aluminum threshold is included

Complete Frame (SKU: FD31571) is built to accommodate a 36" x 84" butt hinge door for a surface‑mount closer. Constructed using JH475 tubular jambs with JS467 header, the frame includes door stops, weatherstrip, standard hardware, and hardware preparation for fast, on-site installation. All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 39-1/2" (1.0 m) may not pass A.D.A. inspection.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Order the FD31571 aluminum transom door frame today for a durable, ready‑to‑install solution compatible with surface mount closers.
