CRL-U.S. Aluminum DF800 Transom Frame 75.5x126 KYNAR® Tubular Hinge

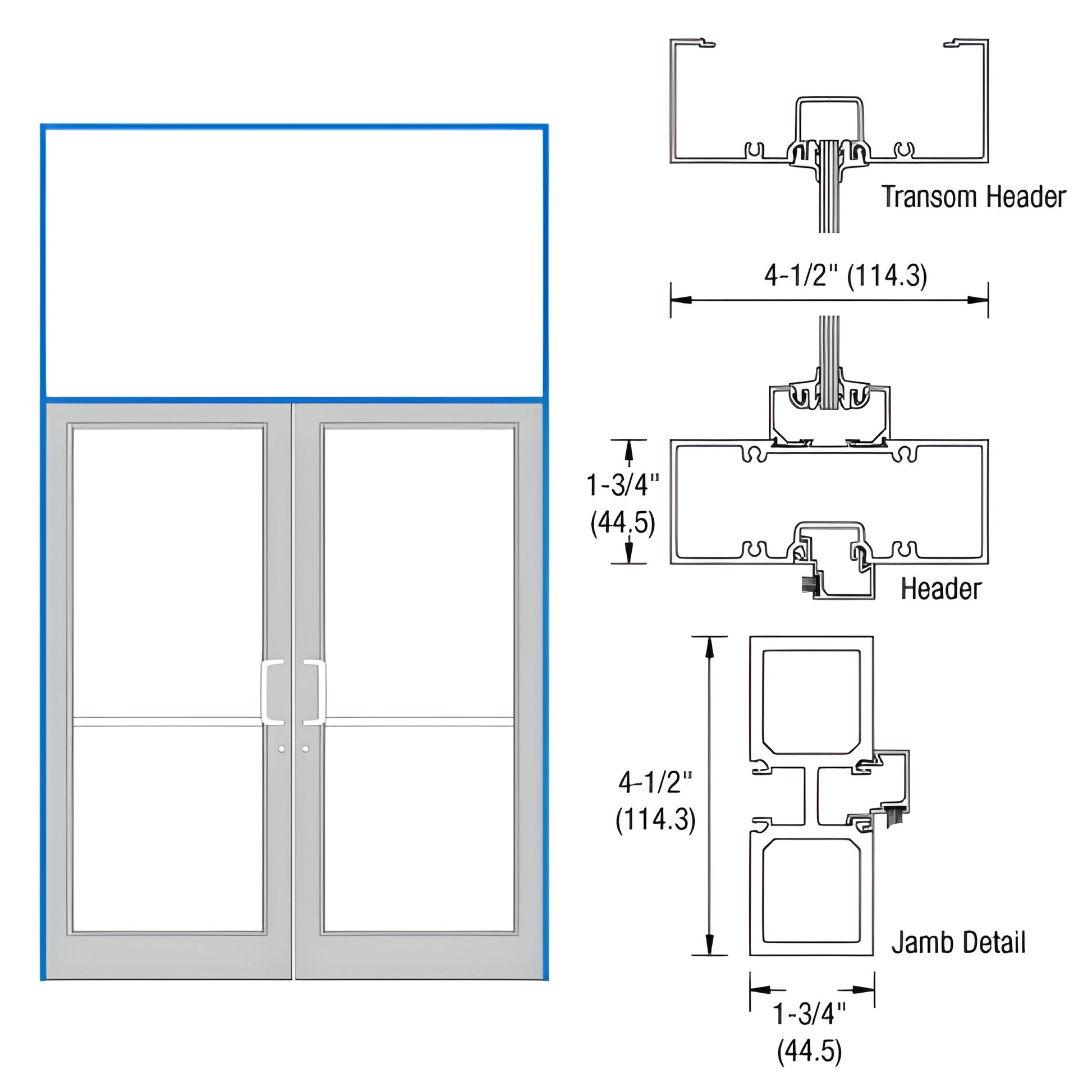

• 1-3/4" x 4-1/2" (44.5 x 114.3 mm) transom frame with JS455 tubular jambs — aluminum transom frame for commercial openings
• 75-1/2" x 126" (1.9 x 3.2 m) base frame size (outside dimensions)
• 72" x 84" (1.8 x 2.1 m) door opening — fits 72" x 84" gear hinge door for a surface mount closer
• Aluminum threshold is included

Complete Frame (SKU: FD32871) is built to accommodate a 72" x 84" gear hinge door for a surface mount closer. Constructed with JS455 tubular jambs and JS467 header, the frame includes door stops, weatherstrip, standard hardware and hardware preparation for quick installation. Ideal for commercial aluminum door openings and retrofit projects where a surface mount closer is required.

All fasteners, standard hardware and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. This product is a ready-to-assemble aluminum door frame with included weatherstrip and threshold for durability and ease of installation.

Order SKU FD32871 today for a ready-to-install aluminum transom frame solution — contact us to confirm availability or request exact shipping weight.
