CRL-U.S. Aluminum DF800 Tubular Gear Door Hinge 39-1/2x85-3/4 Clear
CRL-U.S. Aluminum DF800 Tubular Gear Door Hinge 39-1/2x85-3/4 Clear
Regular price
$1,270.13 CAD
Regular price
Sale price
$1,270.13 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD11811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

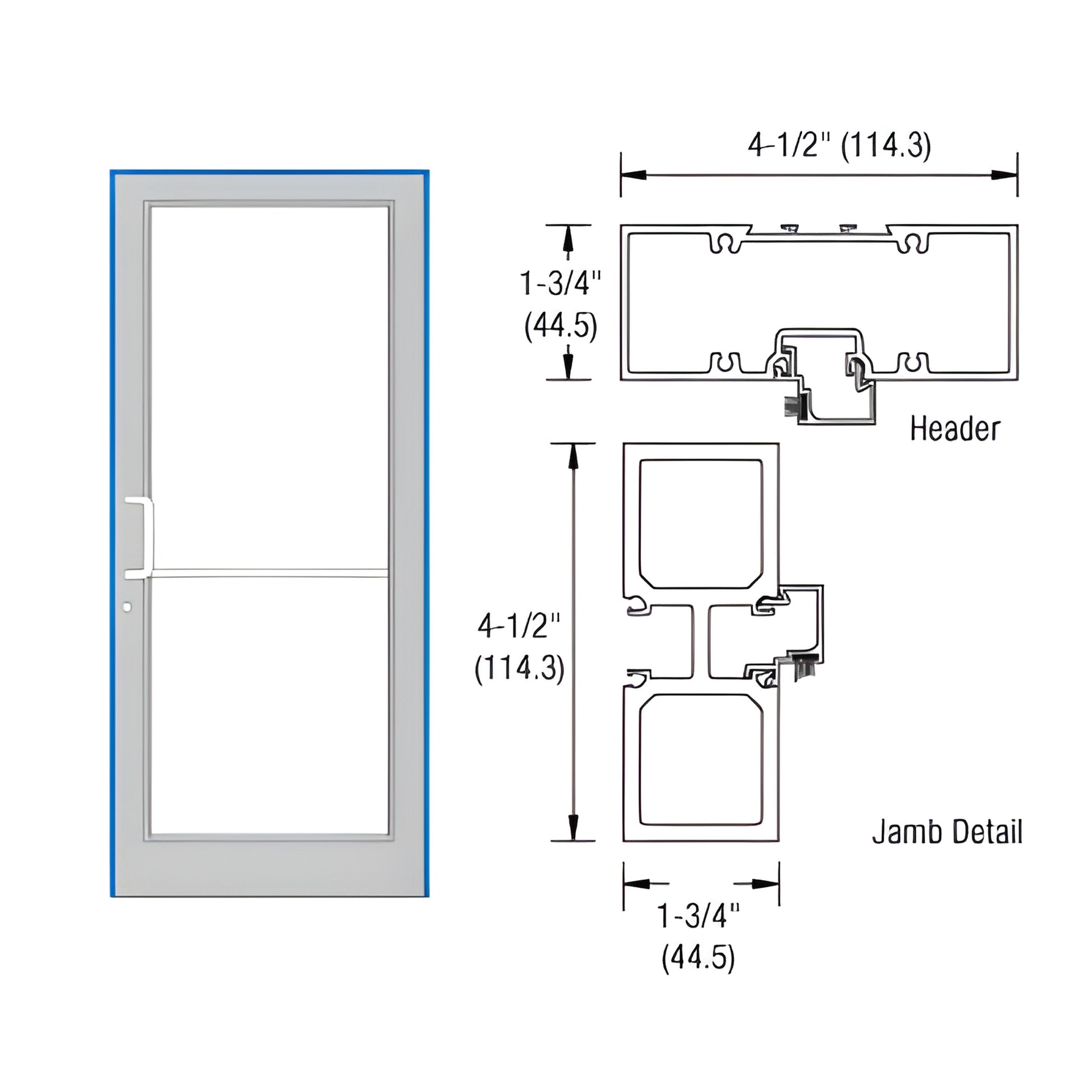

- 39-1/2" x 85-3/4" (1.0 x 2.2 m) base frame outside dimensions
- 36" x 84" (0.9 x 2.1 m) door opening for standard 36" x 84" doors
- Aluminum threshold included
- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) up-and-over frame with JS455 tubular jambs and JS467 header
Complete frame built for a 36" x 84" gear-hinge door with surface-mount closer. Constructed of aluminum with tubular jambs and header; includes door stops, weatherstrip, standard hardware, and hardware preparations. All fasteners, standard hardware, and frame fabrication for assembly are included—customer supplies fasteners to attach frame to opening. Note: frame widths under 39-1/2" (1.0 m) may not meet ADA inspection requirements.
SKU: FD11811 — Ideal for commercial aluminum door frame applications, ADA-aware installations, and retrofit projects requiring a surface mount closer-ready frame.
Order FD11811 today for a ready-to-install commercial aluminum frame with threshold and hardware included.
