CRL-U.S. Aluminum DF800 Tubular Gear Hinge Up-and-Over 39-1/2x85-3/4
CRL-U.S. Aluminum DF800 Tubular Gear Hinge Up-and-Over 39-1/2x85-3/4
Regular price
$1,323.05 CAD
Regular price
Sale price
$1,323.05 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD11822
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview

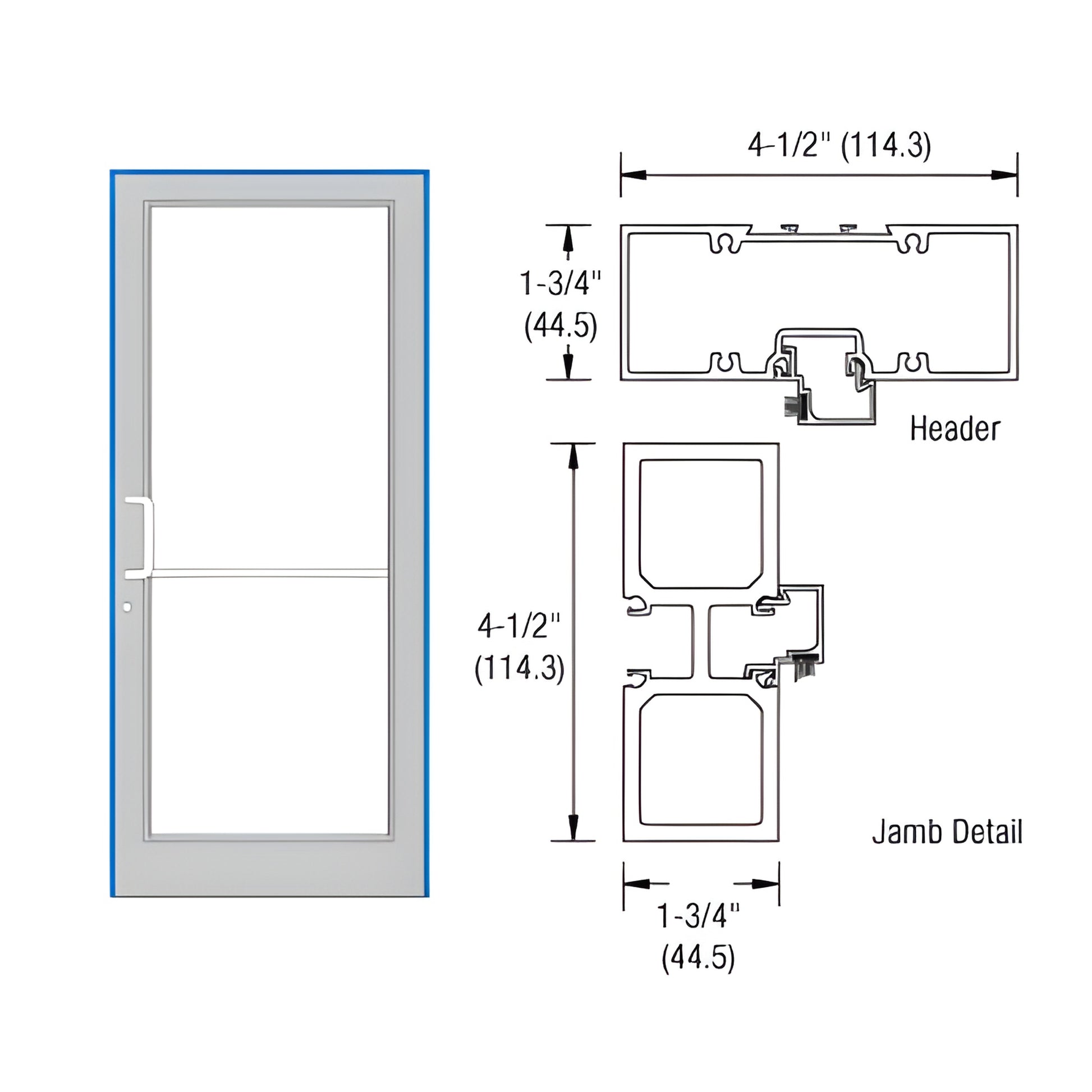

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Up-and-Over Frame with Tubular Jambs
- 39-1/2" x 85-3/4" (1.0 x 2.2 m) Base Frame Size (Outside Dimensions)
- 36" x 84" (0.9 x 2.1 m) Door Opening
- Aluminum Threshold included
Complete Frame (SKU: FD11822) is built to accommodate a base 36" x 84" Gear Hinge door for a surface-mount closer. Constructed with JS455 tubular jambs and JS467 header, the frame includes door stops, weatherstrip, standard hardware, and hardware preparations for faster installation. All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer provides fasteners to attach frame to the opening. Note: frame widths under 39-1/2" (1.0 m) may not meet A.D.A. inspection requirements.
Durable aluminum threshold and tubular-jamb construction provide reliable performance for commercial openings — order SKU FD11822 or contact us for a quote.
