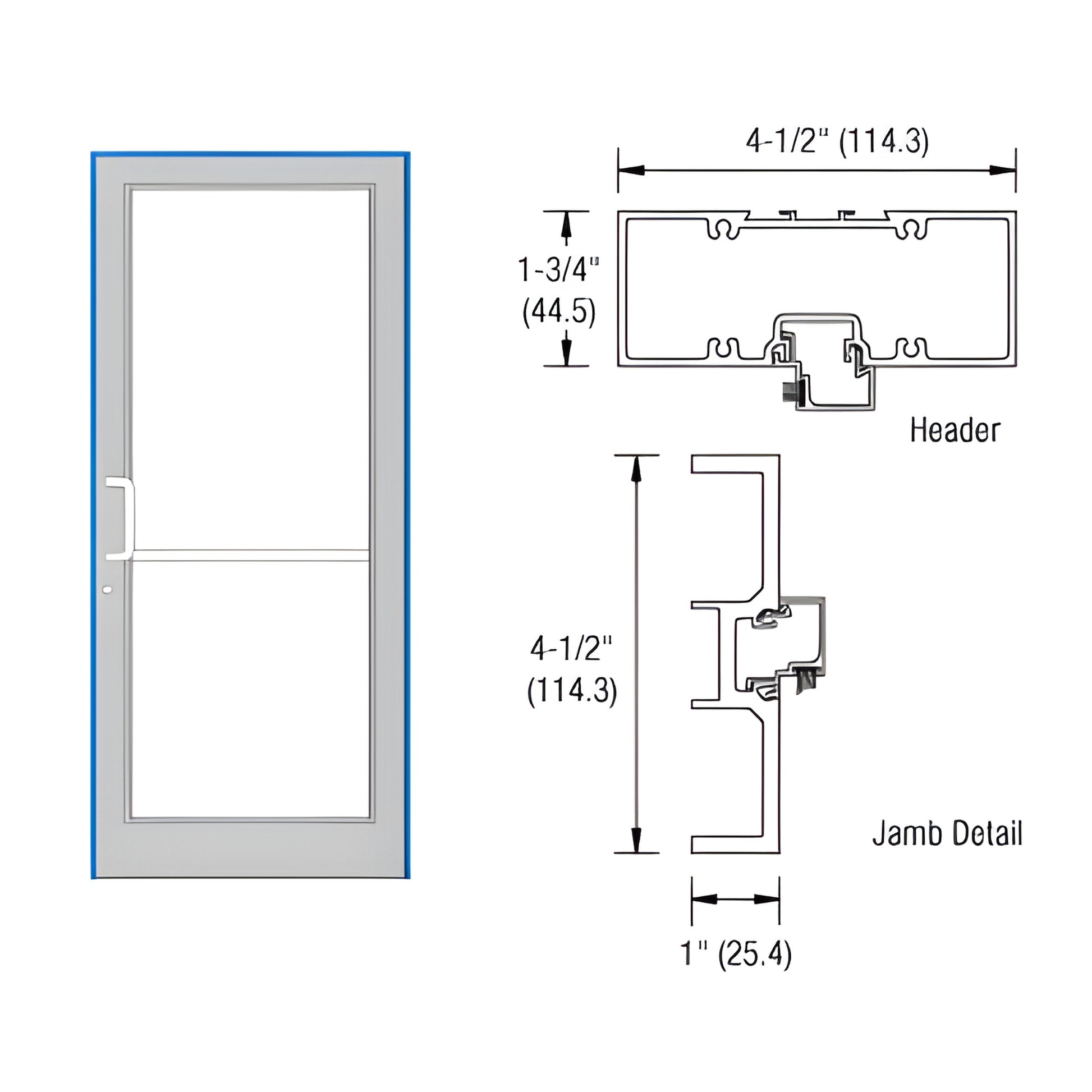

• FD71811 clear anodized aluminum up and over door frame, 36 84 opening, header and jamb cross section details.
1 1

CRL

CRL-U.S. Aluminum DF800 Up & Over Gear-Hinge Frame 38x85-3/4 Anod.

CRL-U.S. Aluminum DF800 Up & Over Gear-Hinge Frame 38x85-3/4 Anod.

$949.96 CAD
$949.96 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FD71811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 1" x 4-1/2" (25.4 x 114.3 mm) Up-and-Over Frame with Open Back Jambs — designed for surface-mount closer installation
  • 38" x 85-3/4" (1.0 x 2.2 m) Base frame size (outside dimensions)
  • 36" x 84" (0.9 m x 2.1 m) door opening
  • Aluminum threshold is included

Complete Frame (SKU: FD71811) — Built to accommodate a 36" x 84" gear hinge door for a surface-mount closer. Constructed using TJ455 open back jambs with JS467 header. Includes door stops, weatherstrip, standard hardware, and hardware preparations for quick installation.

All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach frame to opening. Note: frame widths less than 38" (0.9 m) may not pass A.D.A. inspection. Key differentiators: up-and-over profile, open back jambs for easier on-site adjustments, and included aluminum threshold for a finished threshold solution.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary by monitor settings.


Order FD71811 today for a ready-to-install up-and-over frame solution.
