CRL-U.S. Aluminum DF800 Up & Over Tubular Gear Hinge 75-1/2x85-3/4
CRL-U.S. Aluminum DF800 Up & Over Tubular Gear Hinge 75-1/2x85-3/4
Regular price
$1,403.43 CAD
Regular price
Sale price
$1,403.43 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FD12811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

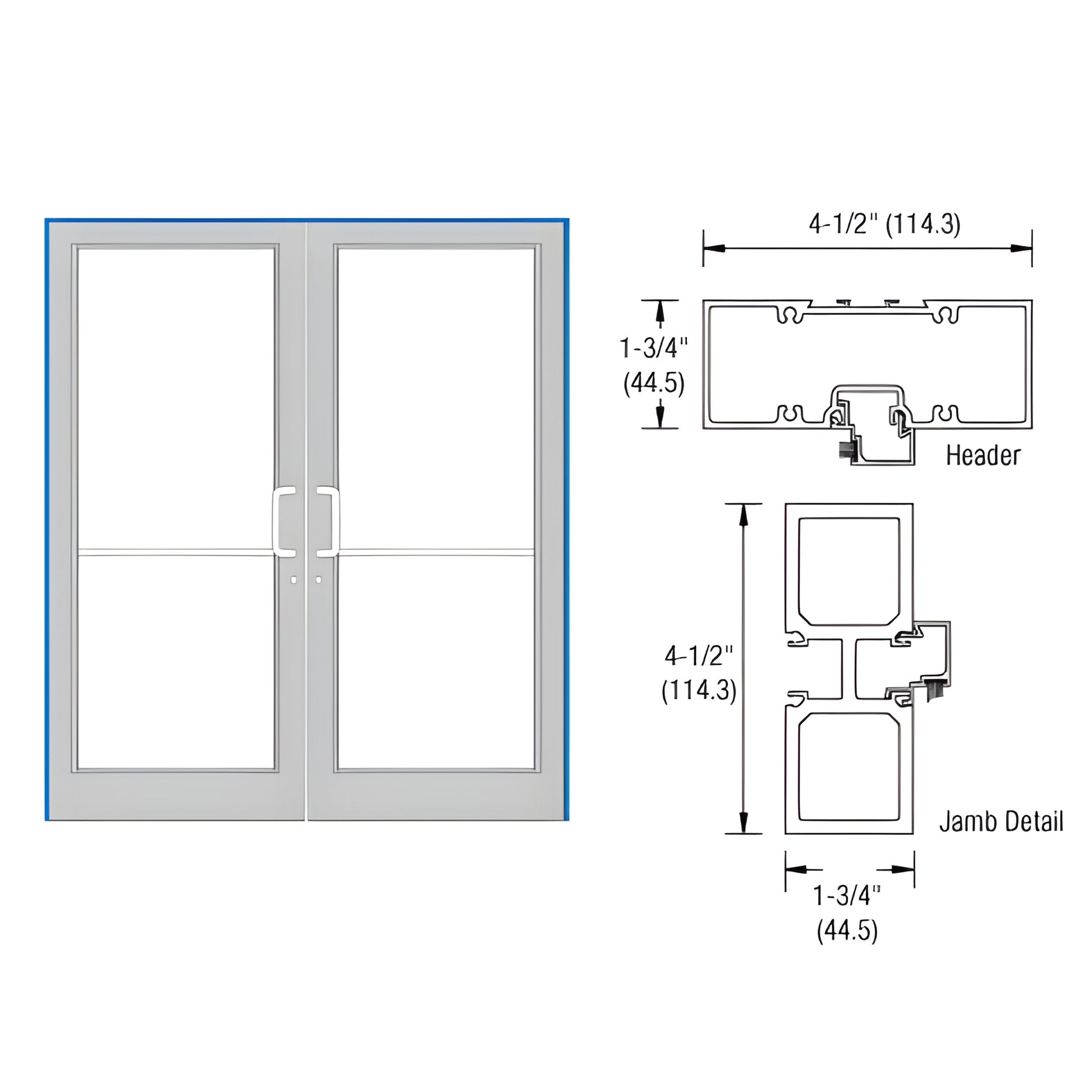

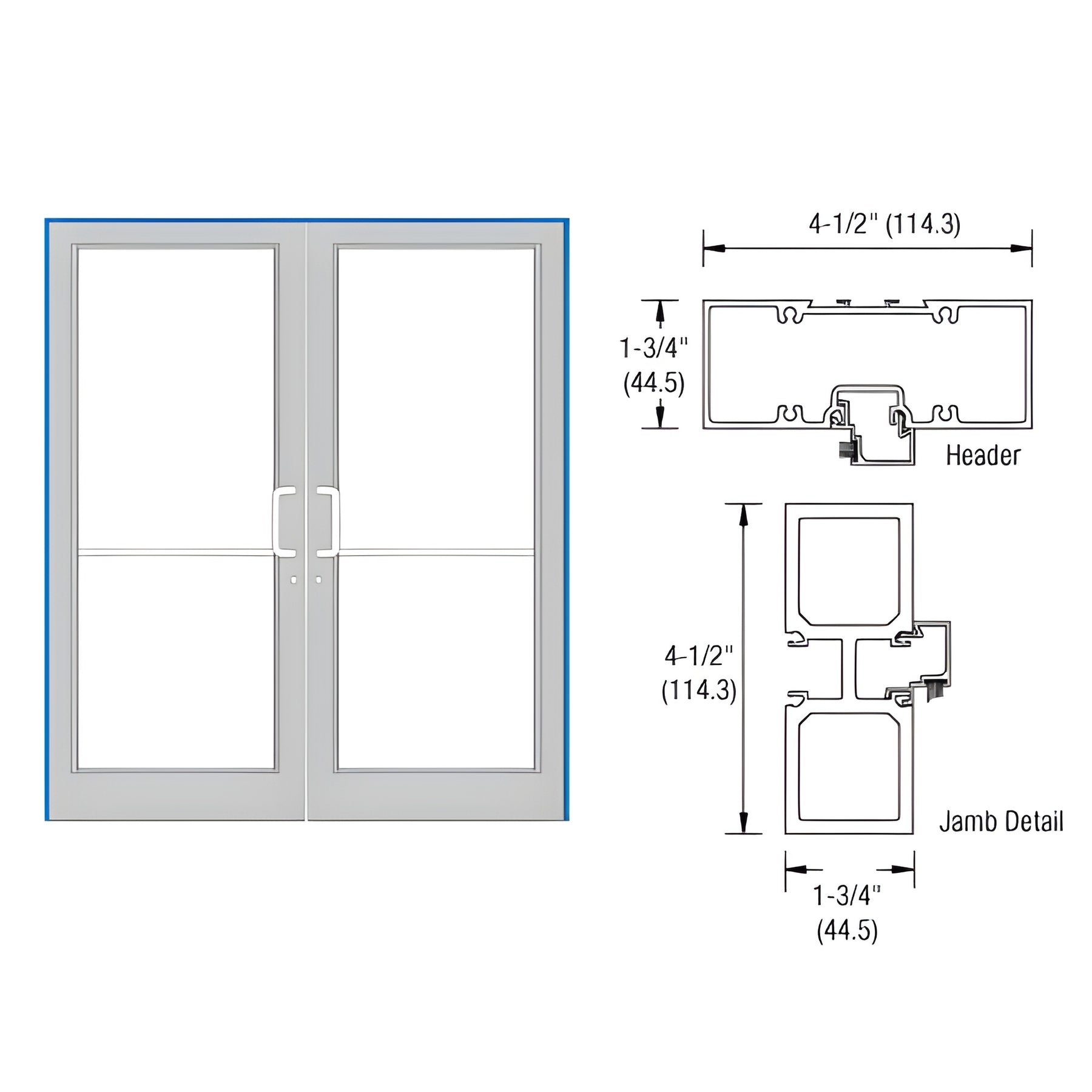

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) up-and-over frame with JS455 tubular jambs
- 75-1/2" x 85-3/4" (1.9 x 2.2 m) base frame size (outside dimensions)
- 72" x 84" (1.8 x 2.1 m) door opening — fits standard 72" x 84" gear hinge door for surface mount closers
- Aluminum threshold included
Complete frame built to accommodate a 72" x 84" gear hinge door with a surface mount closer. Constructed with JS455 tubular jambs and JS467 header; includes door stops, weatherstrip, standard hardware and hardware preparations for fast, accurate installation.
All fasteners, standard hardware and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening.
SKU: FD12811 — Ready-to-install up-and-over frame with tubular jambs and aluminum threshold. Order now to streamline installation.
