CRL-U.S. Aluminum White KYNAR® Paint 74" x 86" Series DF800 Open Back Offset Pivot Up and Over Frame Complete (2F)

• 74" x 86" (1.9 x 2.2 m) Base Frame Size (Outside Dimensions)
• 72" x 84" (1.8 x 2.1 m) Door Opening
• Aluminum Threshold is Included

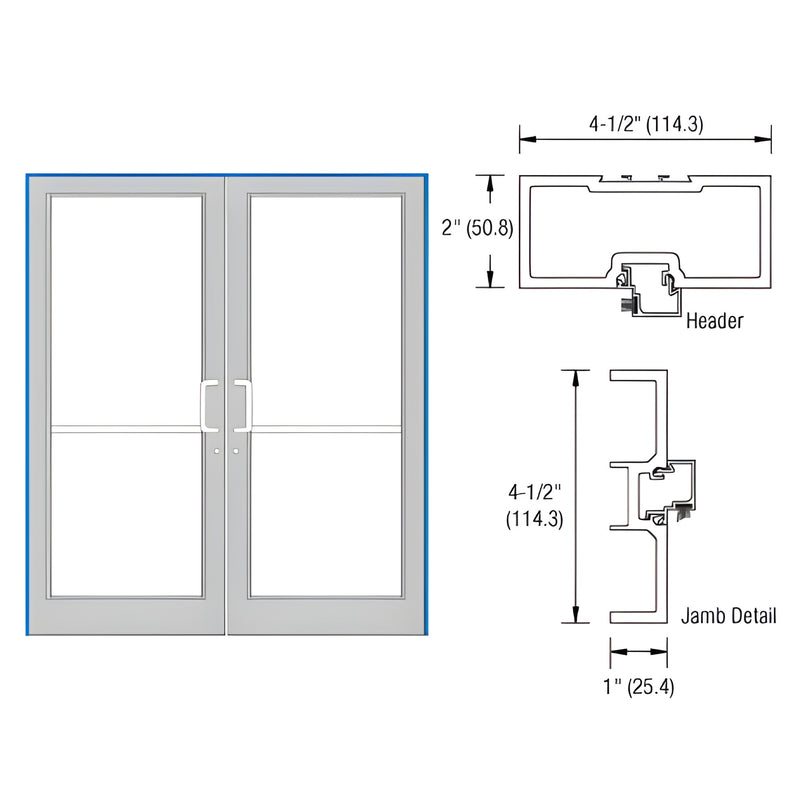

• 1" x 4-1/2" (25.4 x 114.3 mm) Up and Over Frame with Open Back Jambs

Complete Frame

is built to accommodate a base 72" x 84" Offset Pivot Door for a Surface Mount Closer, constructed using TJ455 Open Back Jambs with 1H457 Header. Door stops, weatherstrip, standard hardware, and hardware preparations are included.

All fasteners, standard hardware and hardware fabrication for frame assembly are included. Customer supplies fasteners to attach frame to opening.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
