CRL-U.S. Aluminum Geared-Hinge Doors - KYNAR, Surface-Closer Ready

CRL-U.S. Aluminum Geared-Hinge Doors - KYNAR, Surface-Closer Ready

$3,059.11 CAD
$3,059.11 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DC42871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
  • Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
  • 6-1/2" (165 mm) bottom rail
  • Custom fabricated to accept optional hardware applications

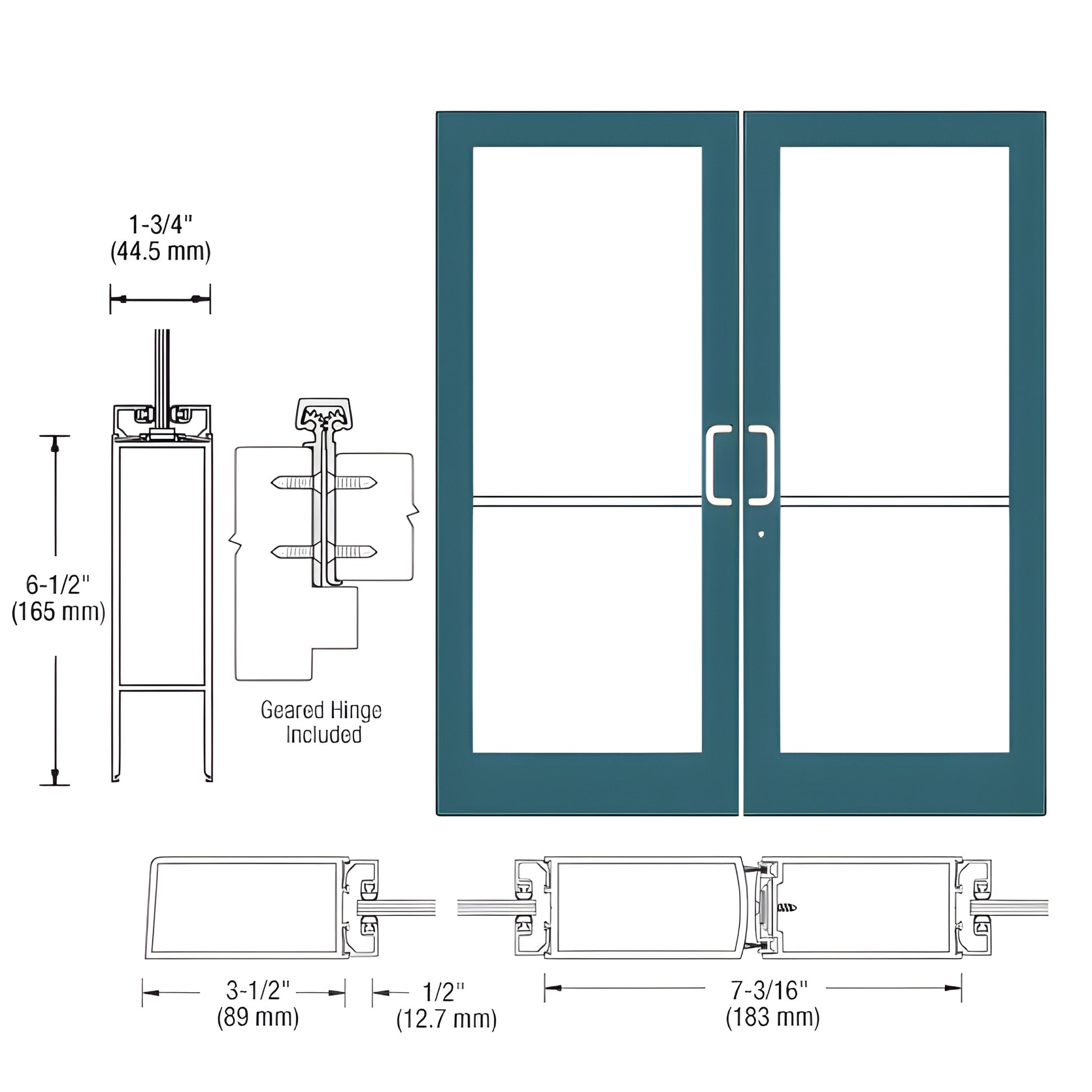

Custom Medium Stile Entrance Door — built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Designed for custom fabrication to accept a wide range of optional hardware, this door is ideal for commercial storefronts, retail entrances, and high-traffic medium stile applications.


Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

SKU: DC42871 — Contact CRL to confirm options, lead times, and to place your order.

Specifications

BIM Objects - rvt
Entrance Series 250 400 550 BIM.rvt
