CRL-U.S. Aluminum Geared Hinge Entry Doors, Clear Anodized
CRL-U.S. Aluminum Geared Hinge Entry Doors, Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4” (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- Includes active and inactive leaf with all standard hardware for paired-door installations
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. accessibility requirements
- Custom fabricated to accept a wide range of optional hardware applications

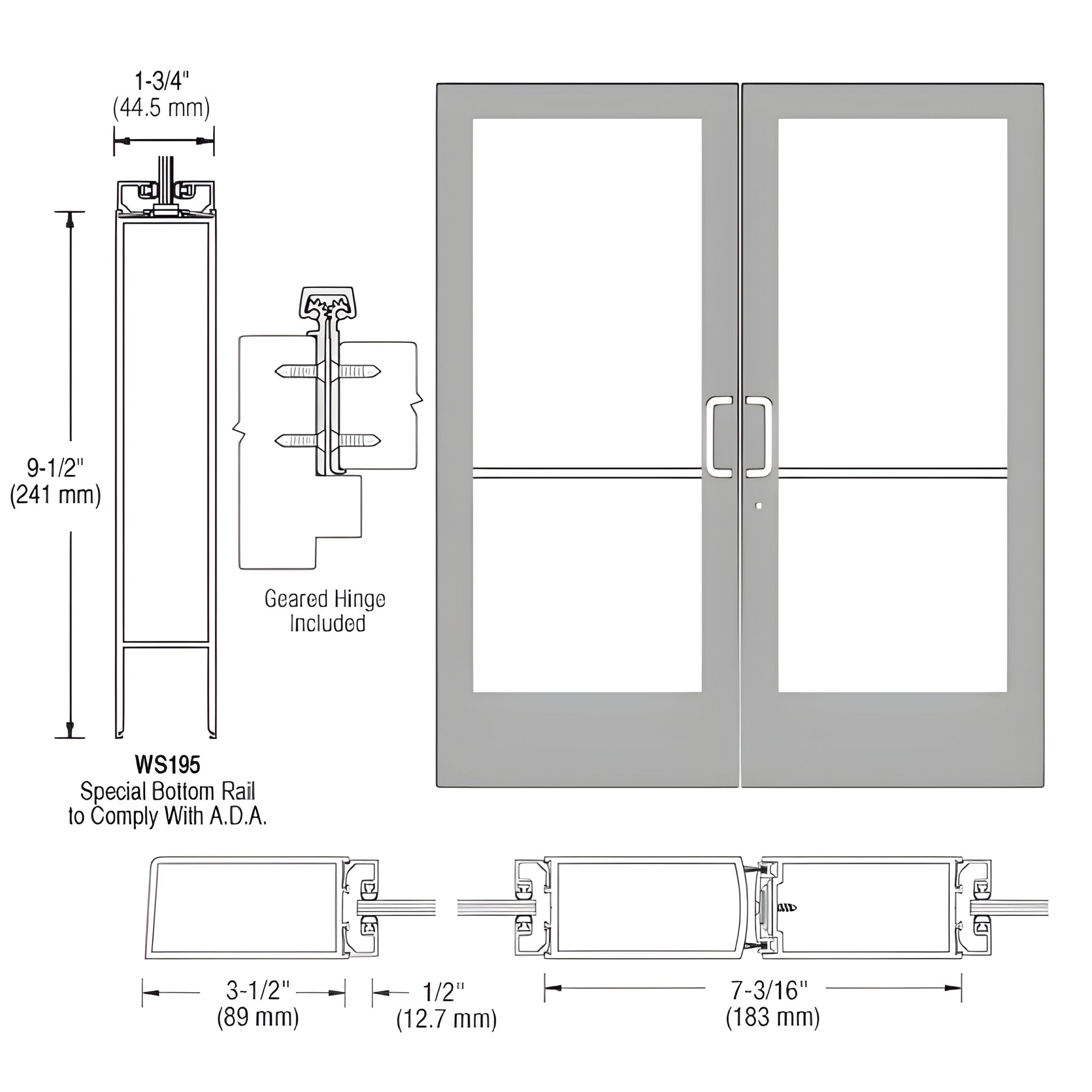

This Custom Medium Stile Entrance Door (SKU: DE42811) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is built for easy customization and is ready for optional hardware such as pivots, commercial handles, and insulating glass units.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage.
Call or order online to configure this custom medium stile entrance door for your project.
Specifications
BIM Objects - rvt
