CRL-U.S. Aluminum Geared Hinge Narrow-Stile Entry Doors, ADA Rail
CRL-U.S. Aluminum Geared Hinge Narrow-Stile Entry Doors, ADA Rail
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE22811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) Bottom Rail installed for ADA compliance
- Custom fabricated to accept a wide range of optional hardware applications
- Includes active and inactive leaf with all standard hardware

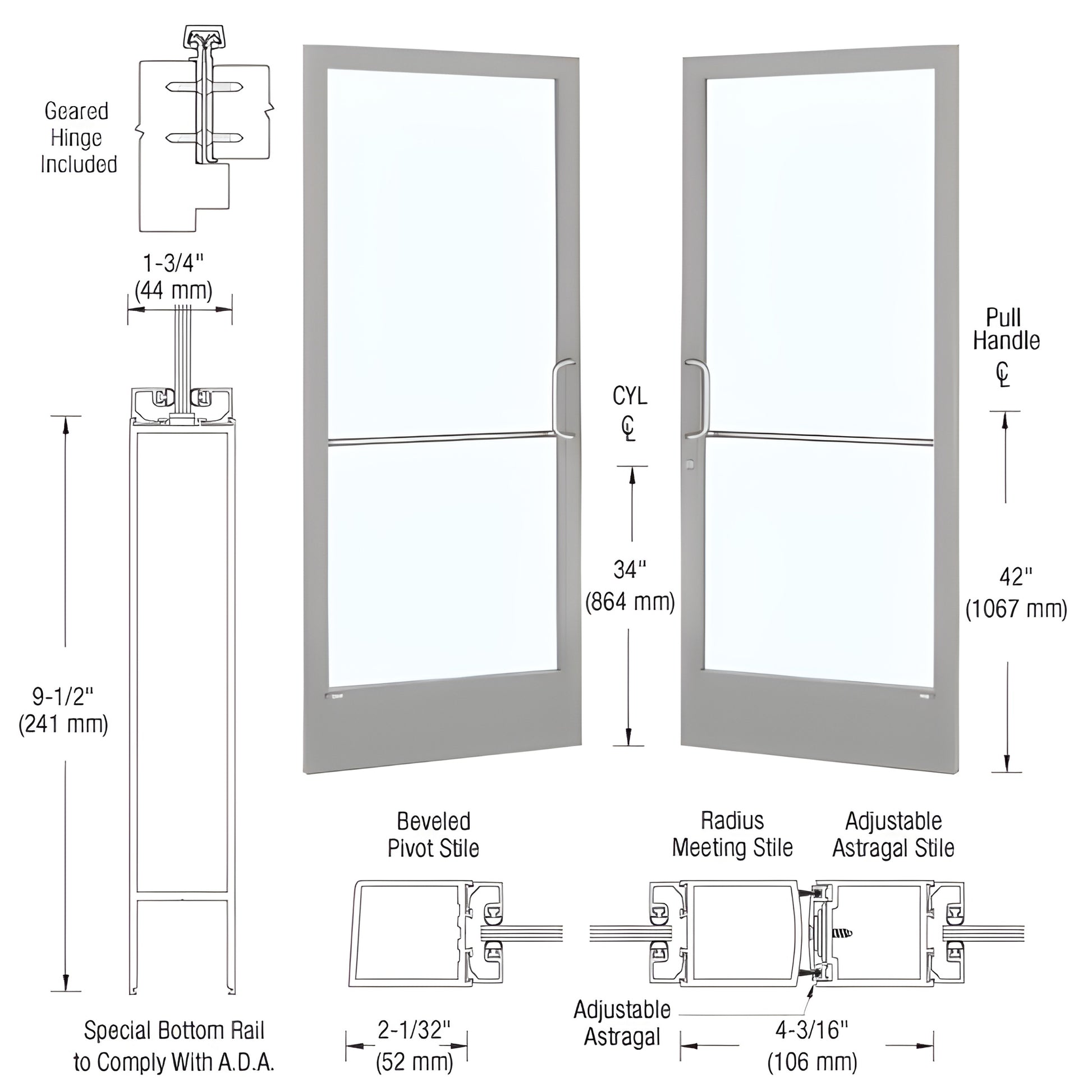

This Custom Narrow Stile Entrance Door (SKU: DE22811) features 2" (51 mm) stiles, a 2-1/8" (54 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard design includes stiles configured for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication, this narrow stile entrance door is ready for commercial hardware upgrades and ADA-compliant installations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Order SKU DE22811 today to get a custom narrow stile entrance door ready for optional commercial hardware—contact us for lead time and shipping details.
Specifications
BIM Objects - rvt
