• Clear anodized double transom impact door frame, 2-1/2" x 5" profile, SKU 0P62511
1 1

CRL

CRL-U.S. Aluminum IG500 Clear Anodized Class 1 Butt Hinge 2-Door

CRL-U.S. Aluminum IG500 Clear Anodized Class 1 Butt Hinge 2-Door

$2,787.88 CAD
$2,787.88 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P62511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

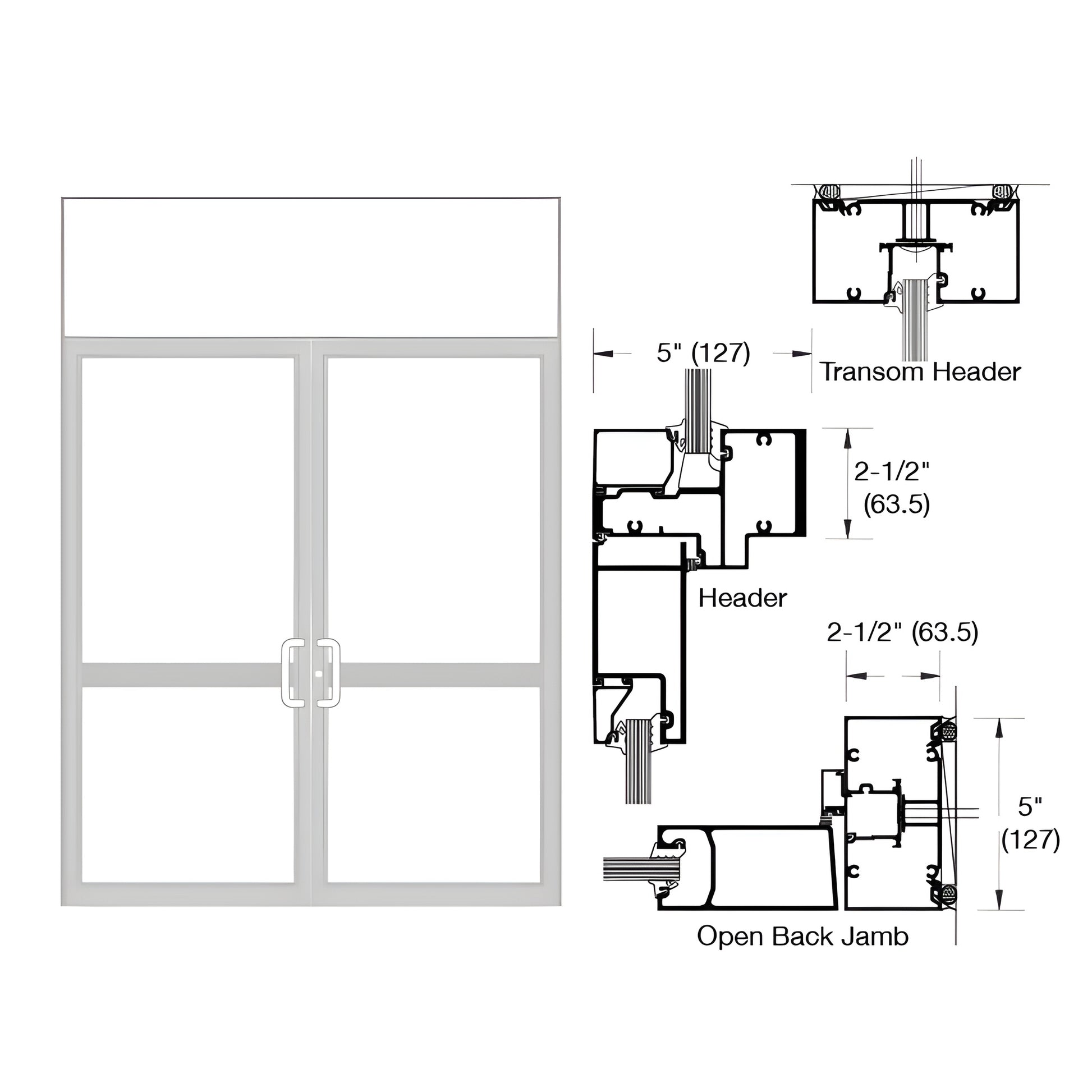

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard CVR panic strike
  • Includes TH811 air resistant threshold; optional air/water resistant threshold available

This Custom Double Transom Door Frame (SKU: 0P62511) is engineered for hurricane impact applications and built to accommodate a pair of butt-hinged CVR impact doors using 9/16" (14 mm) laminated impact glazing. Constructed from IG526 door jambs with IG567/IG563 header and IG526/IG100 transom header components, it accepts surface-mount closers and includes TH811 air threshold. Hardware preparations include provisions for a 1-1/2" pair of butt hinges and a standard CVR panic strike—ideal for coastal and high-wind installations requiring certified hurricane impact door frames and transom systems.

When installing hurricane impact products, always refer to FPA guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.


Need a quote or help selecting the right hurricane impact door frame? Contact CRL Customer Service to get started.
