CRL-U.S. Aluminum IG500 Clear Anodized Transom Butt Door Hinge
CRL-U.S. Aluminum IG500 Clear Anodized Transom Butt Door Hinge
Regular price
$2,082.79 CAD
Regular price
Sale price
$2,082.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame for hurricane impact doors
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for standard lock strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available

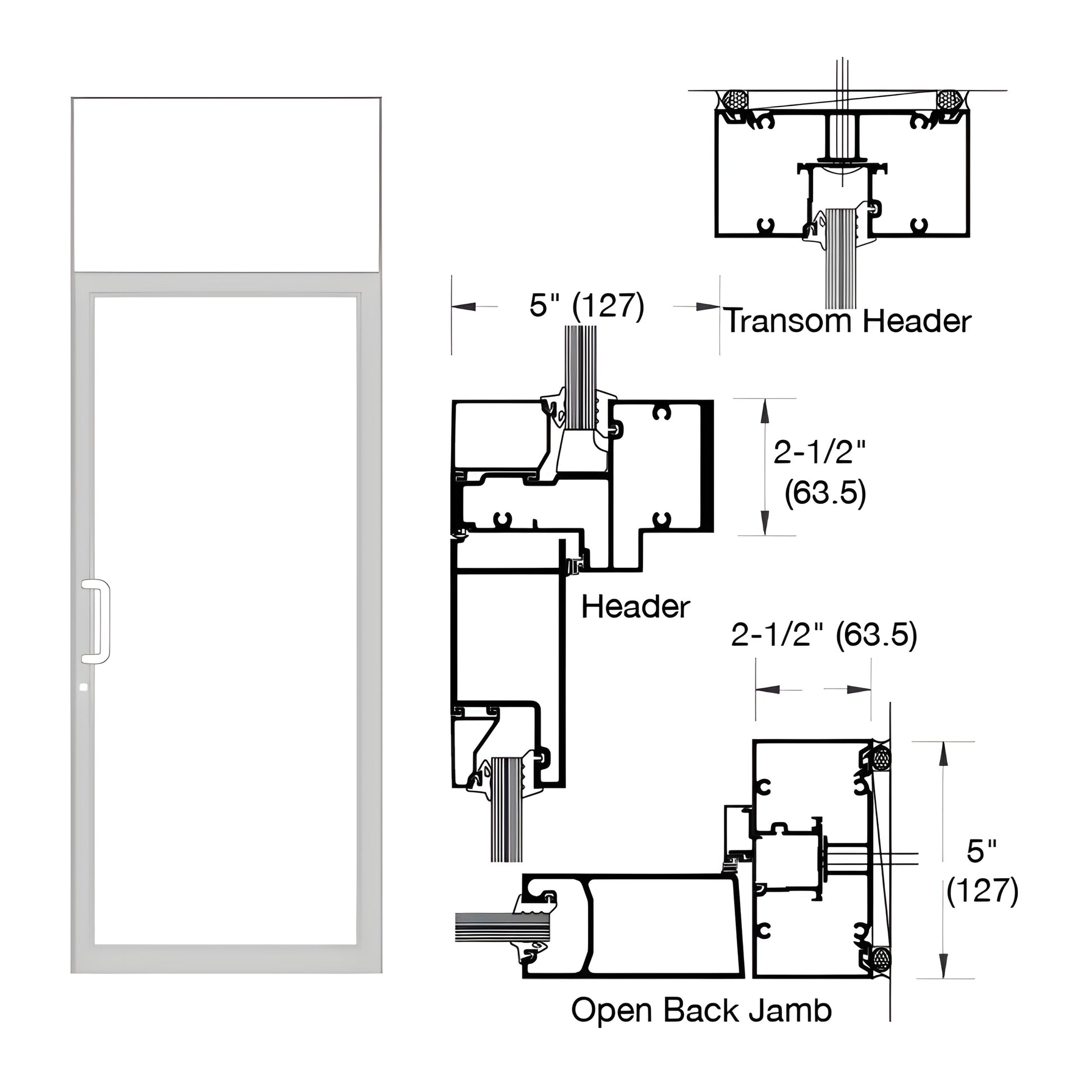

This Custom Single Transom Door Frame (SKU 0F61511) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Frame components: IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold. Hardware prep includes provisions for a 1-1/2" pair of butt hinges and a standard lock strike.
Always follow FPA guidelines when installing hurricane impact products.
For pricing, availability, or to order SKU 0F61511, contact CRL Customer Service today.
