CRL-U.S. Aluminum IG500 Clear Anodized Transom Butt Hinge 2-Door

CRL-U.S. Aluminum IG500 Clear Anodized Transom Butt Hinge 2-Door

$2,794.83 CAD
$2,794.83 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F62511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

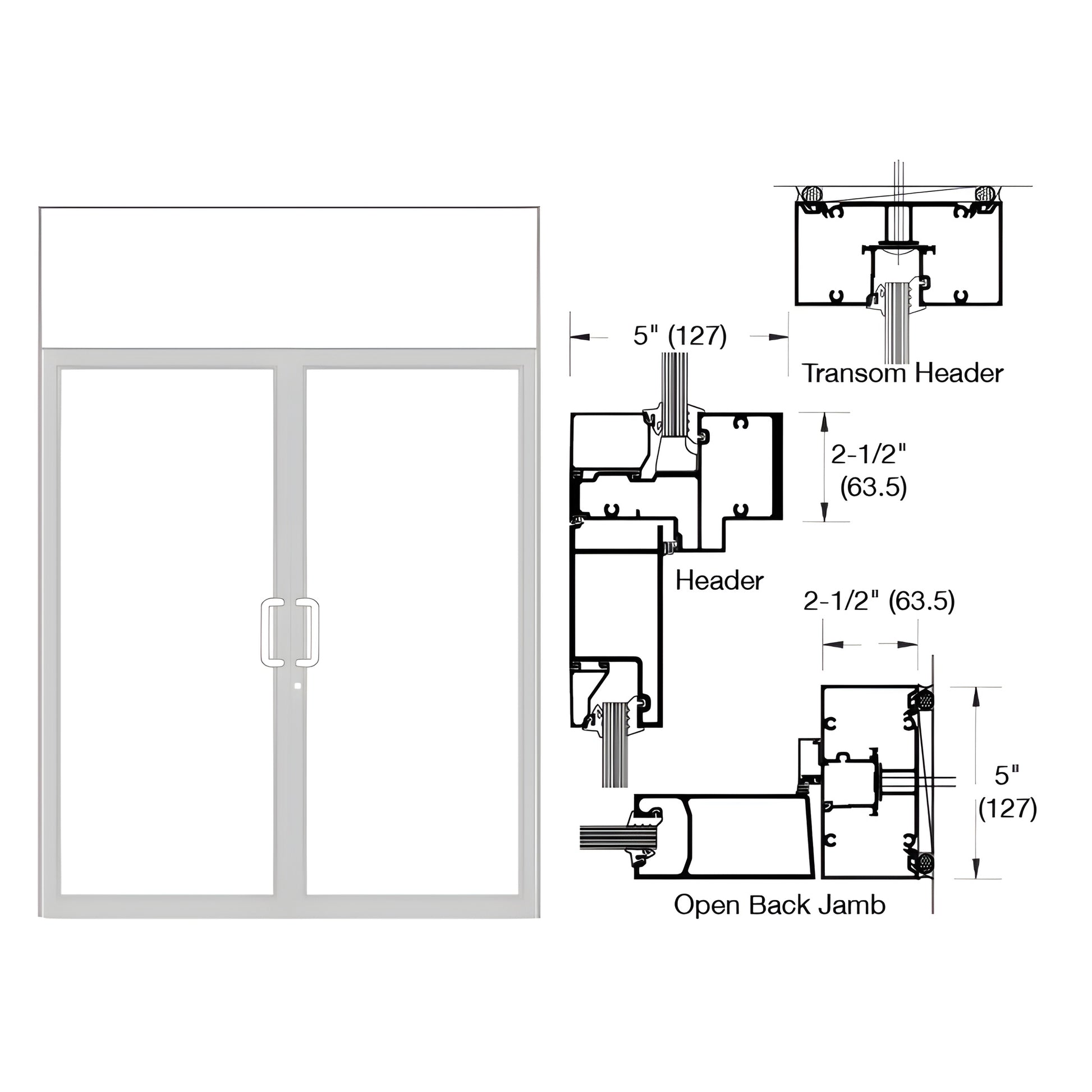

  • 2-1/2" x 5" (63.5 x 127 mm) Butt-Hinged Transom Impact Door Frame
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard flush bolts strike
  • Includes air-resistant threshold (TH811)
  • Optional air/water-resistant threshold available

This Custom Double Transom Door Frame is engineered for hurricane impact door applications and built to accept a pair of butt-hinged impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with durable IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold. Hardware prep includes 1-1/2" pair butt hinge preparation and standard flush-bolts strike cutouts—designed to simplify installation of surface-mount closers and impact-rated door systems.

Always follow FPA guidelines when installing hurricane impact products.
