CRL-U.S. Aluminum IG500 Clear Anodized Transom Frame for Geared Hinge
CRL-U.S. Aluminum IG500 Clear Anodized Transom Frame for Geared Hinge
Regular price
$2,517.66 CAD
Regular price
Sale price
$2,517.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Prepped for standard deadbolt strike
- Includes air resistant threshold (TH811)
- Optional air/water resistant threshold available

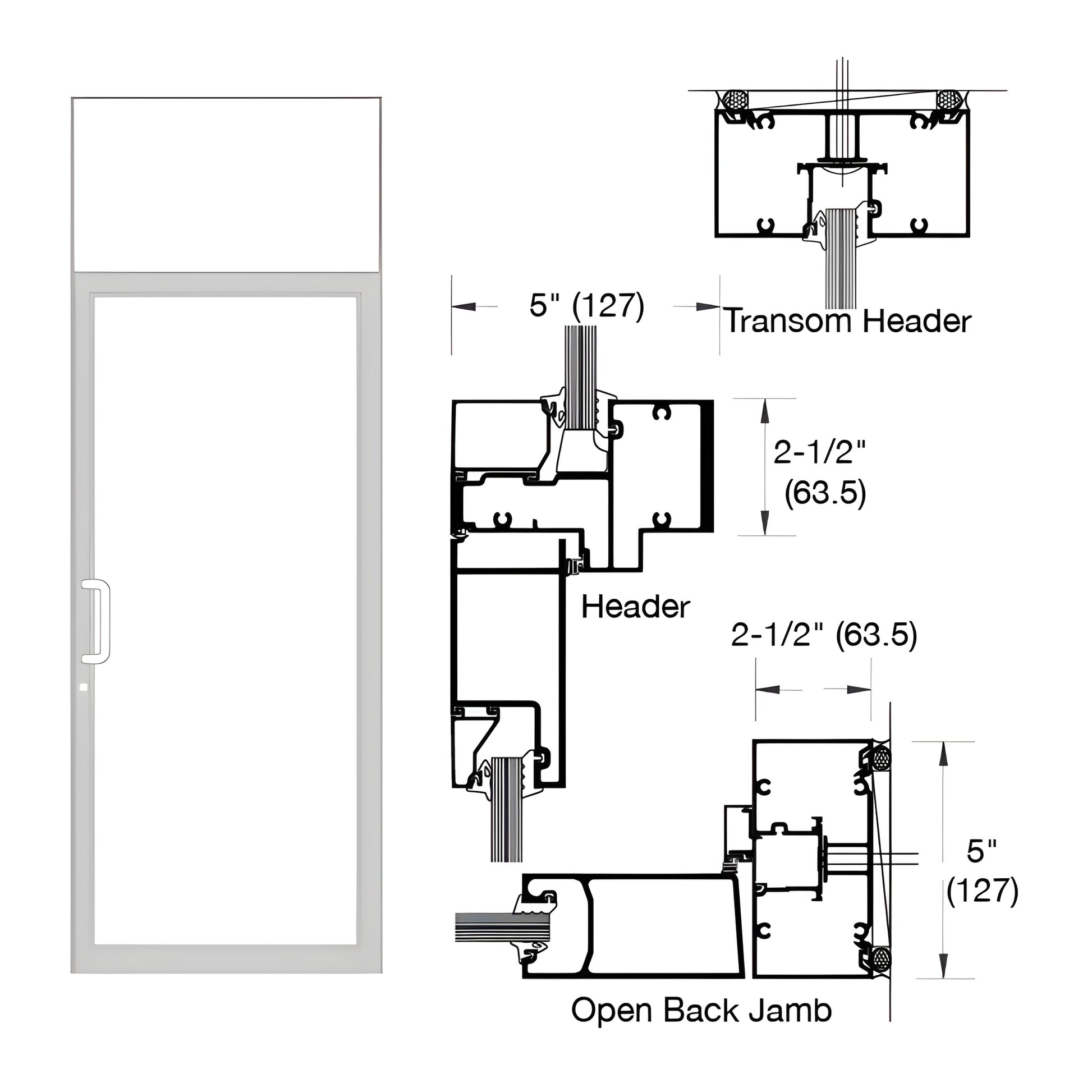

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame — geared hinge not included
This Custom Single Transom Door Frame (SKU: 0F61811) is engineered for geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG147/IG146 door jambs, IG567/IG563 header, IG526 transom header, and TH811 air threshold, the frame is prepped for geared hinge hardware and a standard deadbolt strike — ideal for coastal and high-wind applications that require hurricane impact-rated door frames.
When installing hurricane impact products, always refer to FPA Guidelines.
Contact CRL Customer Service to confirm options, get exact weights, or place your order.
