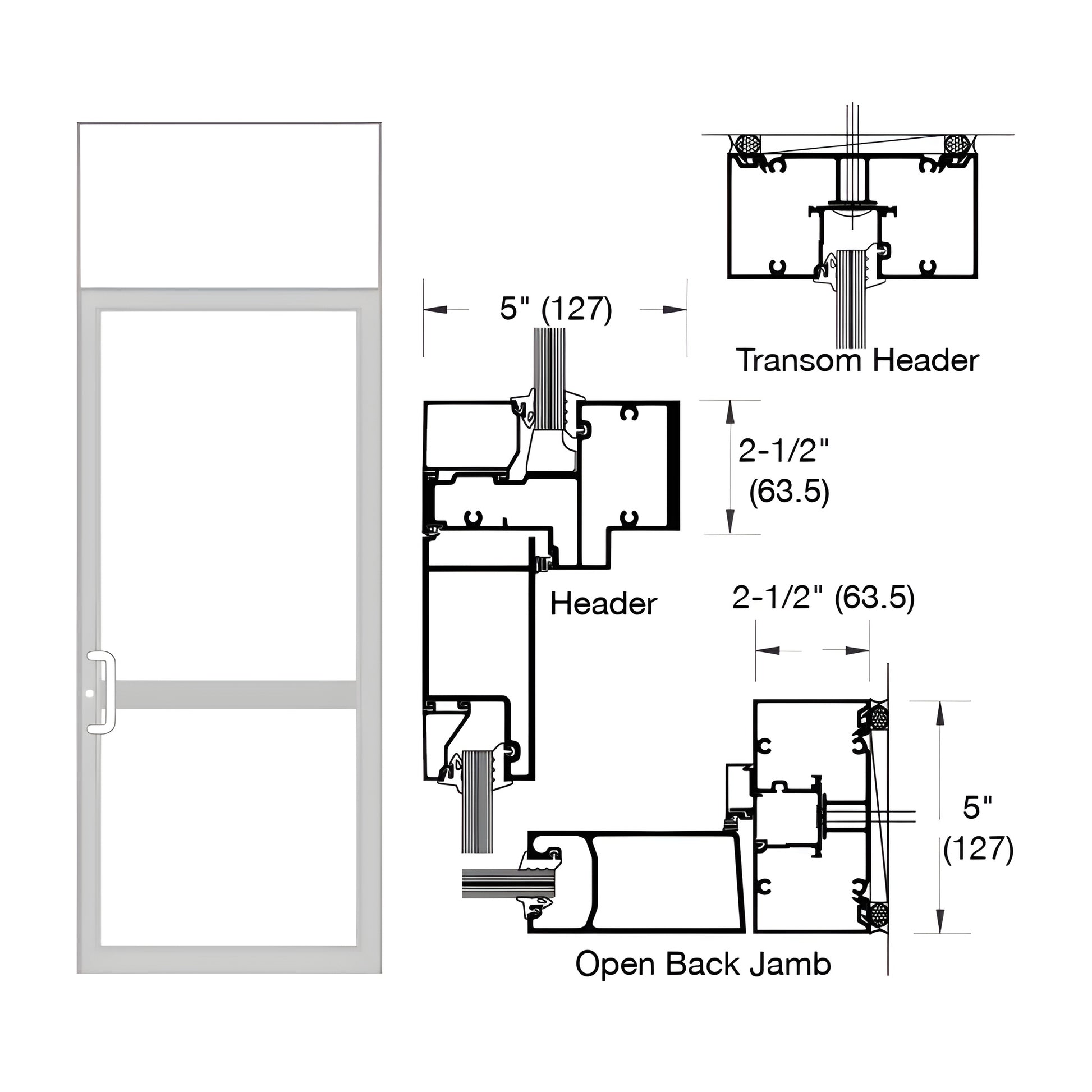

• Custom clear anodized transom impact door frame with air threshold and gearing details, SKU 0P61811
1 1

CRL

CRL-U.S. Aluminum IG500 Transom Frame - Clear Anodized, Geared Hinge

CRL-U.S. Aluminum IG500 Transom Frame - Clear Anodized, Geared Hinge

$2,494.47 CAD
$2,494.47 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P61811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Prepped for Standard CVR Strike
  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame for surface mount closer (Geared hinge not included)

This Custom Transom Door Frame (SKU: 0P61811) is engineered for a single geared-hinged CVR panic hurricane impact door using 9/16" (14 mm) laminated impact glazing. Designed specifically for surface mount closers, the frame is constructed from IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, IG567/IG563 header, IG2526 transom header, and TH811 air threshold. Hardware preparations include geared hinges and a standard CVR strike.

Ideal long-tail search terms: hurricane impact transom door frame for surface mount closer, geared hinged transom impact door frame, CVR panic impact door frame with air threshold.


When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Questions or ready to order this hurricane-rated transom door frame? Contact CRL Customer Service to get started.
