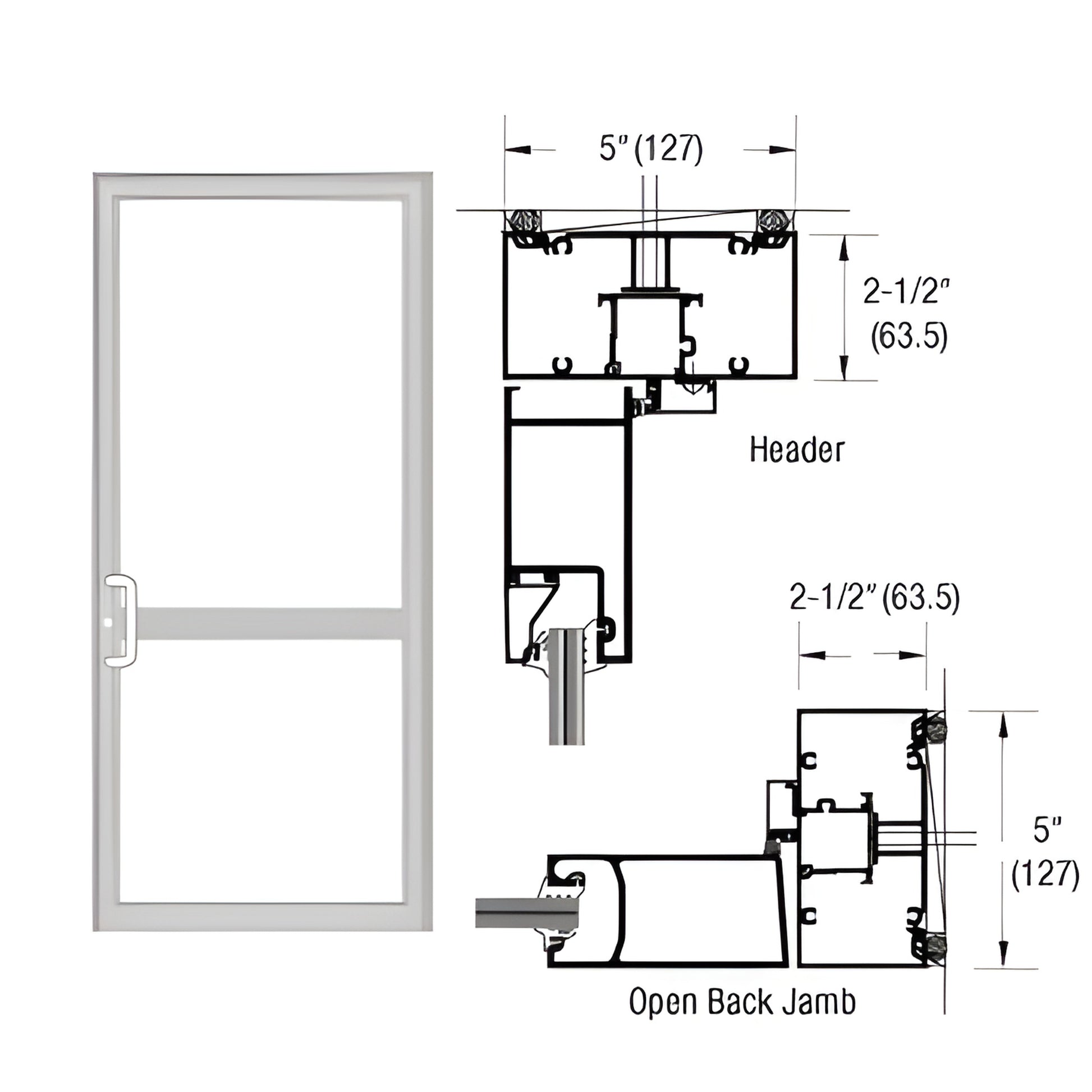

• Clear anodized custom double up/over hurricane impact door frame with CVR prep and technical cross-section (SKU 0P41511)
1 1

CRL

CRL-U.S. Aluminum IG500 Clear Anodized Up/Over Butt Hinge CVR Frame

CRL-U.S. Aluminum IG500 Clear Anodized Up/Over Butt Hinge CVR Frame

$1,472.80 CAD
$1,472.80 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P41511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • Prepped for CVR Panic Strike
  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • 2-1/2" x 5" (63.5 x 127 mm) butt hinged up-and-over impact door frame

This Custom Double Up/Over Door Frame (SKU: 0P41511) is designed for hurricane impact door installations and is prepped for a single butt-hinged CVR panic strike. Built to accept 9/16" (14 mm) laminated impact glazing for surface-mount closers, the assembly uses IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware prep includes a 1-1/2" pair of butt hinges and a standard CVR strike.

Key differentiators: engineered for hurricane impact door frames, factory prep for CVR panic hardware, and available air- or air/water-resistant threshold options for enhanced weather and wind protection.

When installing hurricane impact products always refer to FPA guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Ready to order this hurricane impact door frame (SKU: 0P41511)? Contact CRL Customer Service or add to cart.
