CRL-U.S. Aluminum IG500 Clear Anodized Up-Over Butt Hinge, 2-Door
CRL-U.S. Aluminum IG500 Clear Anodized Up-Over Butt Hinge, 2-Door
Regular price
$1,887.97 CAD
Regular price
Sale price
$1,887.97 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P42511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

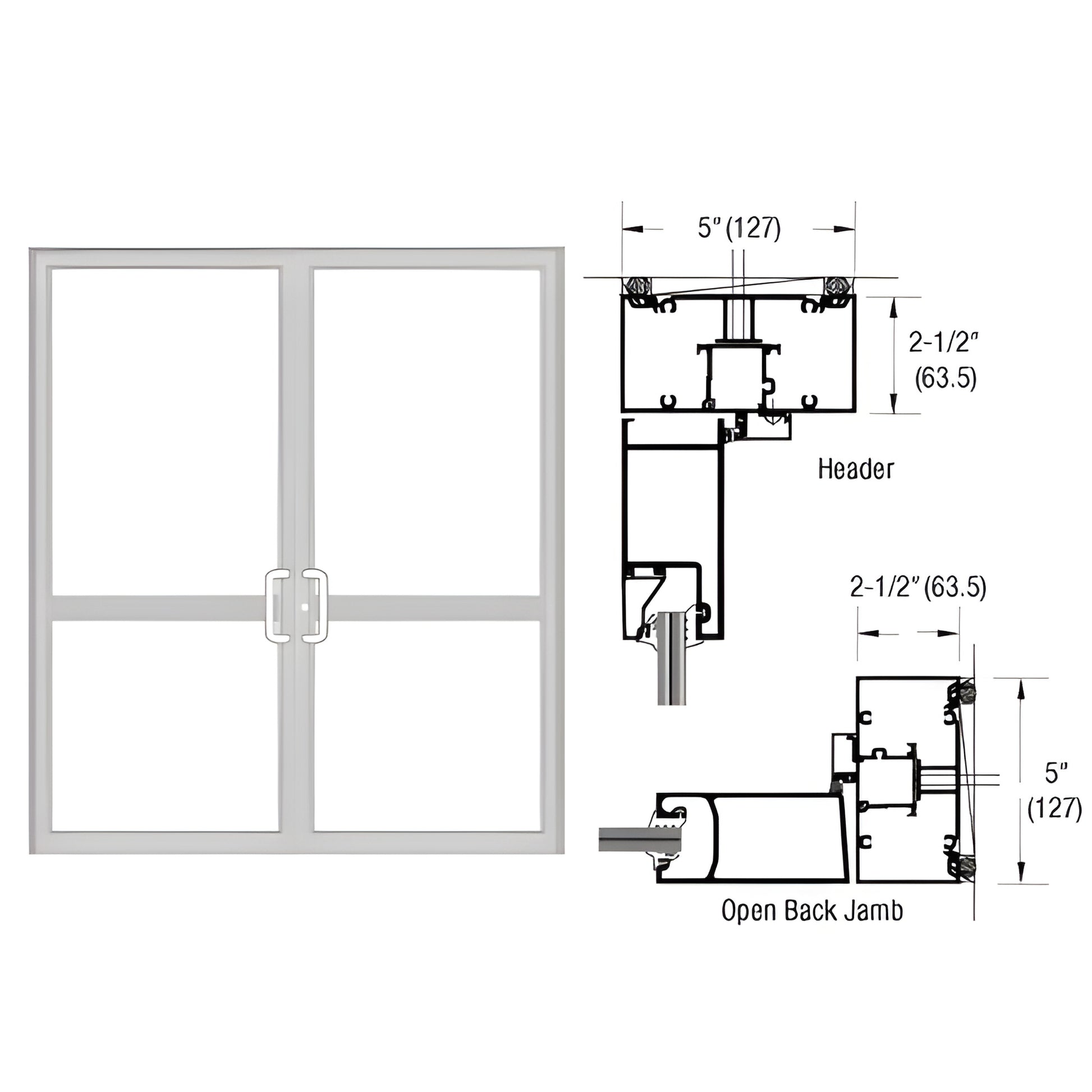

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over impact door frame for double doors
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for CVR panic strike (standard CVR strike)
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
This Custom Double Up/Over Door Frame is engineered for a pair of butt-hinged CVR panic hurricane impact doors using 9/16" (14 mm) laminated impact glazing and surface-mount closers. Constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware preparations include 1-1/2" pair of butt hinges and a standard CVR strike. SKU: 0P42511
Key differentiators: Hurricane-rated impact frame for double up-and-over doors, factory prepped for CVR panic hardware and butt hinges, built-in air resistant threshold with optional air/water upgrade.
Contact us to confirm options and place your order.
