CRL-U.S. Aluminum IG500 Clear Anodized Up/Over Butt-Hinge Door Frame
CRL-U.S. Aluminum IG500 Clear Anodized Up/Over Butt-Hinge Door Frame
Regular price
$1,496.00 CAD
Regular price
Sale price
$1,496.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F41511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Prepped for 1-1/2" pair of butt hinges (not included)

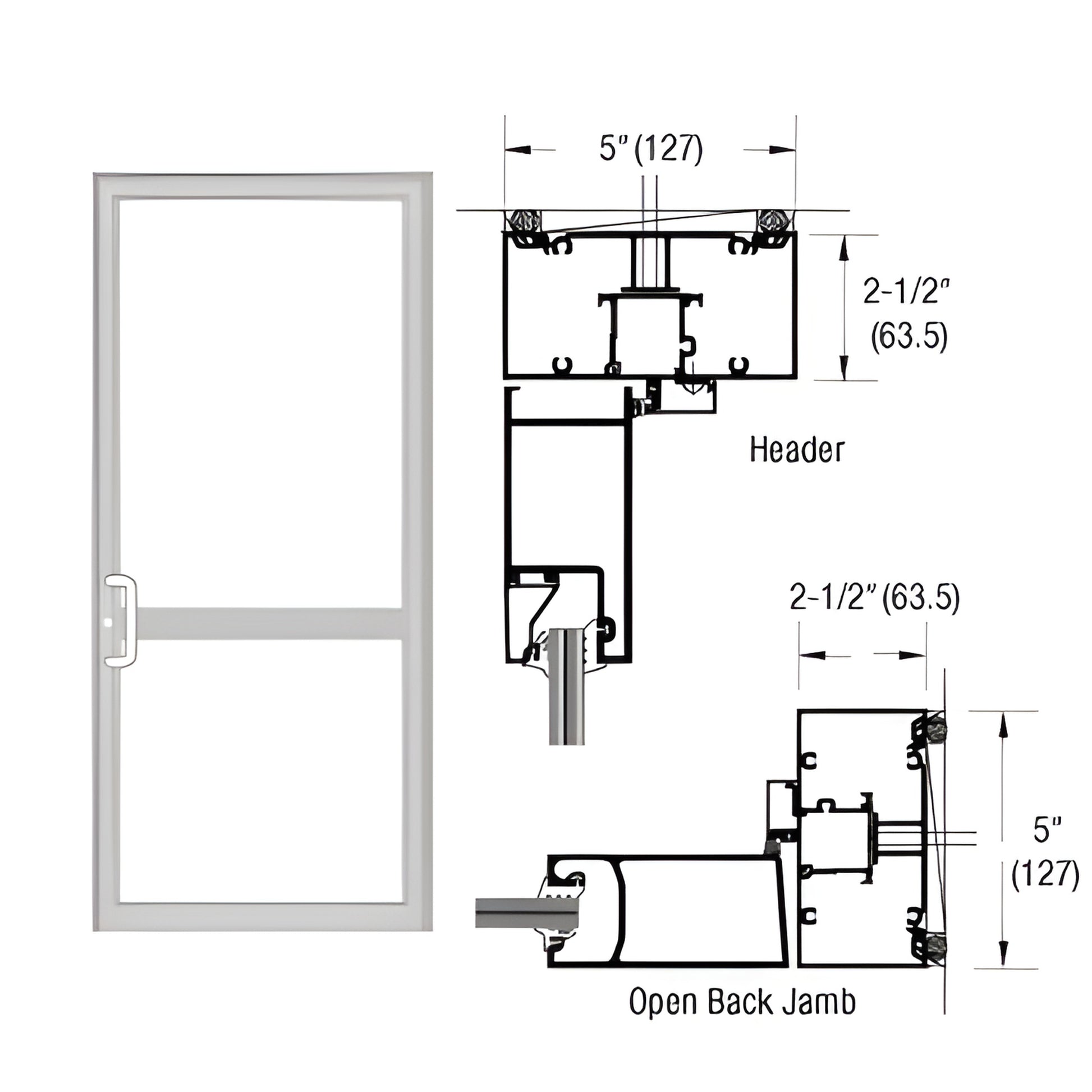

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over impact door frame
- Prepped for standard lock strike
- Includes air resistant threshold; optional air/water resistant threshold available
Custom Single Up/Over Door Frame (SKU: 0F41511) — Hurricane impact door frame prepped for a single butt-hinged impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware prep includes 1-1/2" pair of butt hinges and standard lock strike. Ideal for installers seeking a ready-to-fit, surface-mount-closer-compatible, butt-hinged up-and-over hurricane impact door frame.
When installing hurricane impact products, always refer to FPA Guidelines.
Order or request a quote for SKU 0F41511 to get pricing and lead time.
Specifications
