Description
Finish/Color
Clear Anodized Class 1
Overview

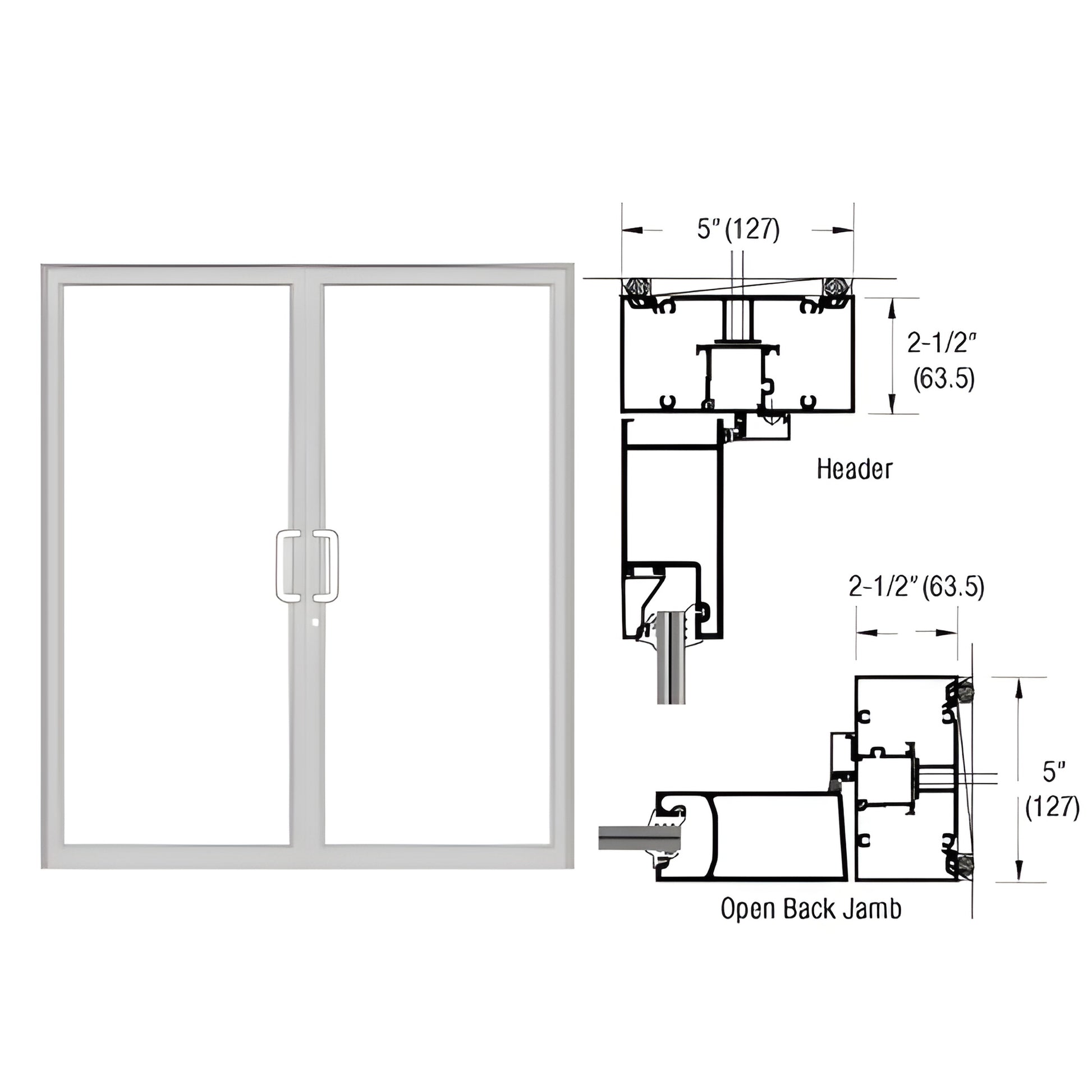

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over impact door frame
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for standard flush-bolt strike
- Includes air resistant threshold; optional air/water resistant threshold available
This Custom Double Up/Over Door Frame is engineered for a pair of butt-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware preparations include 1-1/2" pair of butt hinges and a standard lock strike. Ideal for coastal and high-wind installations where an impact-rated, butt-hinged up-and-over frame is required.
Always follow FPA guidelines when installing hurricane impact products.
SKU: 0F42511
Contact CRL Customer Service to confirm options or place your order.
