CRL-U.S. Aluminum IG500 Up/Over Door for Butt Hinge & Concealed Closer

CRL-U.S. Aluminum IG500 Up/Over Door for Butt Hinge & Concealed Closer

$1,930.87 CAD
$1,930.87 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F41411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Clear Anodized Class 1

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt hinges up/over door frame
  • Prep for 1-1/2" pair butt hinges (not included)
  • Prep for overhead concealed closer and deadbolt strike
  • Includes TH811 air resistant threshold
  • Optional air/water resistant threshold available

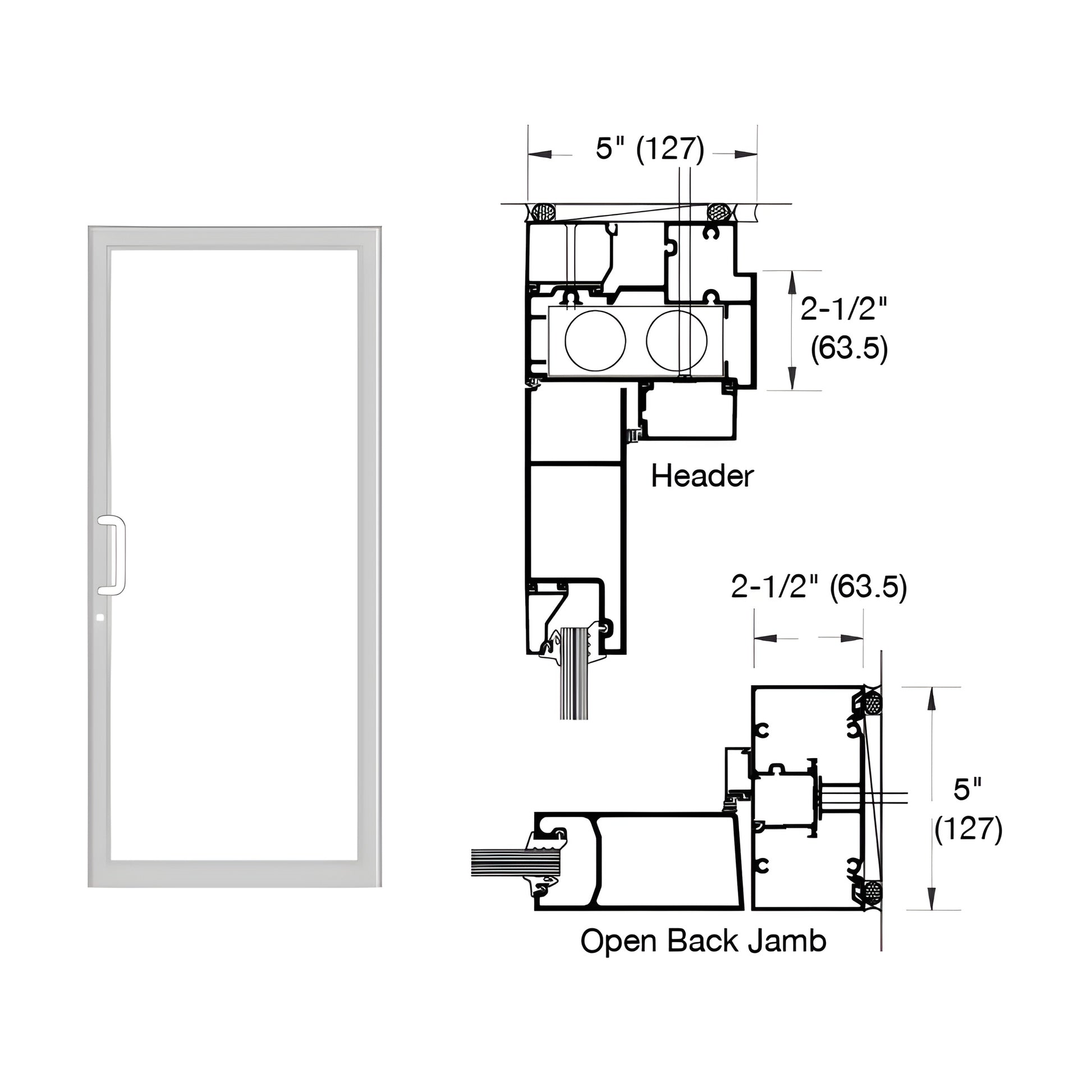

This Custom Single Up/Over Door Frame (SKU: 0F41411) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header to accept an overhead concealed closer. Hardware preparations include 1-1/2" pair of butt hinges and a standard deadbolt strike. Designed for hurricane impact applications where air-resistant thresholds are required.

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Need this custom hurricane impact door frame for your project? Contact CRL Customer Service or order SKU 0F41411 to get started.
