CRL-U.S. Aluminum IG500 Series Clear Anodized Class 1 Custom Up/Over Door Frame for Geared Hinge and Surface Closer

Product Details

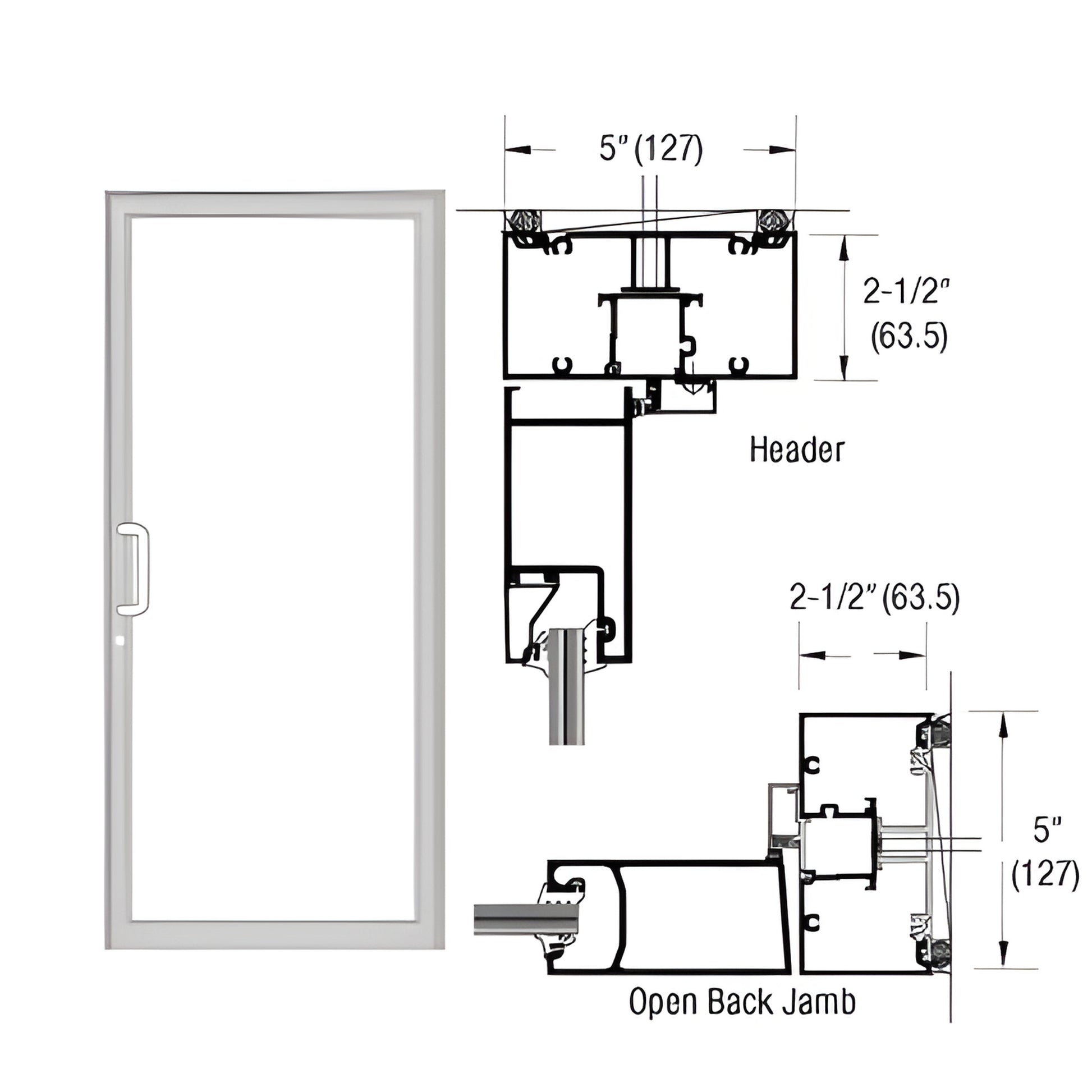

• 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Up and Over Impact Door Frame (Geared Hinge Not Included)
• Prepped for Standard Lock Strike
• Includes Air Resistant Threshold
• Optional Air/Water Resistant Threshold

This Custom Single Up/Over Door Frame is built to accommodate a single geared hinged hurricane impact door using 9/16" (14 mm) laminated Impact Glazing, Constructed using IG526/IG147/IG146 Door Jambs, IG552/IG046/IG047 Header, and TH811 Air Threshold, Hardware preparations include Geared Hinge, and Standard Deadbolt Strike.

When installing hurricane impact product always refer to FPA Guidelines.
