CRL-U.S. Aluminum IG500 Up/Over Door Frame Clear Anodized Geared Hinge
CRL-U.S. Aluminum IG500 Up/Over Door Frame Clear Anodized Geared Hinge
Regular price
$2,329.81 CAD
Regular price
Sale price
$2,329.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F42811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

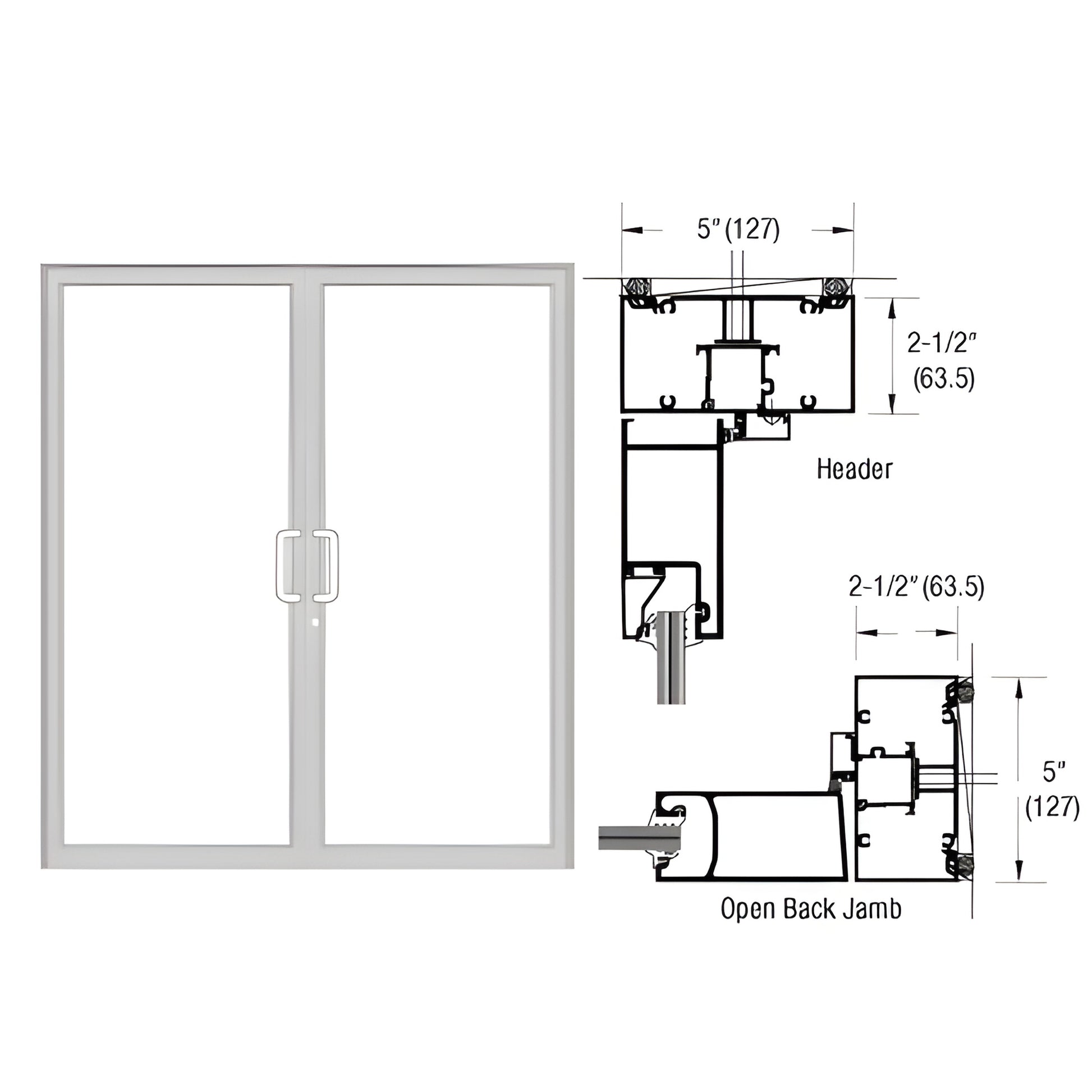

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged double up-and-over impact door frame (geared hinge not included)
- Prepped for standard flushbolt strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
Custom Double Up/Over Door Frame engineered for paired geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG147/IG146 door jambs and IG552/IG046/IG047 header. Hardware preparations include geared hinge locations and a standard flushbolt strike. Ideal for hurricane-rated exterior applications where an air-resistant threshold is required.
Always follow FPA Guidelines when installing hurricane impact products.
SKU: 0F42811 — Contact CRL Customer Service to confirm options and lead times, or add this custom hurricane impact door frame to your quote now.
