CRL-U.S. Aluminum IG500 Kynar® Transom Door Frame w/ Butt Hinge
CRL-U.S. Aluminum IG500 Kynar® Transom Door Frame w/ Butt Hinge
Regular price
$2,314.73 CAD
Regular price
Sale price
$2,314.73 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P61571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Prepped for 1-1/2 pair of butt hinges (hardware not included)
- Butt hinged transom impact door frame: 2-1/2" x 5" (63.5 x 127 mm)
- Prepped for standard CVR strike
- Includes TH811 air resistant threshold
- Optional air/water resistant threshold available

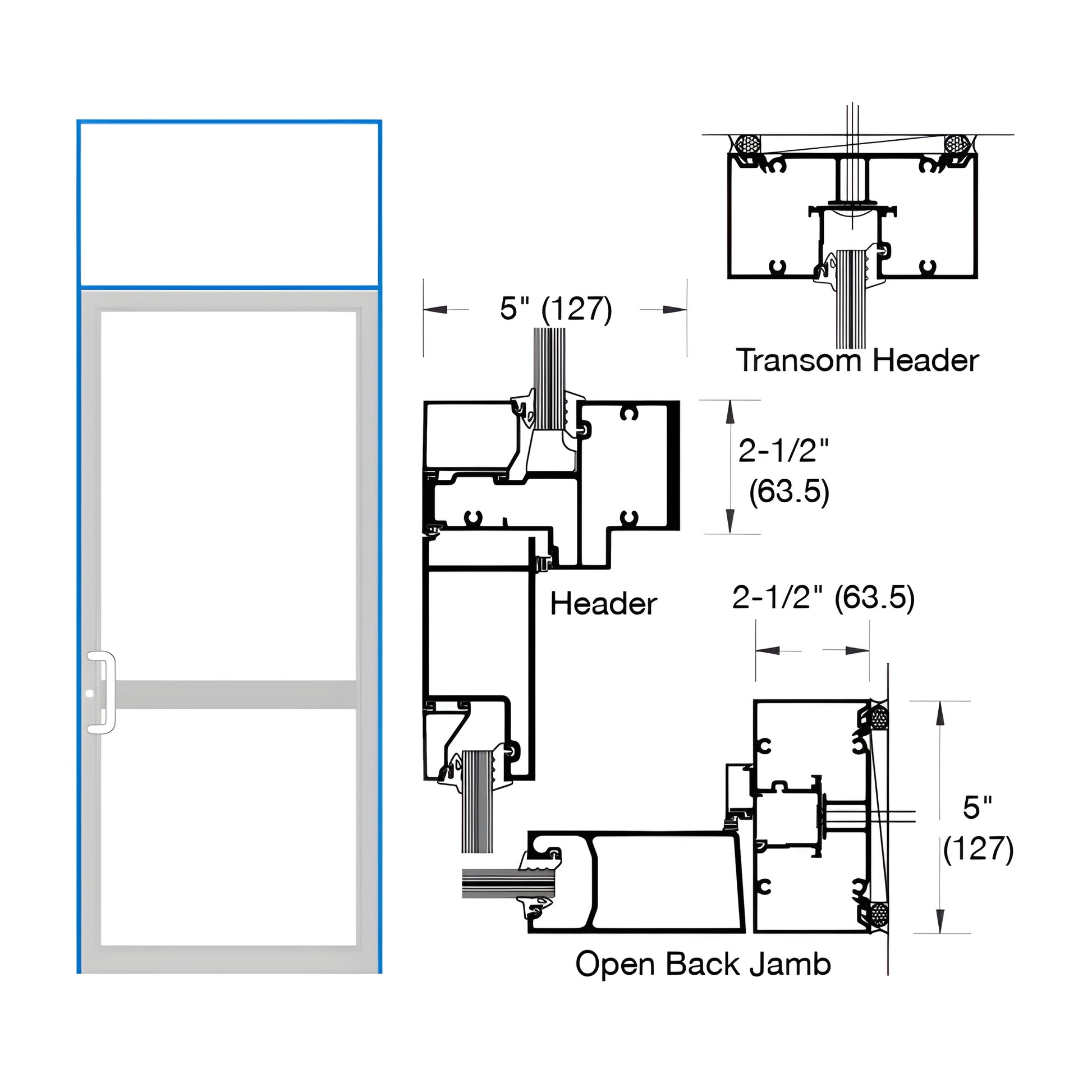

This Custom Single Transom Door Frame is engineered for a single butt-hinged CVR hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold. Hardware preparations include provisions for a 1-1/2" pair of butt hinges and a standard CVR panic strike. Ideal for hurricane-resistant entry systems and coastal construction projects requiring impact-rated transom frames.
When installing hurricane impact products always refer to FPA guidelines.
SKU: 0P61571. Order or request a quote today to confirm options and lead times.
