CRL-U.S. Aluminum IG500 2-Door Frames, Kynar, Trans. & Butt Hinge
CRL-U.S. Aluminum IG500 2-Door Frames, Kynar, Trans. & Butt Hinge
Regular price
$3,131.15 CAD
Regular price
Sale price
$3,131.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P62571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame for double transom installations
- Prepped for 1-1/2 pair of butt hinges (not included)
- Prepped for standard CVR strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available

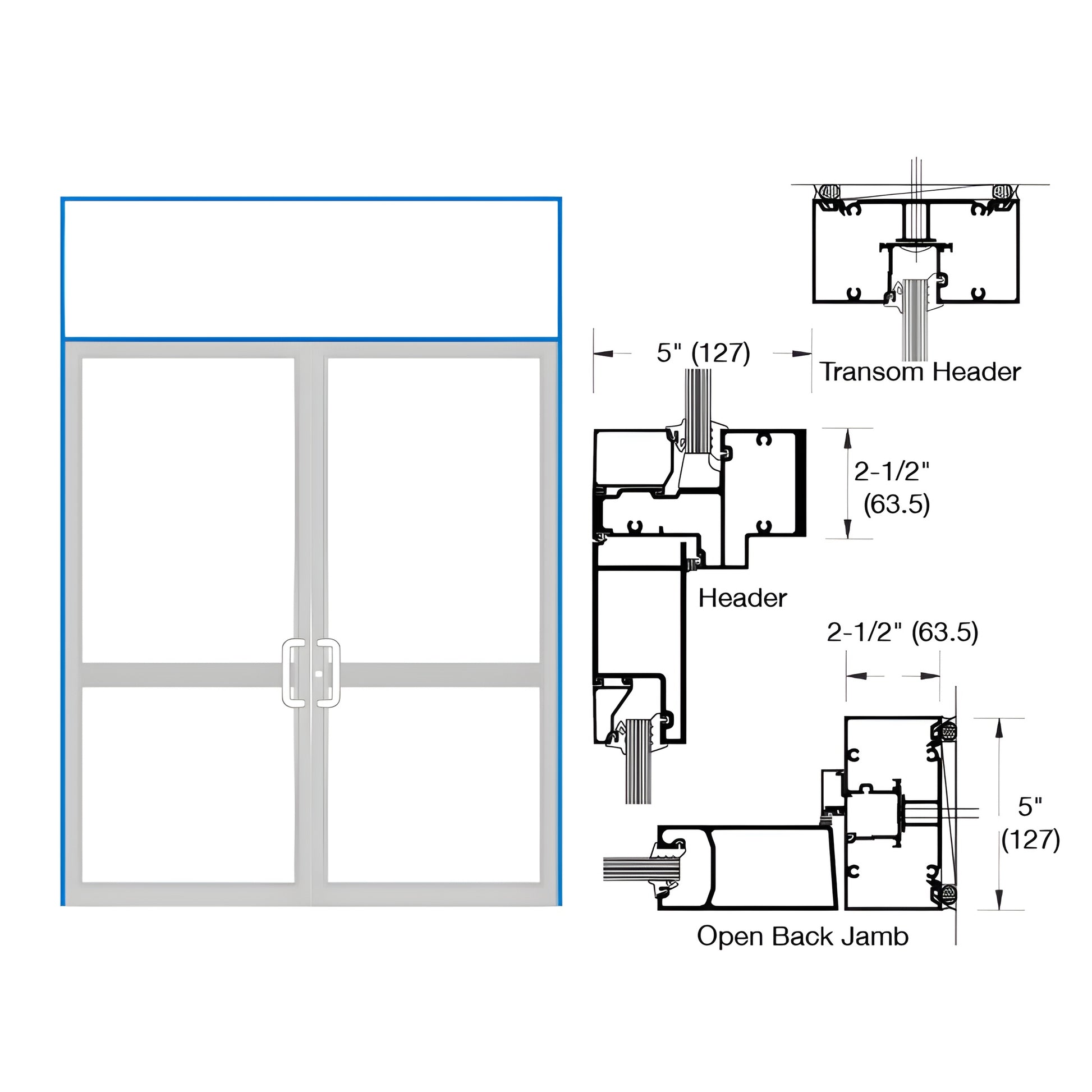

This Custom Double Transom Door Frame is engineered for hurricane impact applications and built to accept a pair of butt-hinged CVR impact doors using 9/16" (14 mm) laminated impact glazing. Constructed from IG526 door jambs with IG567/IG563 header and IG526/IG100 transom header, the assembly includes the TH811 air threshold. Hardware preparations: 1-1/2" pair of butt hinges and standard CVR panic strike. SKU: 0P62571.
When installing hurricane impact products, always refer to FPA guidelines for compliance and safety.
Choose this high-performance hurricane impact door frame for reliable air-resistance and prepped hardware compatibility — contact sales to order or request a quote.
