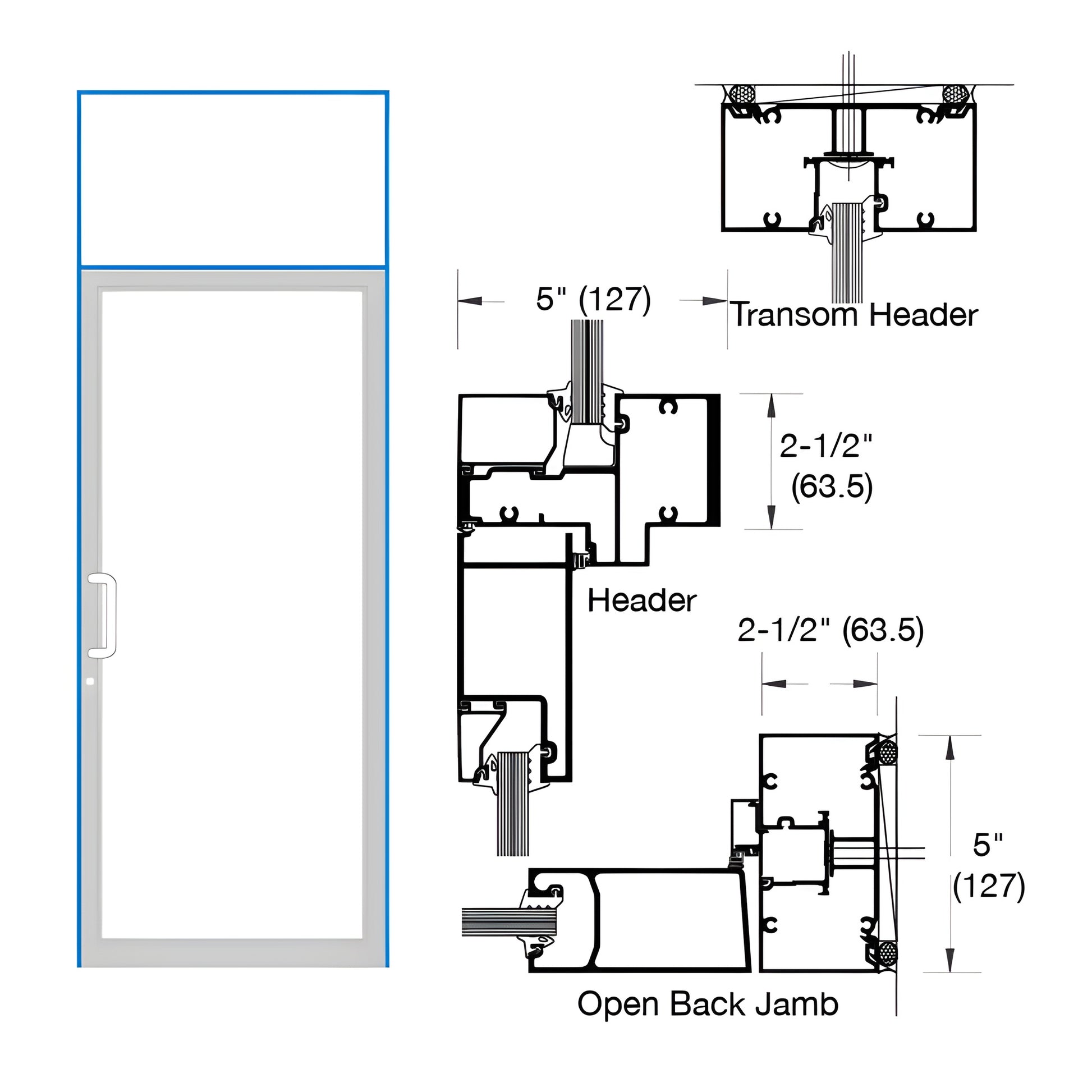

• Custom Kynar single transom impact door frame SKU 0F61571, 2-1/2" jamb, 5" transom head, air-resistant threshold.
1 1

CRL

CRL-U.S. Aluminum IG500 KYNAR® Painted Transom Butt-Hinge Door Frame

CRL-U.S. Aluminum IG500 KYNAR® Painted Transom Butt-Hinge Door Frame

$2,337.93 CAD
$2,337.93 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F61571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard lock strike
  • Includes air-resistant threshold (TH811)
  • Optional air/water-resistant threshold available

This Custom Single Transom Door Frame (SKU: 0F61571) is engineered for a single butt-hinged hurricane impact door and optimized for 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header and TH811 air threshold, the frame supports surface-mount closers and is prepped for standard lock strike and 1-1/2" pair of butt hinges.

Key differentiators: custom-fit transom frame for hurricane impact doors, built-in air-resistant threshold, hardware-ready prep for quick installation, and compatibility with laminated impact glazing—ideal for coastal and high-wind applications.

When installing hurricane impact products always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Order SKU 0F61571 — Contact CRL Customer Service to confirm options and lead time.
