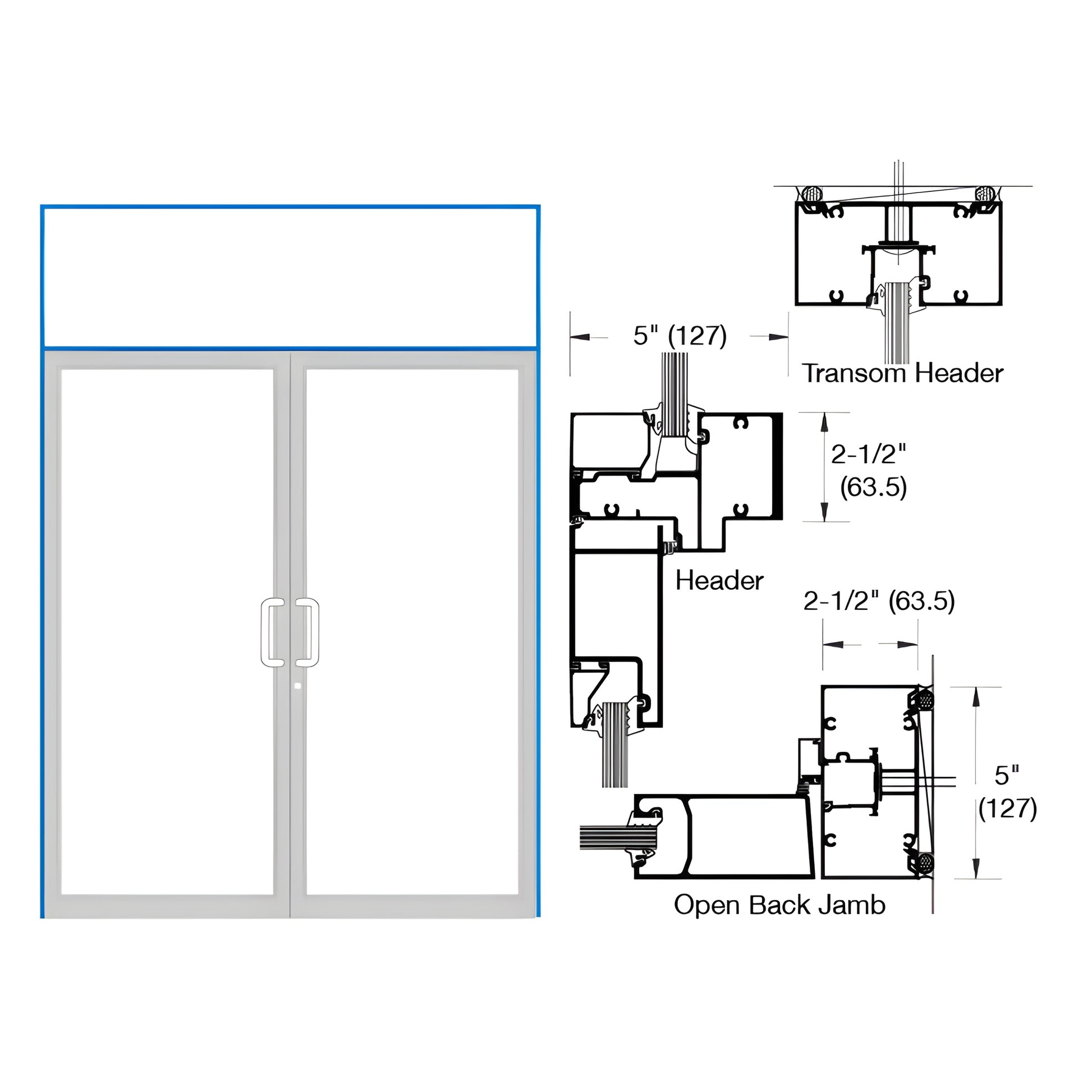

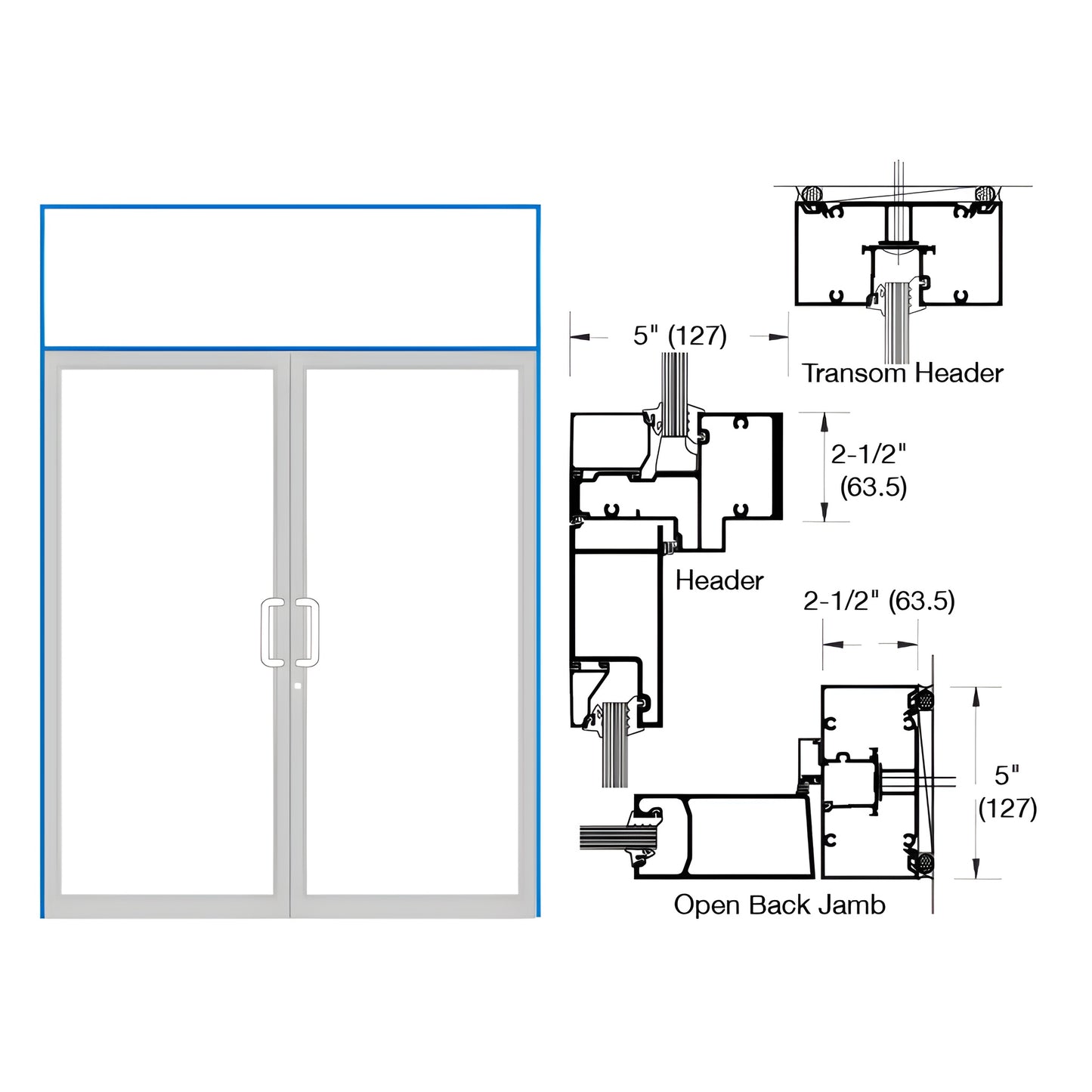

• Custom Kynar double transom impact door frame (SKU 0F62571) diagram showing dual doors, transom, jamb and header dimensions.
1 1

CRL

CRL-U.S. Aluminum IG500 2-Door Frame KYNAR® Paint Transom Hinge

CRL-U.S. Aluminum IG500 2-Door Frame KYNAR® Paint Transom Hinge

$3,140.41 CAD
$3,140.41 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0F62571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame for double transom doors
  • Prepped for 1-1/2" pair of butt hinges (not included)
  • Prepped for standard flush-bolts strike
  • Includes air resistant threshold (TH811)
  • Optional air/water resistant threshold available

This Custom Double Transom Door Frame (SKU: 0F62571) is engineered for hurricane impact performance and is designed to accept a pair of butt-hinged impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold, the frame includes hardware preparations for 1-1/2" pair butt hinges and standard flush-bolts. Ideal as a hurricane impact door frame for storefronts, coastal buildings, and high-wind regions, this butt hinged transom frame emphasizes durability, code-conscious preparation, and threshold options for air and water resistance.

When installing hurricane impact products always refer to FPA guidelines.
