CRL
CRL-U.S. Aluminum IG500 Kynar Transom Frame Butt Hinge/Concealed Closer
CRL-U.S. Aluminum IG500 Kynar Transom Frame Butt Hinge/Concealed Closer
Regular price
$2,772.81 CAD
Regular price
Sale price
$2,772.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

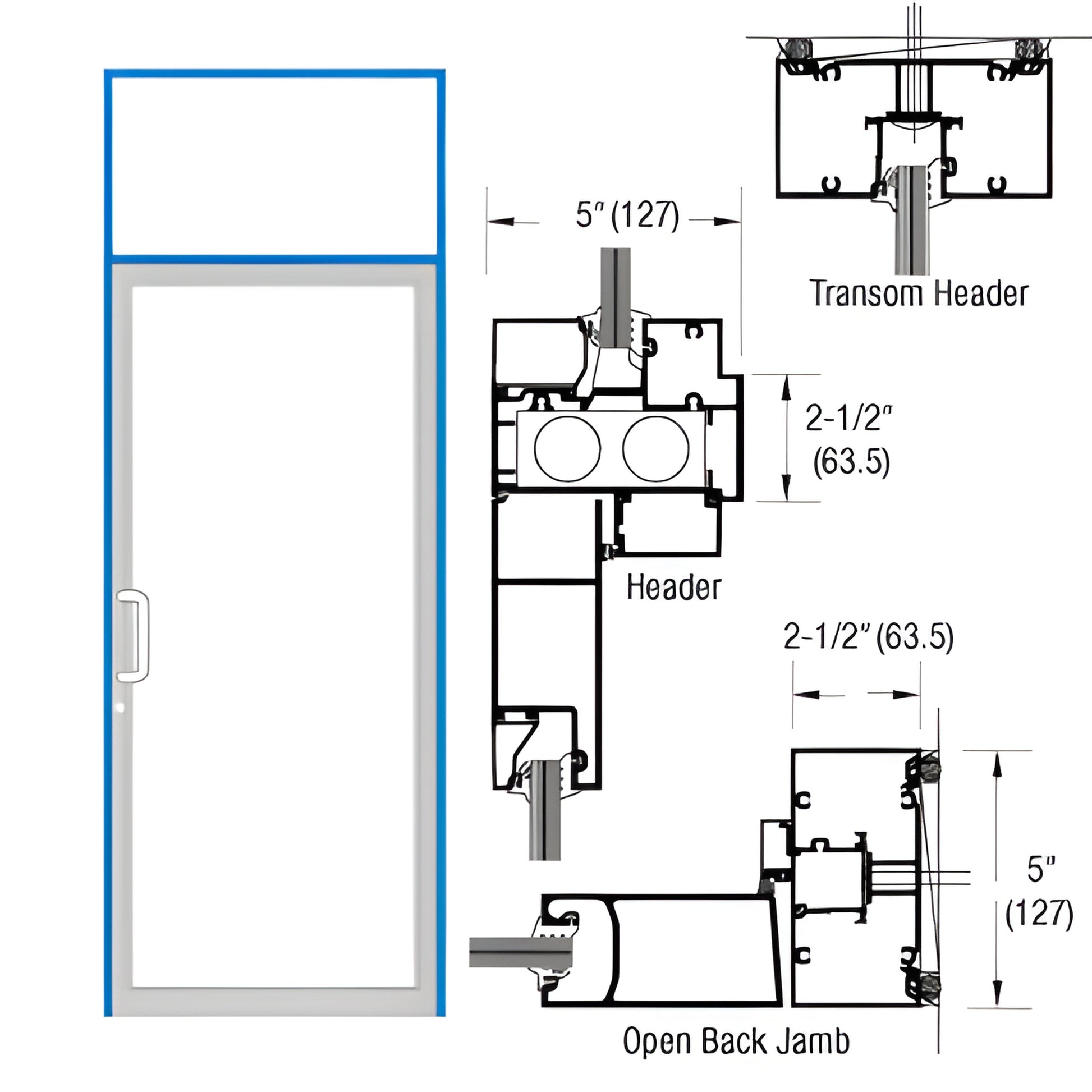

- 2-1/2" x 5" (63.5 x 127 mm) butt hinge transom door frame
- Prepared for 1-1/2" pair butt hinges (hinges not included)
- Prepped for overhead concealed closer and deadbolt strike
- Includes air resistant threshold; optional air/water resistant threshold available
This Custom Single Transom Door Frame (SKU: 0F61471) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header, it features an IG526 transom header, TH811 air threshold, and hardware prep for an overhead concealed closer, 1-1/2 pair butt hinges, and a standard deadbolt strike. Ideal for coastal and high-wind applications requiring a hurricane impact door frame with air-resistant threshold options and concealed closer preparation.
When installing hurricane impact products, always refer to FPA guidelines.
