CRL-U.S. Aluminum IG500 Kynar Transom Frame – CVR Panic & Concealed Closer
CRL-U.S. Aluminum IG500 Kynar Transom Frame – CVR Panic & Concealed Closer
Regular price
$3,566.02 CAD
Regular price
Sale price
$3,566.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P62471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

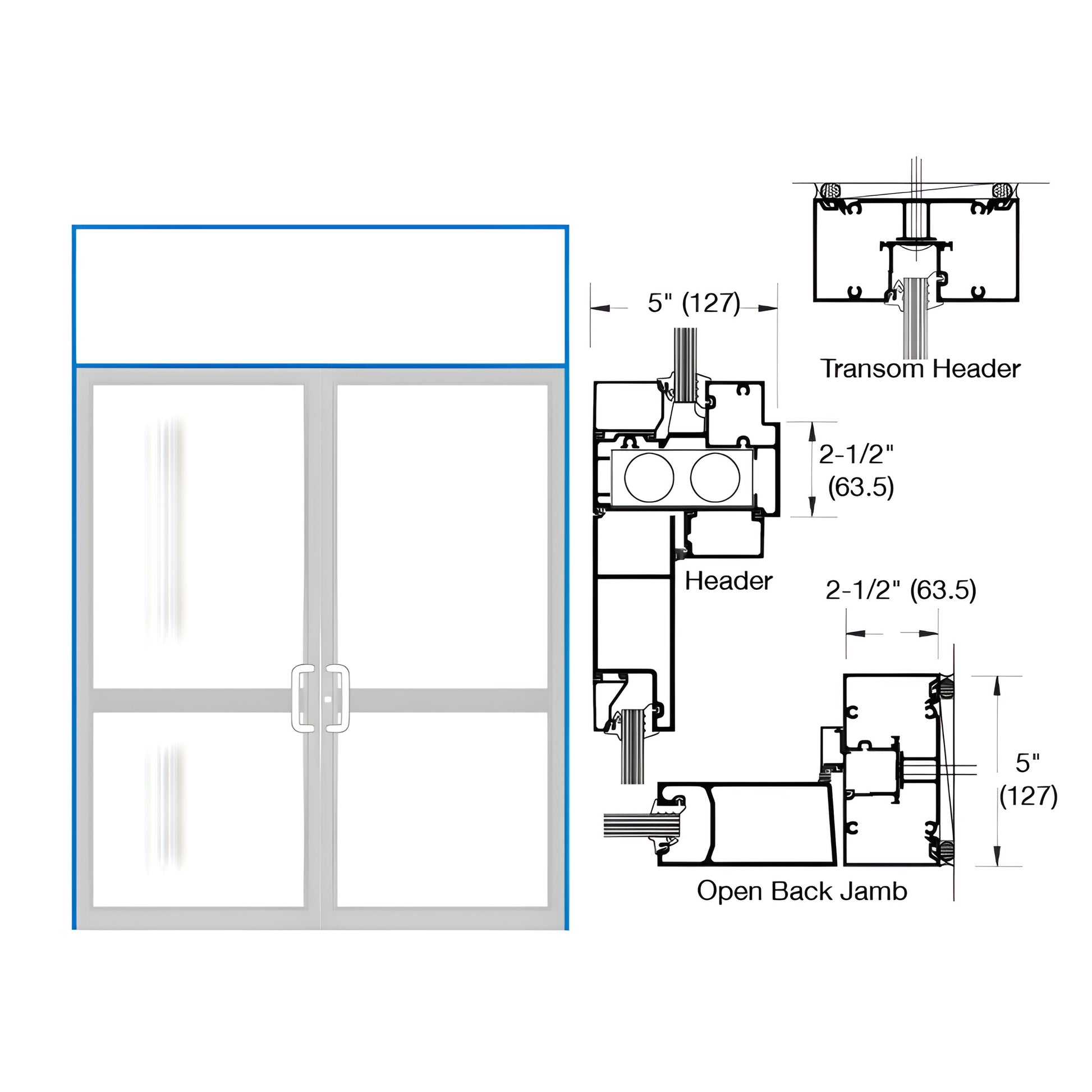

- 2-1/2" x 5" (63.5 x 127 mm) Transom Door Frame
- Prepared for 1-1/2" pair butt hinges (hinges not included)
- Prepared for overhead concealed closer and CVR panic strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
This Custom Double Transom Door Frame (SKU: 0P62471) is designed for pair butt-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header, IG526/IG100 transom header, and TH811 air threshold, it provides reinforced support and hurricane impact performance for coastal and high-wind installations. Hardware preparations include provisions for a 1-1/2" pair of butt hinges, an overhead concealed closer, and a standard CVR panic strike.
When installing hurricane impact products always refer to FPA Guidelines.
Highlights: Hurricane impact transom door frame, laminated 9/16" impact glazing compatible, air resistant threshold, prepped for concealed closer and panic hardware.
Contact CRL Customer Service or request a quote to confirm shipping weight and place your order.
