CRL-U.S. Aluminum IG500 Kynar® Transom Frame for Surface Closer
CRL-U.S. Aluminum IG500 Kynar® Transom Frame for Surface Closer
Regular price
$2,772.81 CAD
Regular price
Sale price
$2,772.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

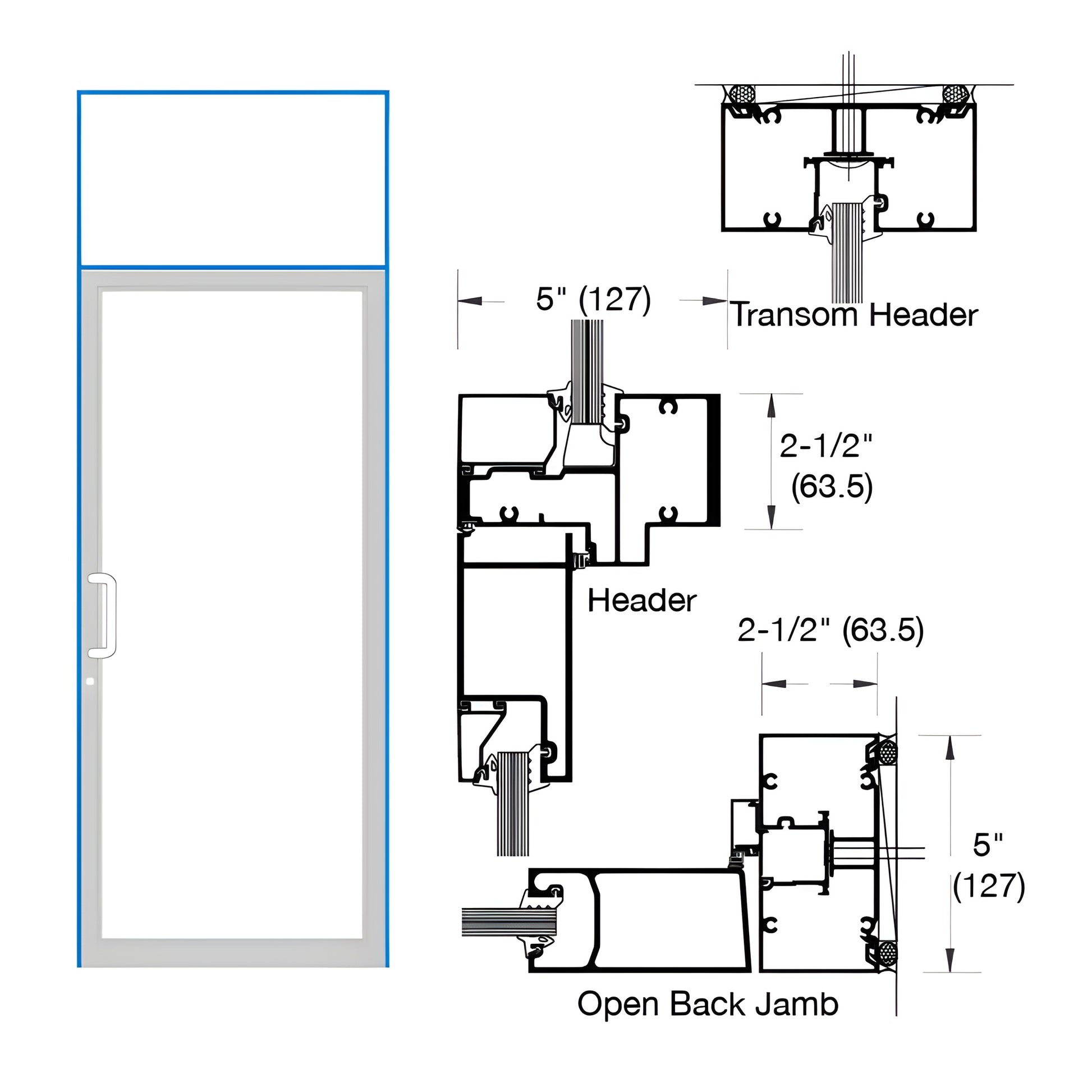

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame (geared hinge not included)
- Prepped for standard deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
This Custom Single Transom Door Frame (SKU: 0F61871) is engineered for geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG147/IG146 door jambs, IG567/IG563 header, IG526 transom header, and TH811 air threshold, it provides a durable, code-conscious solution for coastal and high-wind applications. Hardware preparations include geared hinge provisions and a standard deadbolt strike.
Always refer to FPA guidelines when installing hurricane impact products.
Contact CRL Customer Service to confirm options, shipping weight, or to order SKU 0F61871.
