CRL-U.S. Aluminum IG500 Transom Frame - KYNAR® Paint, Geared Hinge
CRL-U.S. Aluminum IG500 Transom Frame - KYNAR® Paint, Geared Hinge
Regular price
$2,554.77 CAD
Regular price
Sale price
$2,554.77 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P42871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

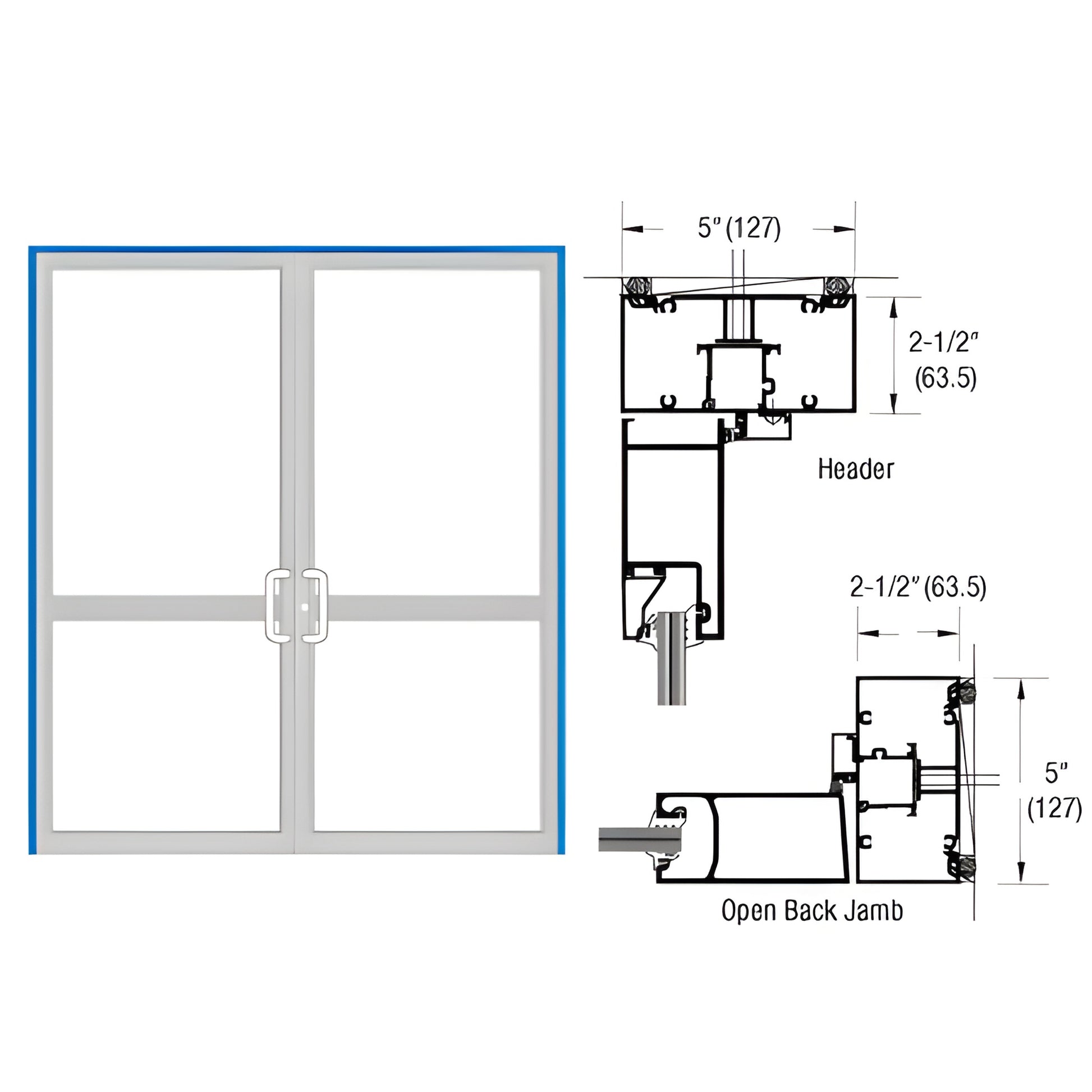

- 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame for surface mount closer
- Prepped for standard CVR strike
- Includes air resistant threshold
- Optional air/water resistant threshold available
This Custom Up/Over Door Frame (SKU: 0P42871) is engineered for paired geared-hinged CVR panic hurricane impact doors using 9/16" (14 mm) laminated impact glazing and a surface-mount closer. Constructed with IG526 door jambs, IG552 header, IG046/IG047 with NP801 door stop, IG567/IG563 header reinforcement, and TH811 air threshold. Hardware prep includes geared hinges and a standard CVR strike—providing a durable, impact-rated frame solution for coastal and high-wind applications.
Always follow FPA guidelines when installing hurricane impact products.
Need this hurricane impact door frame for your project? Contact CRL Customer Service to confirm specifications and place your order.
Specifications
