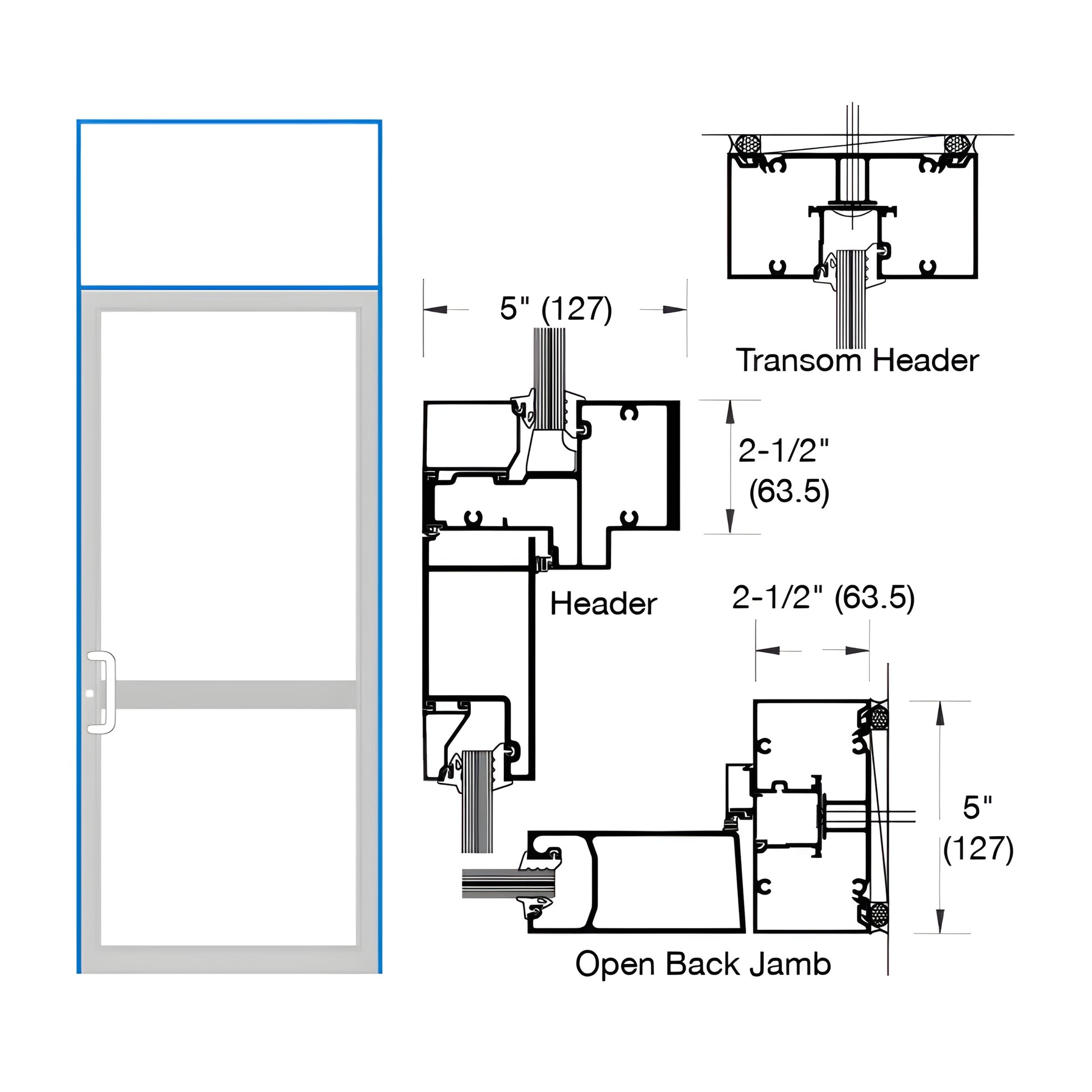

• Custom Kynar transom impact door frame SKU 0P61871 - technical drawing with 2-1/2" x 5" jamb/header dims.
1 1

CRL

CRL-U.S. Aluminum IG500 Custom KYNAR Transom Door Frame - Geared Hinge

CRL-U.S. Aluminum IG500 Custom KYNAR Transom Door Frame - Geared Hinge

$2,749.61 CAD
$2,749.61 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P61871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Custom Kynar

Overview

  • 2-1/2" x 5" (63.5 x 127 mm) geared hinged transom impact door frame for surface mount closer — geared hinge not included
  • Prepped for standard CVR strike
  • Includes TH811 air-resistant threshold
  • Optional air/water-resistant threshold available

This Custom Transom Door Frame (SKU: 0P61871) is engineered for a single geared-hinged CVR panic hurricane impact door using 9/16" (14 mm) laminated impact glazing and a surface-mount closer. Constructed from IG526 door jambs, IG526/IG100 header components, IG046/IG047 with NP801 door stop, IG567/IG563 header reinforcement, IG2526 transom header, and TH811 air threshold. Hardware preps include geared-hinge pockets and a standard CVR strike — ideal for hurricane impact transom installations and coastal commercial applications.

Differentiators: geared-hinge compatibility, prepped CVR strike, included air-resistant threshold, and support for laminated impact glazing for enhanced storm protection and code compliance.


When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Order the 0P61871 transom impact door frame today — contact CRL Customer Service to confirm options and shipping.
