Product Details
- Prepped for 1-1/2" Pair of Butt Hinges (Not Included)
- Prepped for CVR Panic Strike
- Includes Air Resistant Threshold
- Optional Air/Water Resistant Threshold

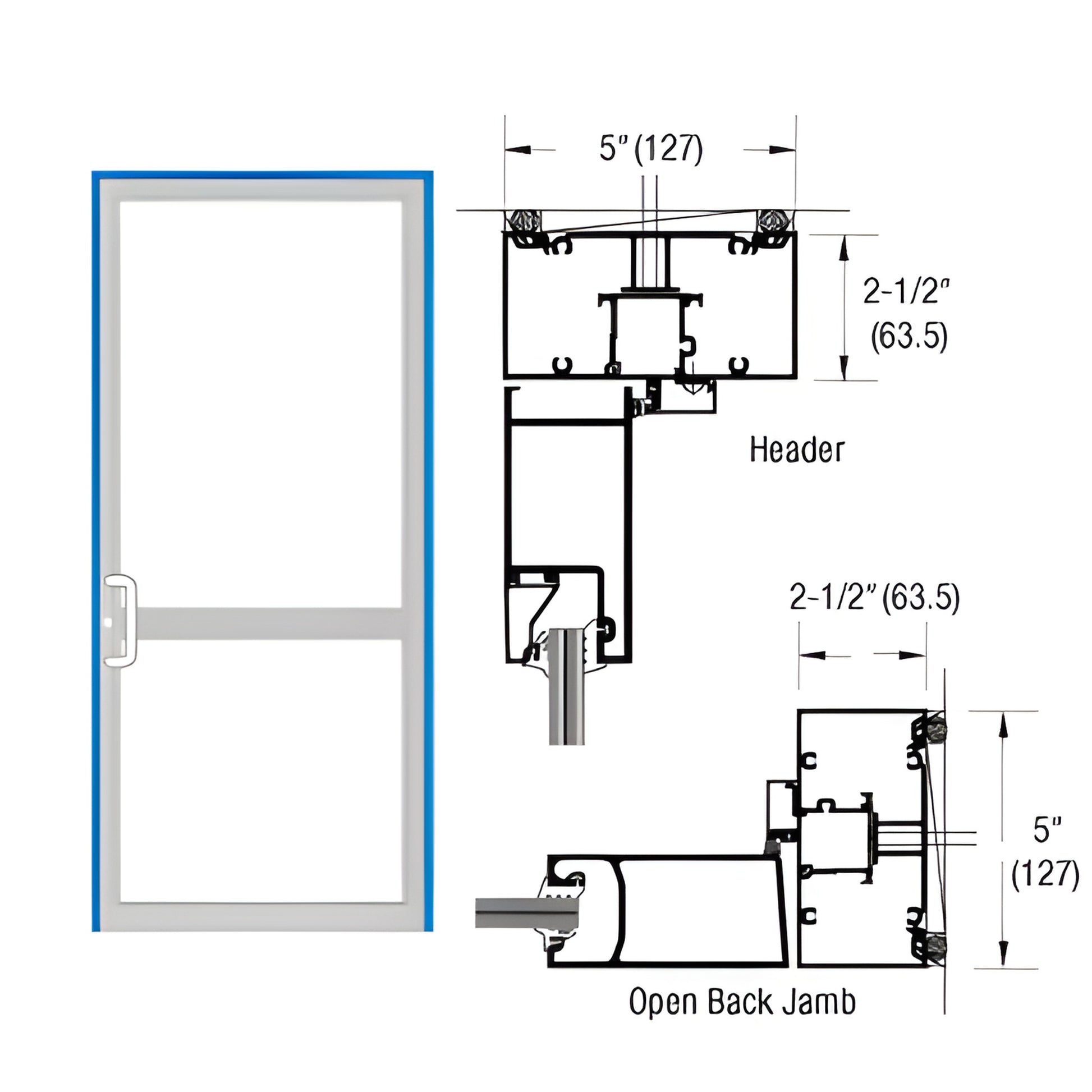

- 2-1/2" x 5" (63.5 x 127 mm) Butt Hinged Up and Over Impact Door Frame
This Custom Double Up/Over Door Frame is built to accommodate a single butt hinged CVR panic hurricane impact door for using 9/16" (14 mm) laminated impact glazing for surface mount closer, constructed using IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold, hardware preparations include 1-1/2" pair of butt hinges, standard CVR strike.
When installing hurricane impact product always refer to FPA Guidelines.
