CRL-U.S. Aluminum IG500 Door Frame - Custom KYNAR® Up/Over Butt-Hinge
CRL-U.S. Aluminum IG500 Door Frame - Custom KYNAR® Up/Over Butt-Hinge
Regular price
$1,679.22 CAD
Regular price
Sale price
$1,679.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F41571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

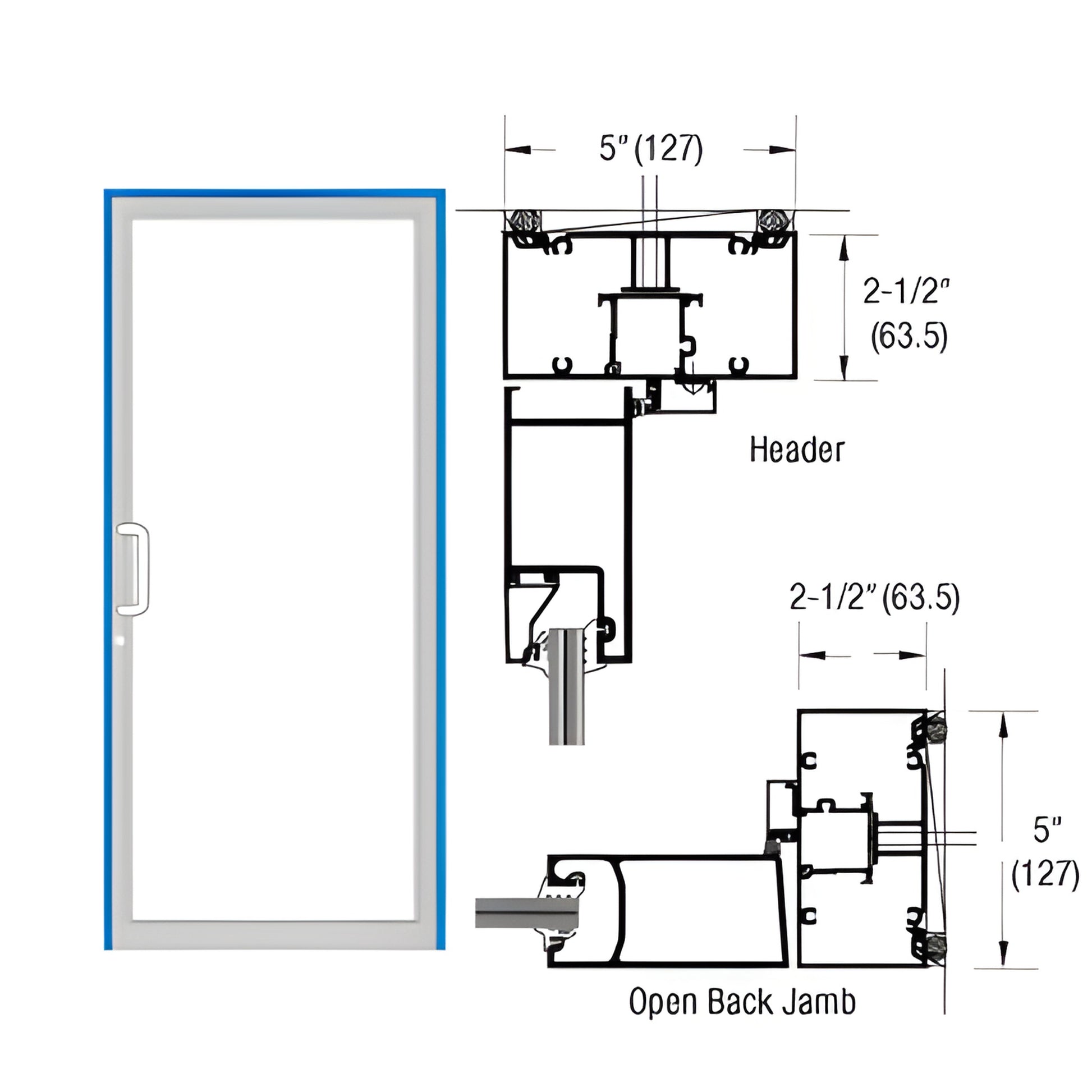

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged up-and-over hurricane impact door frame
- Prepped for 1-1/2 pair of butt hinges (not included)
- Prepped for standard lock strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
This Custom Single Up/Over Door Frame (SKU: 0F41571) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing and surface-mount closers. Constructed with IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, and TH811 air threshold. Hardware prep includes 1-1/2 pair of butt hinges and a standard lock strike.
When installing hurricane impact products, always follow FPA guidelines.
Order this durable, code-ready hurricane impact door frame (SKU: 0F41571) or contact CRL for a quote and installation guidance.
