CRL-U.S. Aluminum IG500 Door Frame, KYNAR, Concealed Closer
CRL-U.S. Aluminum IG500 Door Frame, KYNAR, Concealed Closer
Regular price
$2,114.11 CAD
Regular price
Sale price
$2,114.11 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F41471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- 2-1/2" x 5" (63.5 x 127 mm) butt hinge prep for up/over hurricane impact door frame
- Includes prep for 1-1/2" pair butt hinges (hinges not included)
- Includes prep for overhead concealed closer and deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available

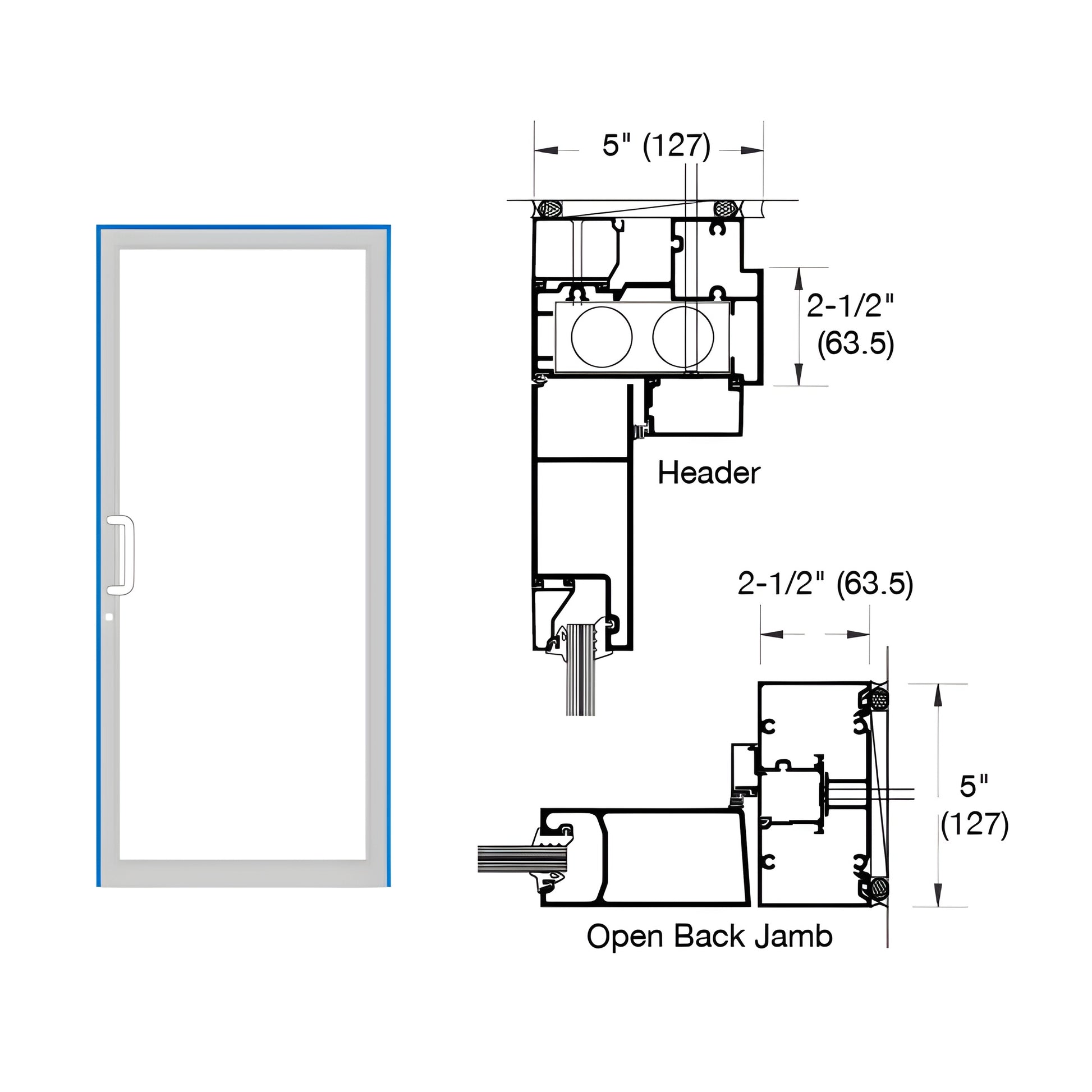

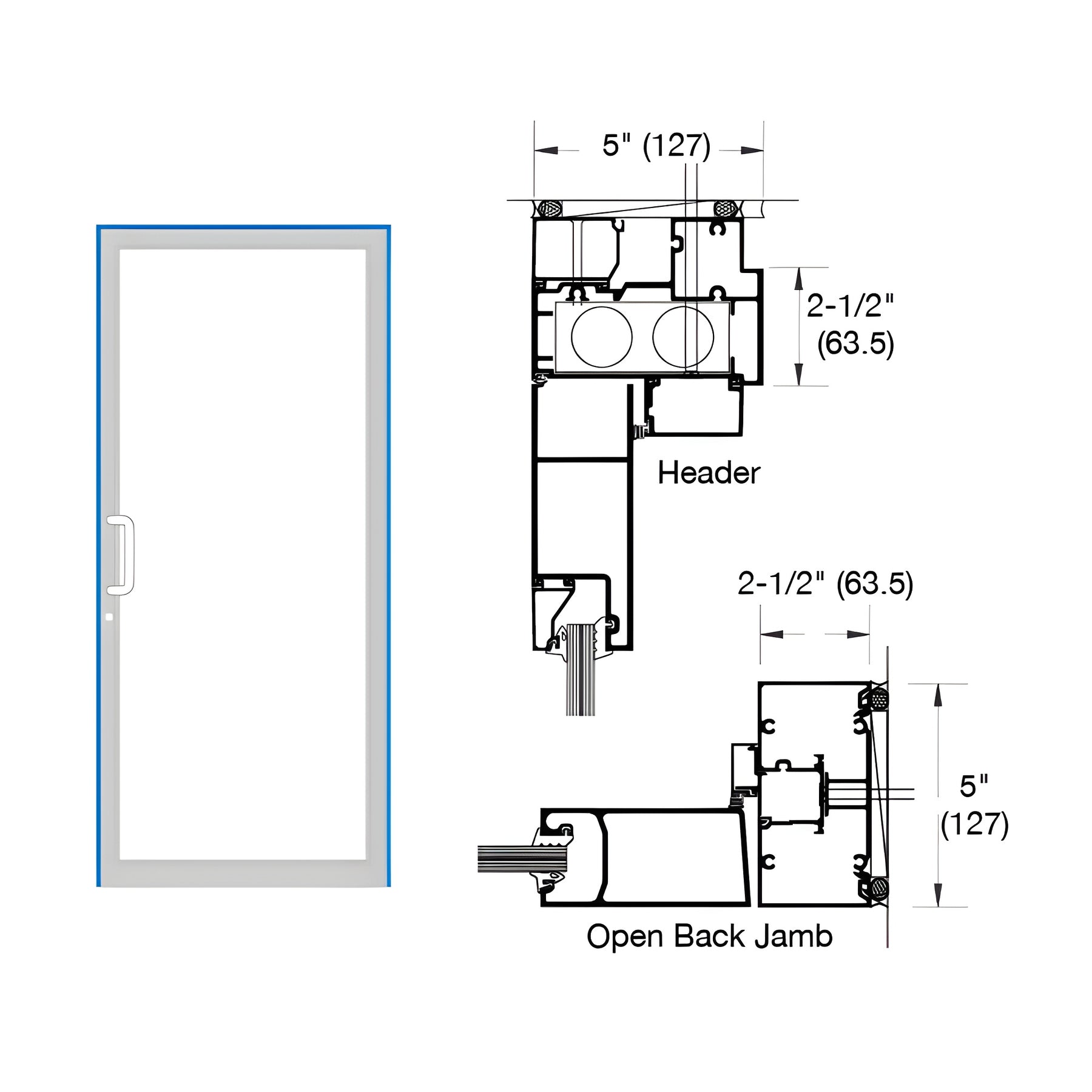

This Custom Single Up/Over Door Frame is engineered for hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Built from IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header to accommodate an overhead concealed closer, the frame features TH811 air threshold and standard deadbolt strike prep. Ideal for coastal and high-wind applications where certified impact resistance and airtight performance are required. SKU: 0F41471.
When installing hurricane impact products, always refer to FPA guidelines.
Order or request a quote for SKU 0F41471 to confirm availability and exact shipping weight.
Specifications
