CRL-U.S. IG500 Aluminum KYNAR Up/Over Door Frame with Concealed Closer
CRL-U.S. IG500 Aluminum KYNAR Up/Over Door Frame with Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F42471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

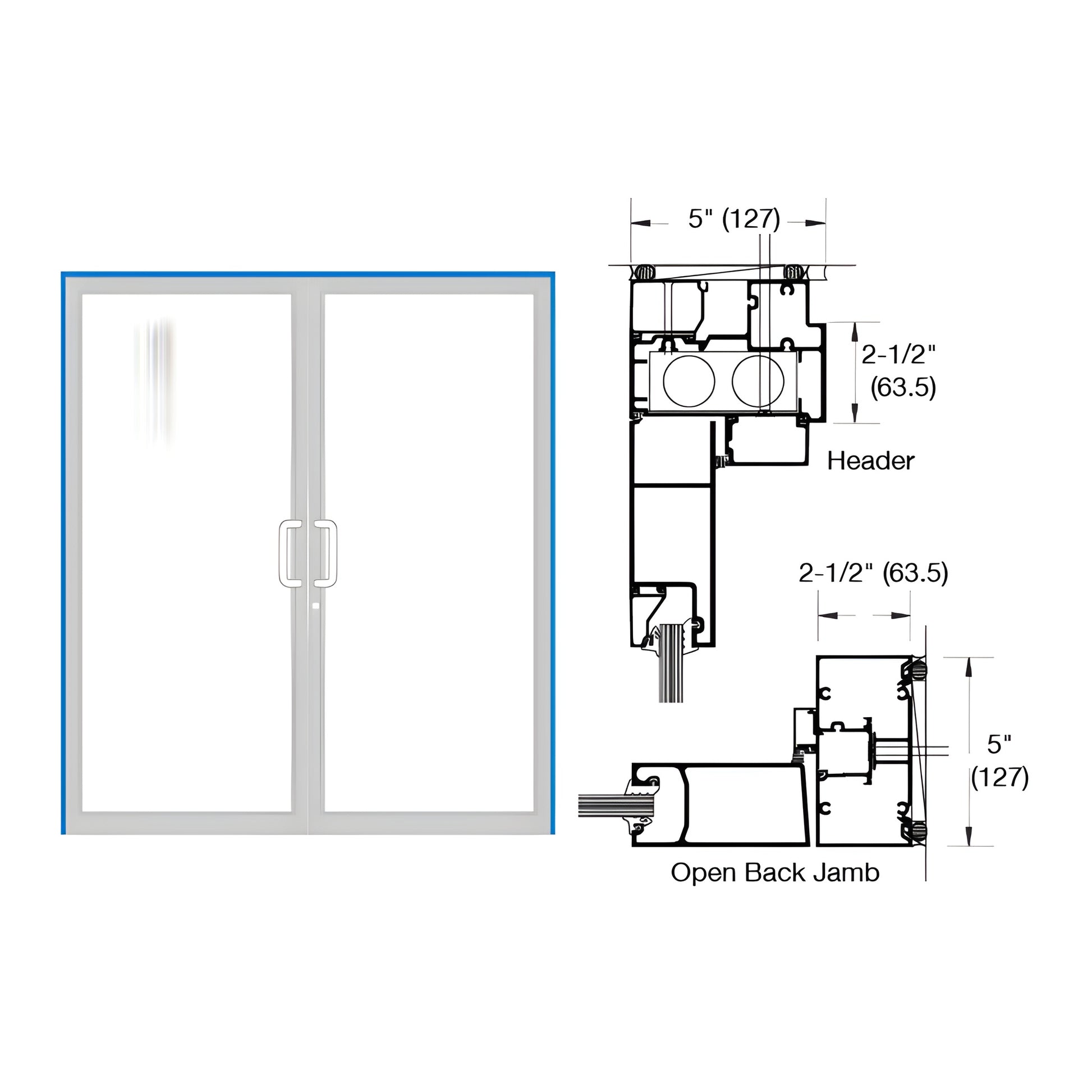

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over door frame
- Prep for 1-1/2" pair butt hinges (hinges not included)
- Prep for overhead concealed closer
- Includes TH811 air resistant threshold
- Optional air/water resistant threshold available
Custom Double Up/Over Door Frame — engineered for hurricane impact doors. Designed to accommodate a pair butt-hinged impact door with 9/16" (14 mm) laminated impact glazing. Constructed using IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header, and TH811 air threshold. Hardware preparations include 1-1/2" pair butt hinges, overhead concealed closer, and standard deadbolt strike.
Highlights: built for hurricane impact performance, integrated air-resistant threshold, and factory preparations for common commercial hardware — ideal for coastal and high-wind installations requiring laminated impact glazing.
Always follow FPA Guidelines when installing hurricane impact products.
SKU: 0F42471
Contact CRL Customer Service to confirm options or request a quote.
