CRL-U.S. IG500 KYNAR Aluminum Up/Over Door Frame - Butt Hinge, Panic
CRL-U.S. IG500 KYNAR Aluminum Up/Over Door Frame - Butt Hinge, Panic
Regular price
$2,090.91 CAD
Regular price
Sale price
$2,090.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P41471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

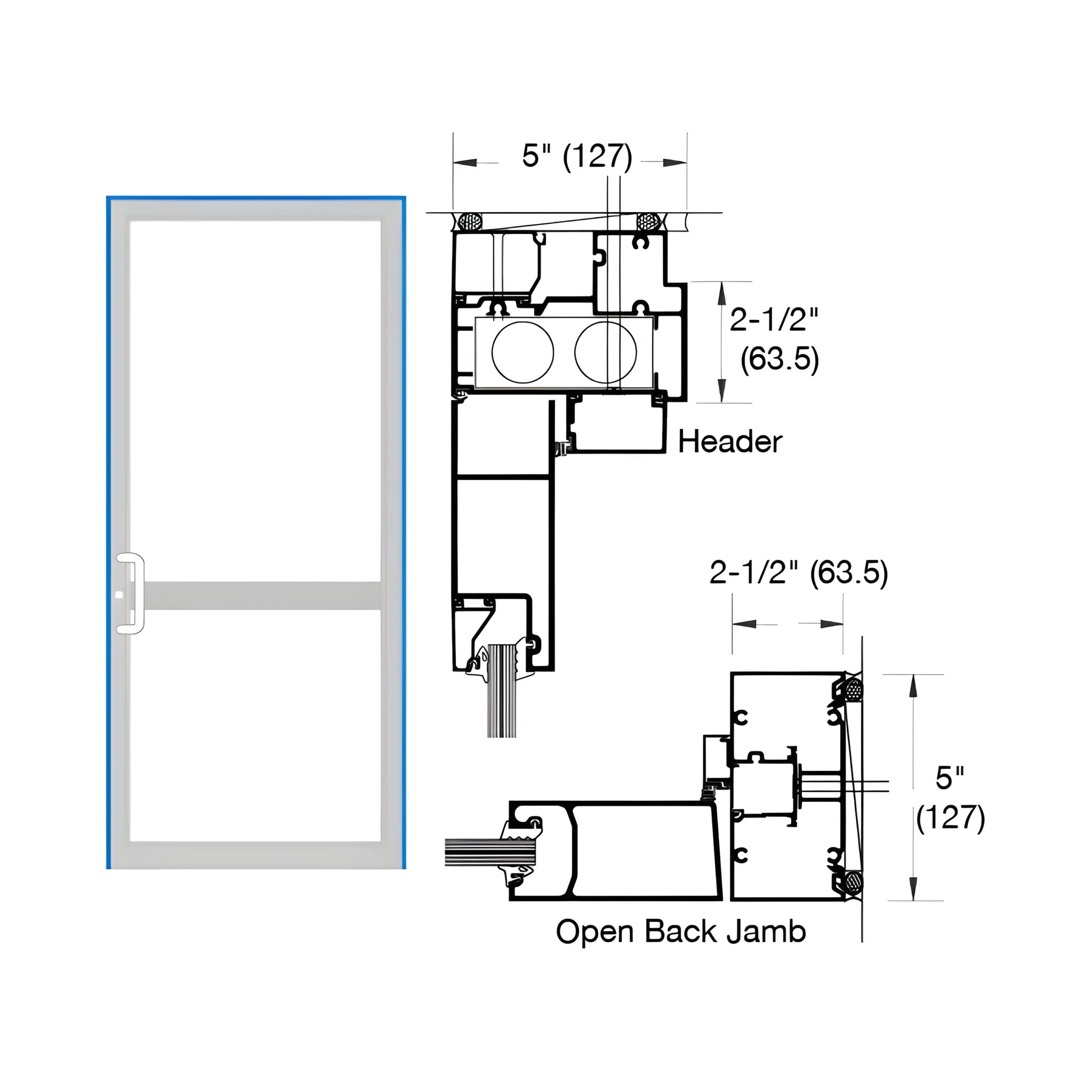

- 2-1/2" x 5" (63.5 x 127 mm) Up/Over Door Frame
- Includes prep for 1-1/2" pair butt hinges (hinges not included)
- Includes prep for overhead concealed closer and CVR panic strike
- Includes air resistant threshold; optional air/water resistant threshold available
Custom Single Up/Over Door Frame — built for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs, IG577/IG563/IG200 header, and TH811 air threshold. Hardware preparations include 1-1/2" pair butt hinge prep, overhead concealed closer prep, and standard CVR panic strike prep.
Ideal for coastal and hurricane-prone applications — engineered as a hurricane impact door frame with air resistant threshold and optional air/water resistant upgrade for enhanced weather protection.
Always follow FPA Guidelines when installing hurricane impact products.
SKU: 0P41471
Need this frame for a specific project? Contact CRL Customer Service to confirm options and place your order today.
