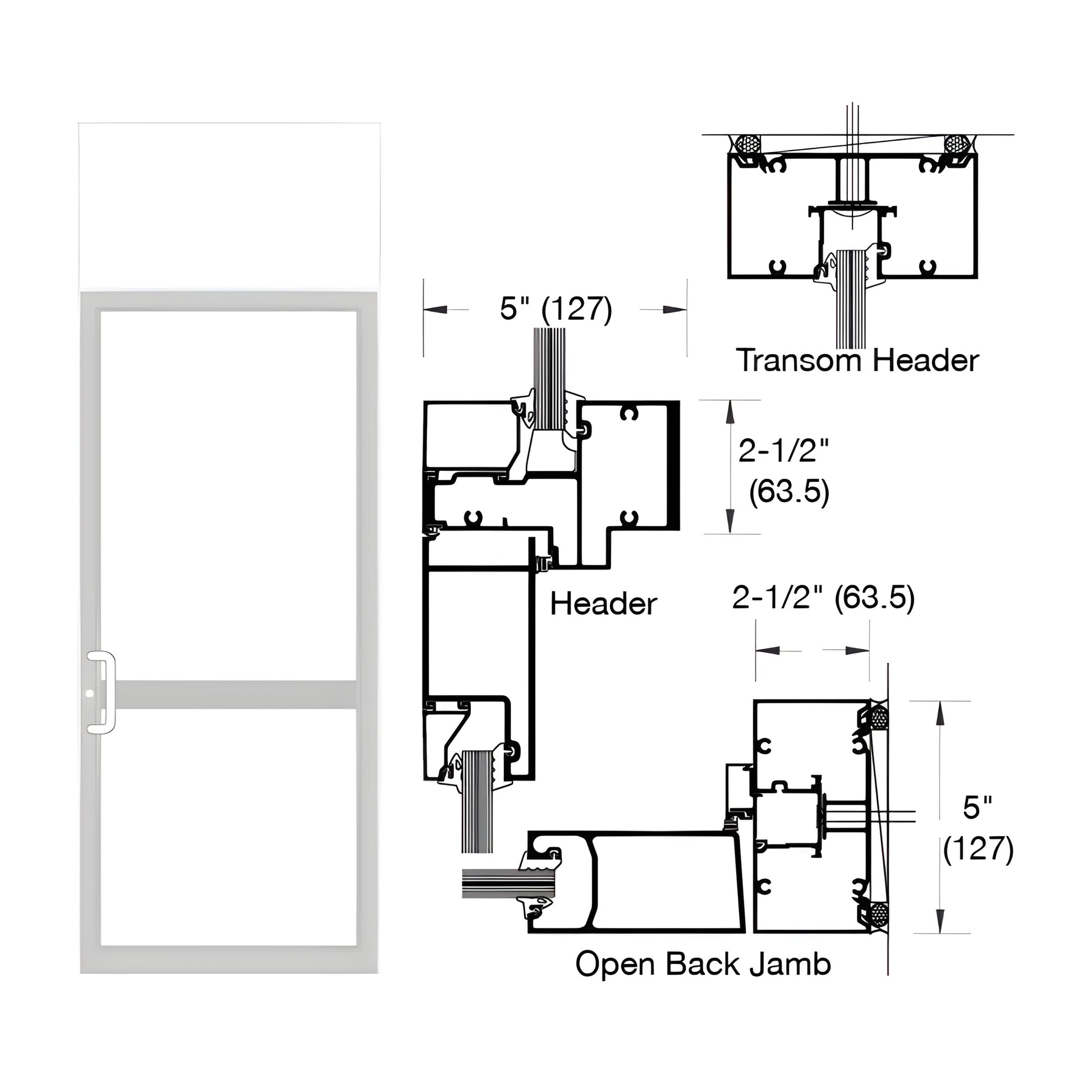

• White Kynar transom door frame, SKU 0P61552 - butt-hinged impact frame with air-resistant threshold.
1 1

CRL

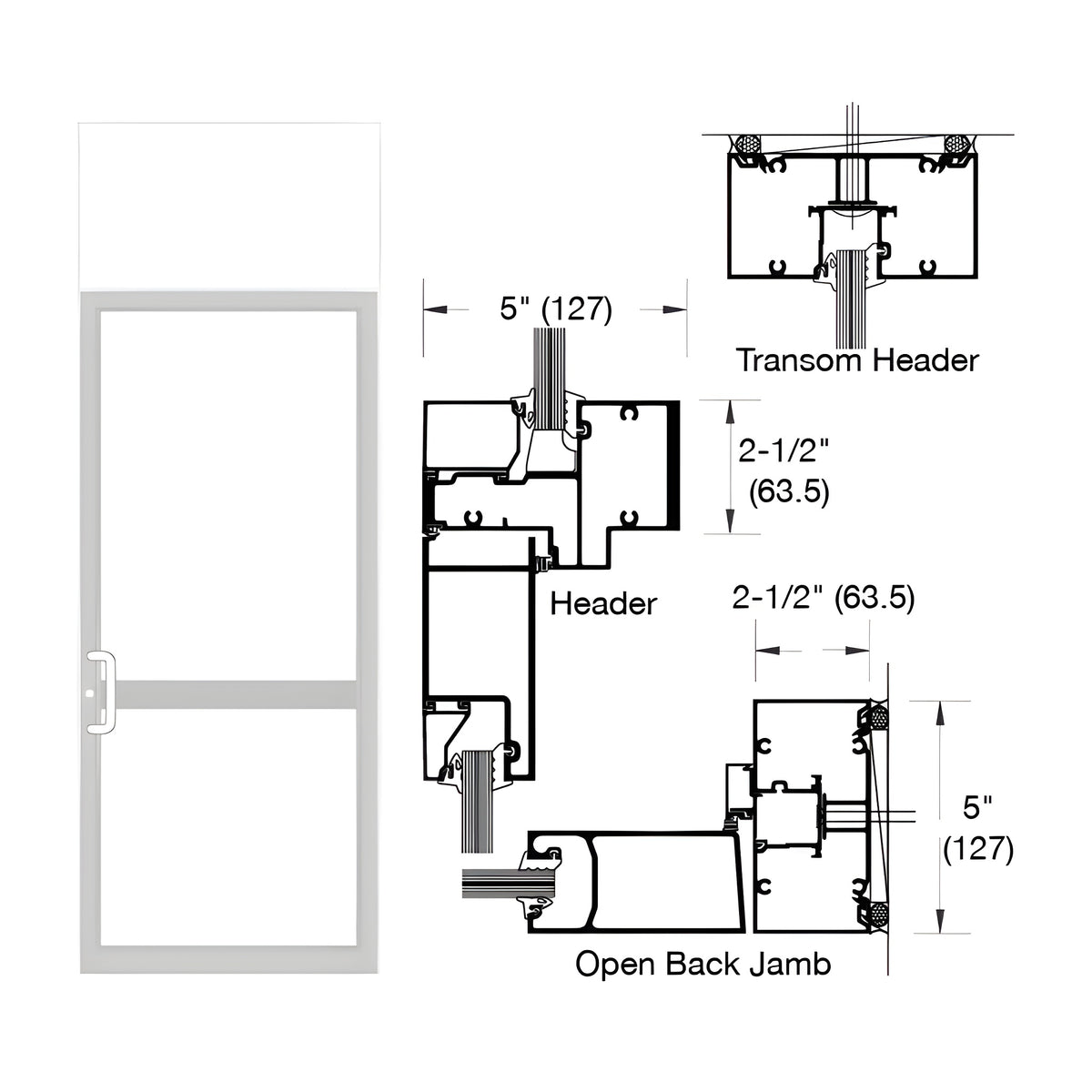

CRL-U.S. Aluminum IG500 White KYNAR® Transom Door Frame w/ Butt Hinge

CRL-U.S. Aluminum IG500 White KYNAR® Transom Door Frame w/ Butt Hinge

$2,314.73 CAD
$2,314.73 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P61552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Prepped for 1-1/2 pair of butt hinges (hinges not included)
  • 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame
  • Prepped for standard CVR strike
  • Includes air resistant threshold (TH811)
  • Optional air/water resistant threshold available

This Custom Single Transom Door Frame (SKU: 0P61552) is engineered for a single butt-hinged CVR hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold, the frame is prepped for surface-mount closers and includes hardware preparations for a 1-1/2" pair of butt hinges and a standard CVR panic strike. Ideal for coastal and high-wind applications requiring a durable hurricane impact door frame and butt-hinged transom solution.

Always follow applicable FPA guidelines when installing hurricane impact products.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.


Ready to specify? Contact CRL or add SKU 0P61552 to your quote now.
