CRL-U.S. Aluminum IG500 White Kynar 2-Dr Transom Frame w/ Butt Hinge
CRL-U.S. Aluminum IG500 White Kynar 2-Dr Transom Frame w/ Butt Hinge
Regular price
$3,131.15 CAD
Regular price
Sale price
$3,131.15 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0P62552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

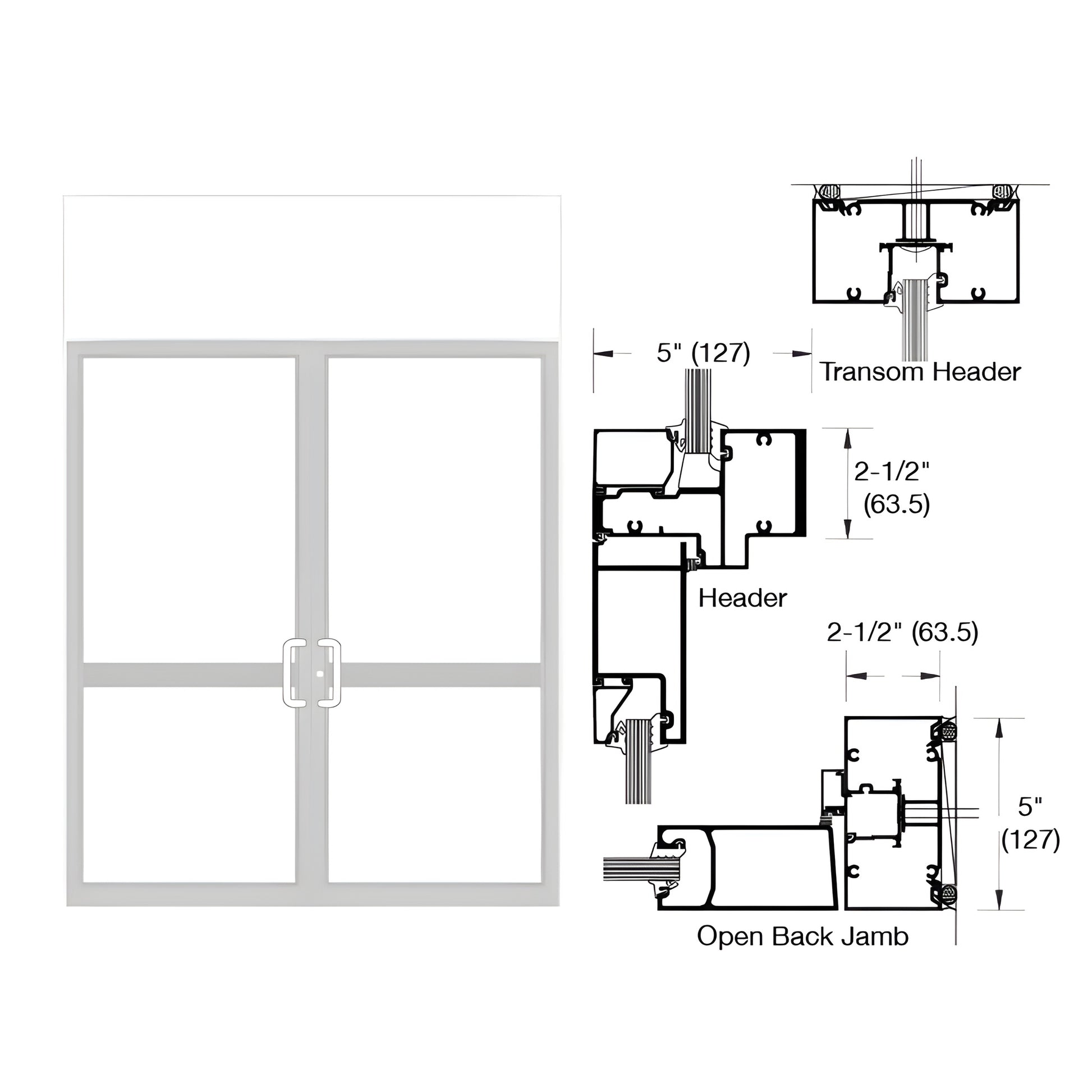

- 2-1/2" x 5" (63.5 x 127 mm) Butt-Hinged Transom Impact Door Frame
- Prepped for 1-1/2" pair of butt hinges (hinges not included)
- Prepped for standard CVR panic strike
- Includes air-resistant threshold (TH811)
- Optional air/water-resistant threshold available
- SKU: 0P62552
This Custom Double Transom Door Frame is engineered for hurricane impact installations and accommodates a pair of butt-hinged CVR impact doors using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 threshold. Hardware preparations include provisions for a surface-mount closer, 1-1/2" pair of butt hinges, and a standard CVR panic strike—ideal for coastal and high-wind applications requiring certified impact door framing.
When installing hurricane impact products, always refer to FPA guidelines for proper compliance and performance.
Ready to specify this hurricane-rated butt-hinged transom door frame? Contact CRL Customer Service for quotes, lead times, and installation guidance.
