CRL-U.S. Aluminum IG500 White Kynar Custom Transom Frame Butt Hinge
CRL-U.S. Aluminum IG500 White Kynar Custom Transom Frame Butt Hinge
Regular price
$2,337.93 CAD
Regular price
Sale price
$2,337.93 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

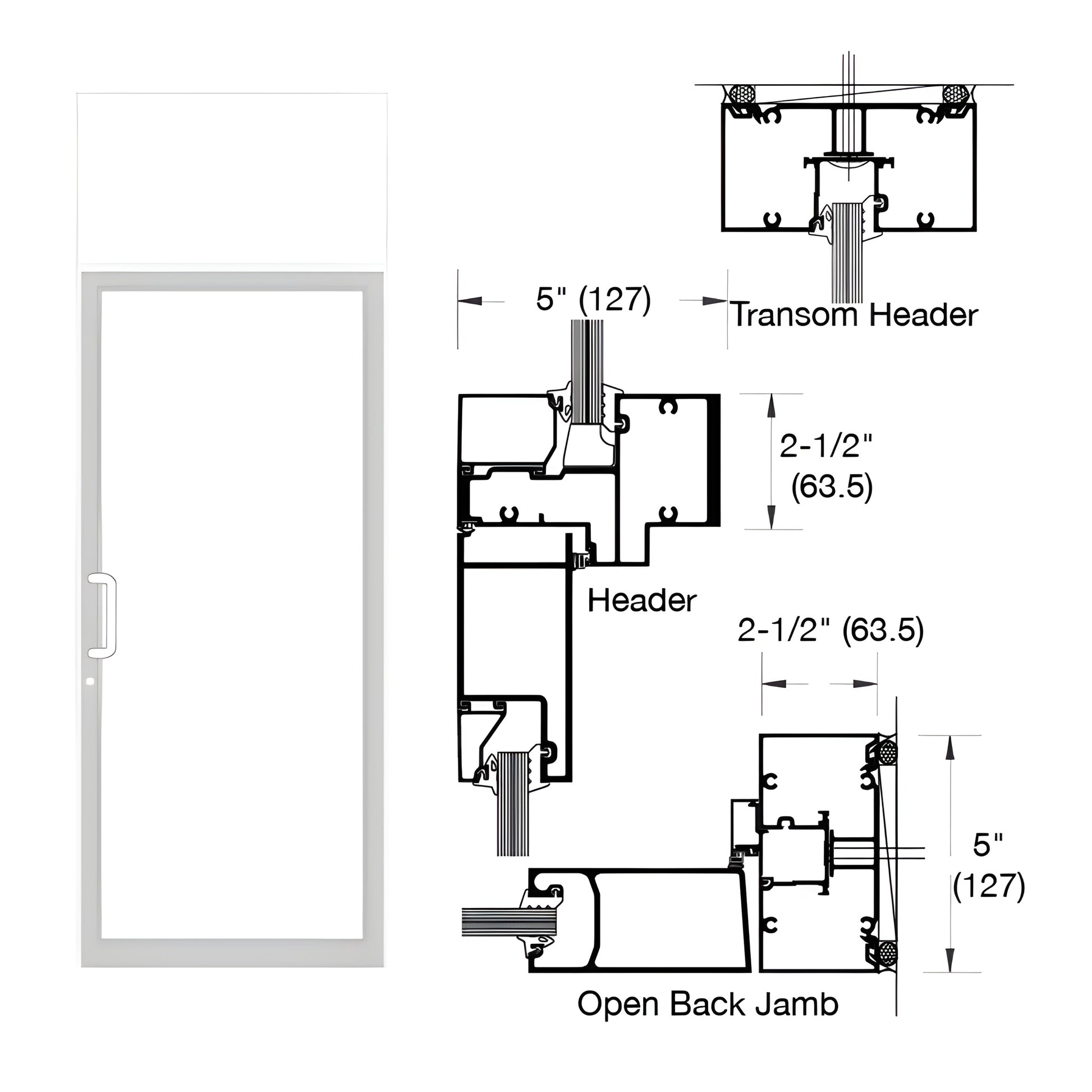

- 2-1/2" x 5" (63.5 x 127 mm) butt-hinged transom impact door frame — model SKU: 0F61552
- Prepped for 1-1/2" pair of butt hinges (not included)
- Prepped for standard lock strike
- Includes air resistant threshold; optional air/water resistant threshold available
This Custom Single Transom Door Frame is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526 door jambs, IG567/IG563 header, IG526/IG100 transom header, and TH811 air threshold, the frame is designed for surface-mount closers and is prepped for standard hardware (1-1/2" pair of butt hinges and standard lock strike). Ideal for coastal and hurricane-prone installations where a certified impact door frame is required.
When installing hurricane impact products always refer to FPA Guidelines.
Need this frame for a specific hurricane impact application? Contact us to confirm specs and place your order.
Specifications
