CRL-U.S. Aluminum IG500 Transom Door Frame KYNAR White - Butt Hinge
CRL-U.S. Aluminum IG500 Transom Door Frame KYNAR White - Butt Hinge
Regular price
$2,772.81 CAD
Regular price
Sale price
$2,772.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview

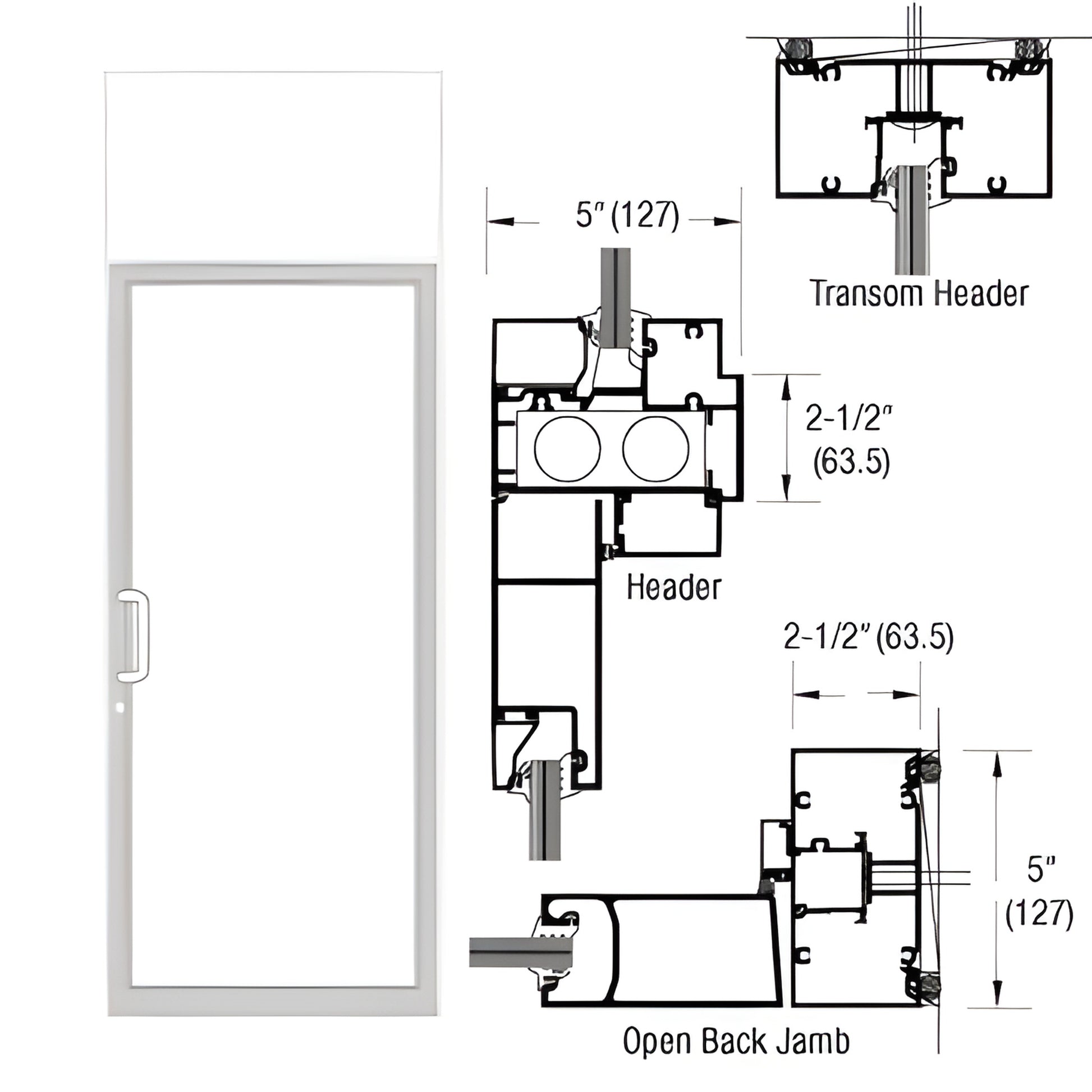

- 2-1/2" x 5" (63.5 x 127 mm) butt hinges transom door frame
- Prepared for 1-1/2" pair butt hinges (hardware not included)
- Prepped for overhead concealed closer and deadbolt strike
- Includes TH811 air resistant threshold; optional air/water resistant threshold available
This Custom Single Transom Door Frame (SKU: 0F61452) is engineered for a single butt-hinged hurricane impact door using 9/16" (14 mm) laminated impact glazing. Constructed with IG526/IG047/IG046 door jambs and IG577/IG563/IG200 header, it includes IG526 transom header and is prepped for an overhead concealed closer and standard deadbolt strike. Ideal for coastal and high-wind installations where an air resistant or air/water resistant threshold is required.
When installing hurricane impact products, always refer to FPA Guidelines.
Order or request a quote for SKU 0F61452 to confirm specifications and shipping.
