CRL-U.S. Aluminum IG500 White Kynar Transom Frame for Geared Hinge
CRL-U.S. Aluminum IG500 White Kynar Transom Frame for Geared Hinge
Regular price
$2,772.81 CAD
Regular price
Sale price
$2,772.81 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 0F61852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Prepped for standard deadbolt strike
- Includes air-resistant threshold
- Optional air/water-resistant threshold available

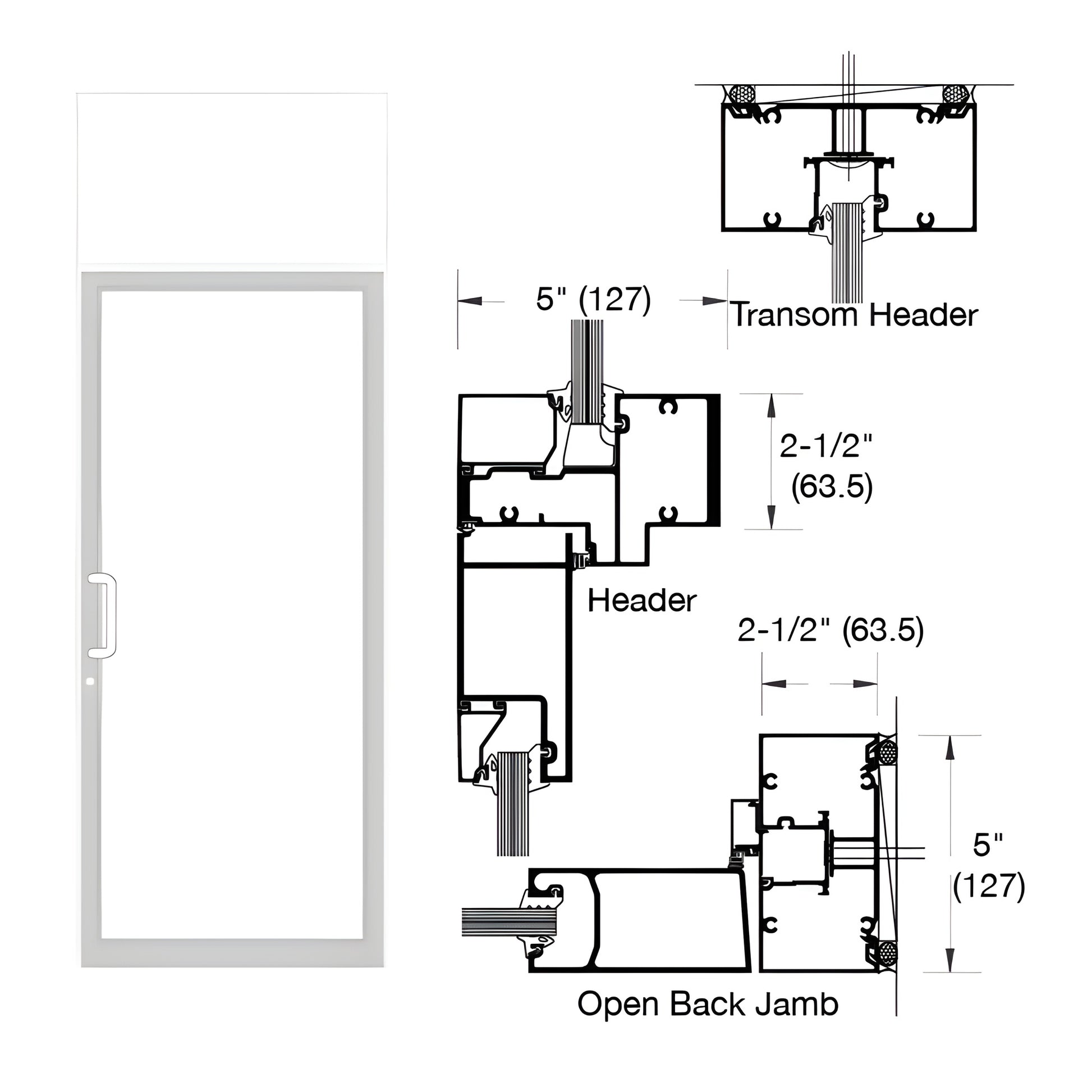

- 2-1/2" x 5" (63.5 x 127 mm) geared-hinged transom impact door frame (geared hinge not included)
This Custom Single Transom Door Frame (SKU: 0F61852) is engineered for hurricane impact installations and accepts single geared-hinged hurricane impact doors using 9/16" (14 mm) laminated impact glazing. Frame components are constructed with IG526/IG147/IG146 door jambs, IG567/IG563 header, IG526 transom header, and TH811 air threshold. Hardware preparations include geared-hinge provisions and a standard deadbolt strike—designed to meet wind- and impact-resistant applications.
When installing hurricane impact products, always refer to FPA guidelines.
Order this hurricane impact transom door frame or contact CRL Customer Service for customization and shipping details.
Specifications
