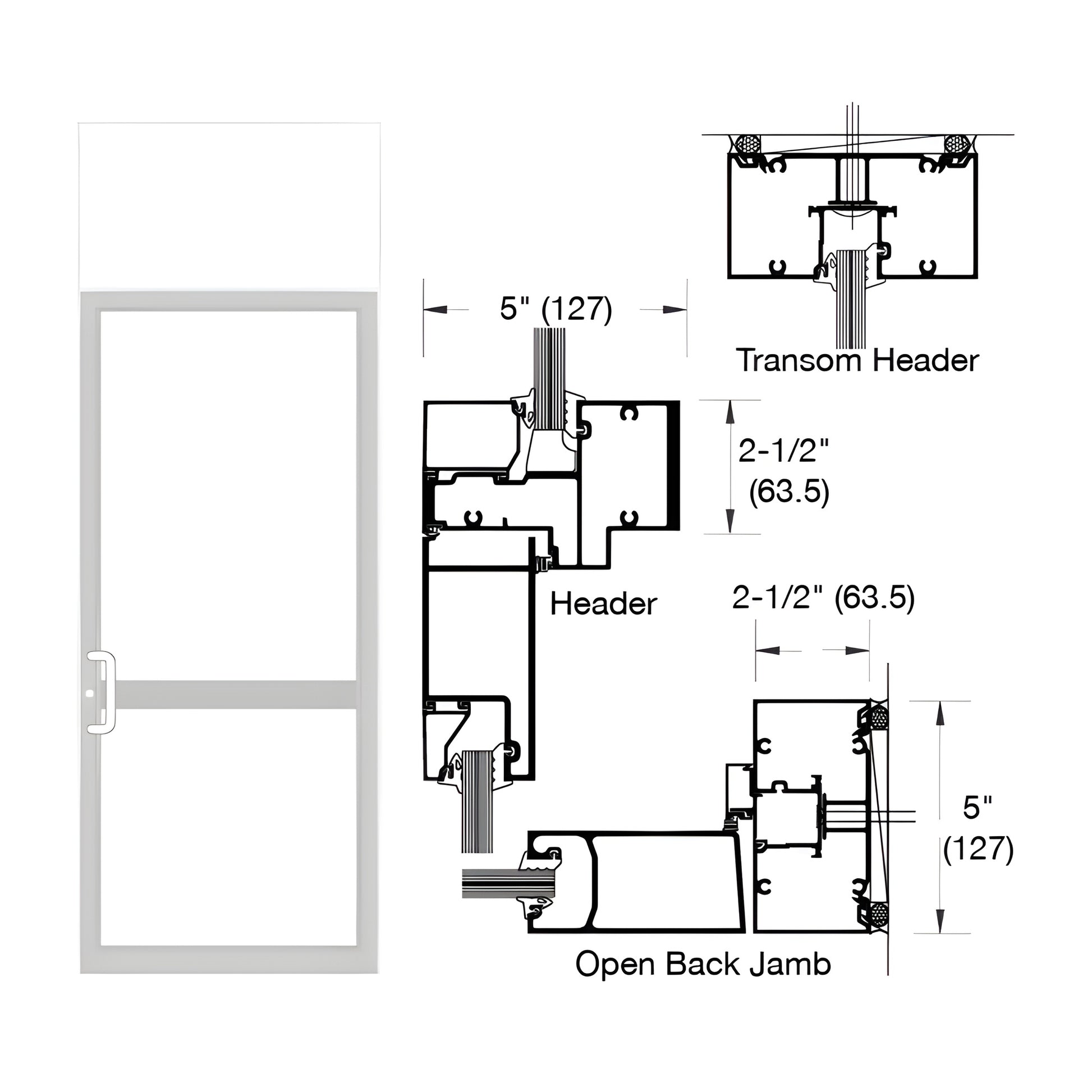

• White Kynar hurricane impact transom door frame SKU 0P61852 with 2-1/2" transom, 5" header and air-resistant threshold
1 1

CRL

CRL-U.S. Aluminum IG500 White KYNAR® Transom Frame for Geared Hinge

CRL-U.S. Aluminum IG500 White KYNAR® Transom Frame for Geared Hinge

$2,749.61 CAD
$2,749.61 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P61852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • Includes Air Resistant Threshold
  • Optional Air/Water Resistant Threshold
  • Prepped for Standard CVR Strike

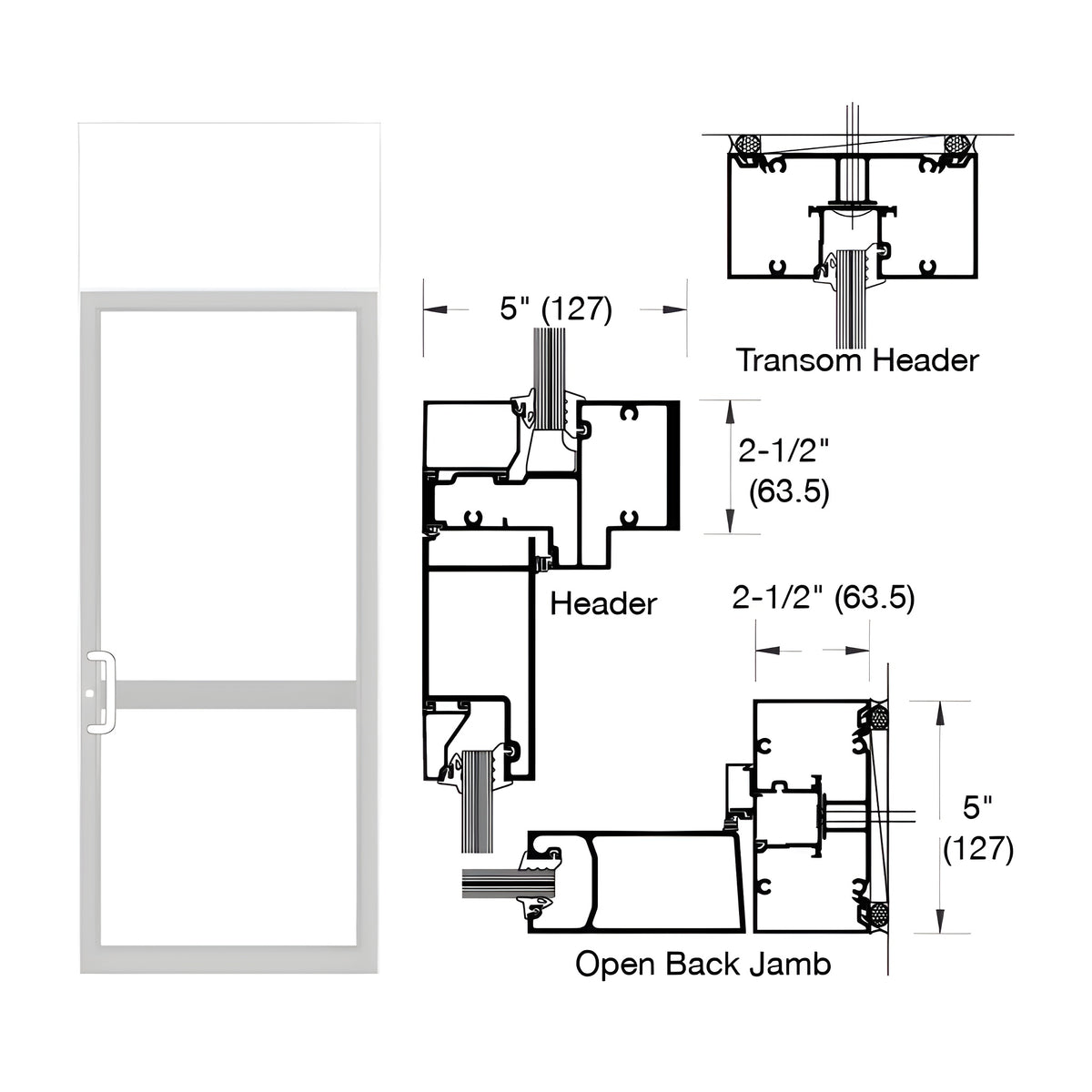

  • 2-1/2" x 5" (63.5 x 127 mm) Geared Hinged Transom Impact Door Frame for Surface Closer (Geared Hinge not Included)

This Custom Transom Door Frame (SKU: 0P61852) is engineered for hurricane impact applications and designed to accommodate a single geared-hinged CVR panic impact door with 9/16" (14 mm) laminated impact glazing for a surface-mount closer. Constructed from durable extrusions—IG526 door jambs, IG526/IG100 header, IG046/IG047 with NP801 door stop, IG567/IG563 header, IG2526 transom header—and TH811 air threshold. Hardware preparations include geared-hinge locations and a standard CVR strike.

Key differentiators: custom-fit hurricane impact transom frame, prepped for CVR strikes, built-in air resistant threshold with optional air/water resistant upgrade, and compatibility with surface mount closers.

When installing hurricane impact products, always refer to FPA Guidelines.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Order or request a quote for SKU 0P61852 today.
